OcRam - Passages plugin (MZ/MV)

OcRam · 2017-12-04T06:01:32+0900

Introduction This plugin uses region IDs to determine a player 'floor level'. Even autotiles can be drawn ABOVE players (if player is on lower ground). I have tried to find this type of plugin for a long time, then decided to code one my self. I know you can use different tilesets or events to accomplish this, but this saves a lot of tiles in my tilesets. And no more event switches to toggle higher / lower ground. Use event comments or to assign event floor level. If autotiles A3 (roofs) or A4 (walltop) tiles are used "Auto-assign" (no comments found) will assign the event to higher floor level, else event is assigned to lower floor level. Also works (for example) with "OcRam_Local_Coop" and Yanfly engine -plugins (no issues known). ps. You can use this plugin indoors as door passages also (shown later). Here's what you need: "OcRam_Passages" -plugin Mark regions RegionID 16 = Underpassage (this will set player to lower ground) RegionID 17 = Overpassage (this will set player to higher ground, also draws B-E layers) RegionID 18 = Cover tile for tiles B-E (transparent background) RegionID 19 = Autotile Cover for A tiles (opaque background) RegionID 20 = Always block passage (for blocking ie. door way sides) RegionID 21 = Block passage AND draw tiles ABOVE, if on lower floor RegionID 22 = Block passage to underpassage region (can be used to fix RMMV core "bug" where passable tile, like "bush", allows passage over cliffs) Spoiler: Example outdoors Credits to PandaMaru for bridge tiles. Spoiler: Example indoors 3. Try it Spoiler: Video on YouTube (tutorial and demonstration) All OcRam -plugins now available at ocram-codes.net Please read: Terms of Use Latest version: Download from here All my plugins: Check 'em out! My (long-term) project Attachments ocram_core.png 168 KB · Views: 949 layers_passages.png 203.9 KB · Views: 801

● ARCHIVED · READ-ONLY

Started by OcRam Dec 3, 2017, 09:01 PM 528 posts Page 19 of 27 View original ↗

CloudzChow

#362 Oct 2, 2020, 04:05 PM Source

OcRam said:
Thank you all for your messages I have been busy with my RMMZ demo -project, but now that I got it done I'll take a some time to MV again.

To take a look at compatibility issues I'll need download link to plugin which needs to be fixed. Usually fixes ain't that hard to do, but if it's too much work (more than 4 - 6 hours) I prefer to focus on MZ.

@CloudzChow try to put <lower> comment on event (make sure it's on active page)

Ok! I'll try it out! And what do you mean by active page?
OcRam

#363 Oct 2, 2020, 04:32 PM Source

CloudzChow said:
Ok! I'll try it out! And what do you mean by active page?
By active page I mean the event page that fills all conditions with greatest index. And if event needs to be forced to lower floor level in all pages then <lower> comment must be in all pages.
ShadowDragon

#364 Oct 4, 2020, 09:26 AM Source

While it's a been a while, I need to update the plugin to the latest, but also
have a minor question.

if the plugin is updates, it is also in the demo updated?
OcRam

#365 Oct 4, 2020, 09:29 AM Source

ShadowDragon said:
While it's a been a while, I need to update the plugin to the latest, but also
have a minor question.

if the plugin is updates, it is also in the demo updated?
Thank you for reminding me to update demo also ;p

So answer for your question is nope. Demo -project might have older version of some plugins than in plugin list.
CloudzChow

#366 Oct 18, 2020, 02:44 PM Source

OcRam said:
By active page I mean the event page that fills all conditions with greatest index. And if event needs to be forced to lower floor level in all pages then <lower> comment must be in all pages.
Thanks! It's now working like a charm ^w^/
Warpholomey

#367 Oct 31, 2020, 06:27 PM Source

@OcRam Hi! I guess I found an interesting bug.

Engine version — MV 1.6.2, plugin version — 4.10.

Setup:
1) Two maps, connected with transfer event.
2) Player starts on first map.
3) Second map contains event with "same as character" priority, so it would block passage through it.
4) This event also have <higher> comment so the player will pass under it.

Expected behavior:
1) Start game, go to the menu and save (important), transfer to the second map.
2) The player's character can go under the event with a comment.

Actual behavior:
The event blocks the passage, as if it were on the same level as player.

Everything works as it should, if you don't save the game first!

I attach an archive with an example where the bug is reproduced (there are no /img/ and /audio/ folders in the archive).

Warpholomey

#368 Oct 31, 2020, 07:39 PM Source

I did a bit of debugging.

I'm sure this happening because we are writing the variables _passageHigh and _passageLow to $gameSystem before saving:

JavaScript:

// Save passages data
this.extend(Game_System, "onBeforeSave", function () {
    this.savePassageData(); _this["Game_System_onBeforeSave"].apply(this, arguments);
});

…but not clearing them after saving (as we do when starting the map / loading game):

JavaScript:

// Refresh tiles on scene changes
this.extend(Scene_Map, "start", function () {
    _this["Scene_Map_start"].apply(this, arguments);
    if (SceneManager._scene) {
        if (SceneManager._scene._mapFusion) {
            if (!SceneManager._scene._spriteset) {
                SceneManager._scene._spriteset = SceneManager._scene._mapFusion._spriteset;
            }
        }
    } initSprites(); // <--- Here we call loadPassageData inside initSprites!
});

…

this.extend(Game_System, "onAfterLoad", function () {
    this.loadPassageData(); _this["Game_System_onAfterLoad"].apply(this, arguments);
});

Therefore, the wrong parameters is loaded on map transition.

It can be fixed, for example, like this:

JavaScript:

    this.extend(Scene_Save, "onSaveSuccess", function () {
        $gameSystem.clearPassageData(); _this["Scene_Save_onSaveSuccess"].apply(this, arguments);
    });

    this.extend(Scene_Save, "onSaveFailure", function () {
        $gameSystem.clearPassageData(); _this["Scene_Save_onSaveFailure"].apply(this, arguments);
    });

    Game_System.prototype.clearPassageData = function() {
        this._passageHigh = []; this._passageLow = [];
    }

OcRam

#369 Nov 1, 2020, 09:22 AM Source

Warpholomey said:

I did a bit of debugging.

I'm sure this happening because we are writing the variables _passageHigh and _passageLow to $gameSystem before saving:

JavaScript:

// Save passages data
this.extend(Game_System, "onBeforeSave", function () {
    this.savePassageData(); _this["Game_System_onBeforeSave"].apply(this, arguments);
});

…but not clearing them after saving (as we do when starting the map / loading game):

JavaScript:

// Refresh tiles on scene changes
this.extend(Scene_Map, "start", function () {
    _this["Scene_Map_start"].apply(this, arguments);
    if (SceneManager._scene) {
        if (SceneManager._scene._mapFusion) {
            if (!SceneManager._scene._spriteset) {
                SceneManager._scene._spriteset = SceneManager._scene._mapFusion._spriteset;
            }
        }
    } initSprites(); // <--- Here we call loadPassageData inside initSprites!
});

…

this.extend(Game_System, "onAfterLoad", function () {
    this.loadPassageData(); _this["Game_System_onAfterLoad"].apply(this, arguments);
});

Therefore, the wrong parameters is loaded on map transition.

It can be fixed, for example, like this:

JavaScript:

    this.extend(Scene_Save, "onSaveSuccess", function () {
        $gameSystem.clearPassageData(); _this["Scene_Save_onSaveSuccess"].apply(this, arguments);
    });

    this.extend(Scene_Save, "onSaveFailure", function () {
        $gameSystem.clearPassageData(); _this["Scene_Save_onSaveFailure"].apply(this, arguments);
    });

    Game_System.prototype.clearPassageData = function() {
        this._passageHigh = []; this._passageLow = [];
    }

Thank you for the report and fix for it @Warpholomey !

I can confirm the bug AND fix for it GJ!

I have now uploaded v4.11 where the bug fix is and credited you in it.

clitvin

#370 Feb 11, 2021, 05:42 PM Source

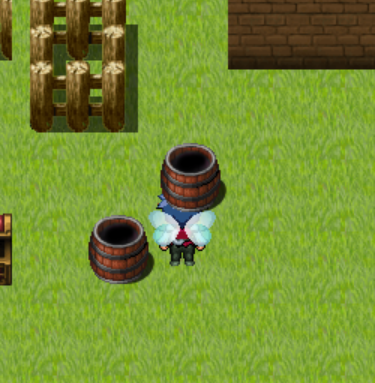

Anyone know how to solve this issue: When placing new events with spawn event the events draw overtop of the character (but pathing and interacting with them is normal). If I leave the map and come back the events are normal, Is there a way to force event refresh or map refresh when placing new events? It seems as tho the plugin is unaware that a new event spawned and doesn't know to refresh.
OcRam

#371 Feb 11, 2021, 06:18 PM Source

clitvin said:
Anyone know how to solve this issue: When placing new events with spawn event the events draw overtop of the character (but pathing and interacting with them is normal). If I leave the map and come back the events are normal, Is there a way to force event refresh or map refresh when placing new events? It seems as tho the plugin is unaware that a new event spawned and doesn't know to refresh.

View attachment 179164
Thank you for the message,

I can recall few cases same as this one and solution was to force spawned event to lower floor level. Example: event._higherLevel = false;

One solution was to put <lower> event comment to each page in spawned event to force it to lower floor level.

But above methods doesn't consider if event is spawned to higher floor level...

On map start plugin iterates through all events and calls autoAssign() method for each event. This can be also called after spawning event.
clitvin

#372 Feb 11, 2021, 06:57 PM Source

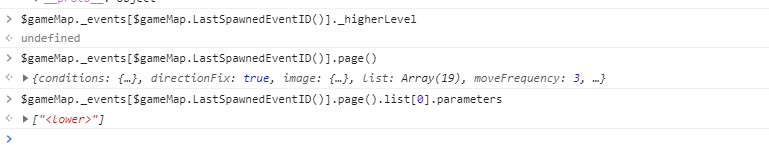

Doesn't seem to work even tho you can see its set to lower:
OcRam

#373 Feb 11, 2021, 07:00 PM Source

clitvin said:
Doesn't seem to work even tho you can see its set to lower:
View attachment 179172
Ok then try:
$gameMap._events[$gameMap.LastSpawnedEventID()]._higherLevel = true;
After spawning an event.

EDIT: _higherLevel = false;
clitvin

#374 Feb 11, 2021, 07:29 PM Source

OcRam said:
Ok then try:
$gameMap._events[$gameMap.LastSpawnedEventID()]._higherLevel = true;
After spawning an event.

EDIT: _higherLevel = false;
Doesn't seem to work. Even if this bool is set it is still drawing above the player unless I leave the map and come back.
OcRam

#375 Feb 11, 2021, 07:31 PM Source

clitvin said:
Doesn't seem to work. Even if this bool is set it is still drawing above the player unless I leave the map and come back.
What about?
$gameMap._events[$gameMap.LastSpawnedEventID()].autoAssign();

Edit: Sorry remembered wrong.... put this at the end of passages -plugin.
// Some code here... Game_CharacterBase.prototype.autoAssign = function () { this._higherLevel = autoAssignFloorLevel(this); updateEvent(this); }; }.bind(OcRam.Passages)()); // End of file

I will add this to next version to call autoAssign method from any character.
clitvin

#376 Feb 11, 2021, 08:00 PM Source

OcRam said:
What about?
$gameMap._events[$gameMap.LastSpawnedEventID()].autoAssign();

Edit: Sorry remembered wrong.... put this at the end of passages -plugin.
// Some code here... Game_CharacterBase.prototype.autoAssign = function () { this._higherLevel = autoAssignFloorLevel(this); updateEvent(this); }; }.bind(OcRam.Passages)()); // End of file

I will add this to next version to call autoAssign method from any character.
Yep, This works.
DragonVine

#377 Mar 6, 2021, 09:35 PM Source

Hey @OcRam - I love the passages plugin, but I'm having issues with one small thing, and I was wondering if there was a fix for it. When I set it up for the character to be able to walk near the walls as seen in the screenshots, it seems to shift a pixel from the wall downward. It is entirely possible I have something setup incorrectly, but I'm wondering if there is a way to fix this? Thank you for the continued support on this plugin and all the work you do. I'll likely be buying a commercial license at some point, even if I don't sell the game because I like the work you are doing so much.
OcRam

#378 Mar 7, 2021, 04:59 AM Source

DragonVine said:
Hey @OcRam - I love the passages plugin, but I'm having issues with one small thing, and I was wondering if there was a fix for it. When I set it up for the character to be able to walk near the walls as seen in the screenshots, it seems to shift a pixel from the wall downward. It is entirely possible I have something setup incorrectly, but I'm wondering if there is a way to fix this? Thank you for the continued support on this plugin and all the work you do. I'll likely be buying a commercial license at some point, even if I don't sell the game because I like the work you are doing so much.

View attachment 182060 View attachment 182061
Thank you for the message,

Which version you are using? As far as I remember this was fixed in some version for MV and never even existed in MZ?

If you are using latest version can you replicate that in new project?
DragonVine

#379 Mar 7, 2021, 11:44 AM Source

OcRam said:
Thank you for the message,

Which version you are using? As far as I remember this was fixed in some version for MV and never even existed in MZ?

If you are using latest version can you replicate that in new project?
Hi! I am using MV, and it's the latest version. I am also using the latest version of the plugin. 1.62 of MV, and 4.11 of the plugin for MV, which is the version in the first post on this thread.

I haven't been able to recreate it in a new project, so I'm thinking it's a plugin in mine. I am going to test further to see which plugin is causing the problem and I'll let you know a bit later today.

Thank you for the help!

EDIT: Well, that was quick to figure out. The plugin causing the issue is Galv's Camera Control.
MV Cam Control
OcRam

#380 Mar 7, 2021, 01:02 PM Source

DragonVine said:
Hi! I am using MV, and it's the latest version. I am also using the latest version of the plugin. 1.62 of MV, and 4.11 of the plugin for MV, which is the version in the first post on this thread.

I haven't been able to recreate it in a new project, so I'm thinking it's a plugin in mine. I am going to test further to see which plugin is causing the problem and I'll let you know a bit later today.

Thank you for the help!

EDIT: Well, that was quick to figure out. The plugin causing the issue is Galv's Camera Control.
MV Cam Control
Thank you for the message,

If I recall it correctly... Galv Cam control should be supported... Just try to place Passages after Galv CC (or other way around not sure how it was :)).
DragonVine

#381 Mar 7, 2021, 01:47 PM Source

OcRam said:
Thank you for the message,

If I recall it correctly... Galv Cam control should be supported... Just try to place Passages after Galv CC (or other way around not sure how it was :)).
I've moved it around a bit, putting it under and above the Passages plugins, but this is what happens in either case:

[embedded media]
