YEP Battle Status Window Extension

DreamX · 2016-07-19T09:30:12+0900

This is an extension plugin for YEP Battle Status Window by Yanfly. This plugin adds several parameters to customize the battle hud. I'm also very open to adding more options based on feedback. This plugin is used best when you know some javascript, so try asking here or in the help sections for javascript to learn more if you need to. Example I did using the parameters and some javascript: * ============================================================================ * Actor Notetags * ============================================================================ * will hide the hp gauge from the battle status window * for the actor. * * will hide the mp gauge from the battle status window * for the actor. * * will hide the tp gauge from the battle status window * for the actor. * * will hide the tp gauge from the battle status window * for the actor. * * will use x as the actor's picture. See parameters. * ============================================================================ * Tips * ============================================================================ * Other Yanfly plugins like Core Engine, Buffs State Core and of course * Battle Status will change how the battle hud looks like. Also look at those * parameters to customize your hud. * * The rect variable refers to the entire rectangle. It's best to use this * instead of basicAreaRect, gaugeRect etc if you want to change positioning. * ============================================================================ * DreamX Setup Suggestion Parameter Info * ============================================================================ * This parameter sets up the hud similar to my example screenshot. * It overrides parameters for these things: * * Face X, Width, Height * Gauge/Name X, Width * * Name Y * HP Gauge Y * MP Gauge Y * * Icons X, Y * * Name Alignment * * Adjust Columns set to true in YEP Battle Status Window * * Therefore, you can still use the other parameters to your liking to * customize further. * * You can also of course individually use the functions provided by this * plugin. * ============================================================================ * Terms Of Use * ============================================================================ * Free to use and modify for commercial and noncommercial games, with credit. * ============================================================================ * Credits * ============================================================================ * DreamX * Yanfly for YEP Battle Status Window Script

● ARCHIVED · READ-ONLY

Started by DreamX Jul 19, 2016, 12:30 AM 218 posts Page 7 of 11 View original ↗

DreamX

#121 Oct 31, 2016, 12:06 AM Source

@Necro Alright let me know if you run into any other problems.
masterlobo

#122 Nov 1, 2016, 05:37 AM Source

DreamX said:
The opacity of party and actor command windows already added

v1.6:

Added dim window parameter options (you should also set the opacity of the windows to 0 probably) @BloodletterQ

Added parameters for functionality of directional and cancel buttons @masterlobo

Your new params for functionality of directional and cancel buttons worked wonders.

Thanks a lot!
masterlobo

#123 Nov 3, 2016, 05:43 AM Source

Is there a plugin command to change the number of Actor Command Visible Rows?
DreamX

#124 Nov 3, 2016, 05:56 AM Source

masterlobo said:
Is there a plugin command to change the number of Actor Command Visible Rows?

Set the value of that parameter to a script.

example using variable id 4:

$gameVariables.value(4)

That said, it may not change mid-battle.
masterlobo

#125 Nov 4, 2016, 05:42 AM Source

DreamX said:
Set the value of that parameter to a script.

example using variable id 4:

$gameVariables.value(4)

This is exactly what I needed :D
WookieeChan

#126 Nov 12, 2016, 03:35 AM Source

i did an admittedly horrible job skimming if someone asked this, if they did i am sorry for the repeat. how do i get red of the border around the select screen on the left?
http://imgur.com/83sCBpR

also is there a way to make that grey icon box less "grey icon boxy?"
DreamX

#127 Nov 12, 2016, 03:42 AM Source

Wookiee420 said:
i did an admittedly horrible job skimming if someone asked this, if they did i am sorry for the repeat. how do i get red of the border around the select screen on the left?
http://imgur.com/83sCBpR

also is there a way to make that grey icon box less "grey icon boxy?"

If I'm understanding correctly, you want to get rid of the border around the actor command window. If so, set the opacity of the actor command window to 0 in the parameters.

Yanfly Battle Status Window has a parameter that allows you to choose the icon that appears when no action is selected for an actor.
WookieeChan

#128 Nov 12, 2016, 03:42 AM Source

thank you
Darthcourt

#129 Nov 16, 2016, 02:08 AM Source

Spoiler

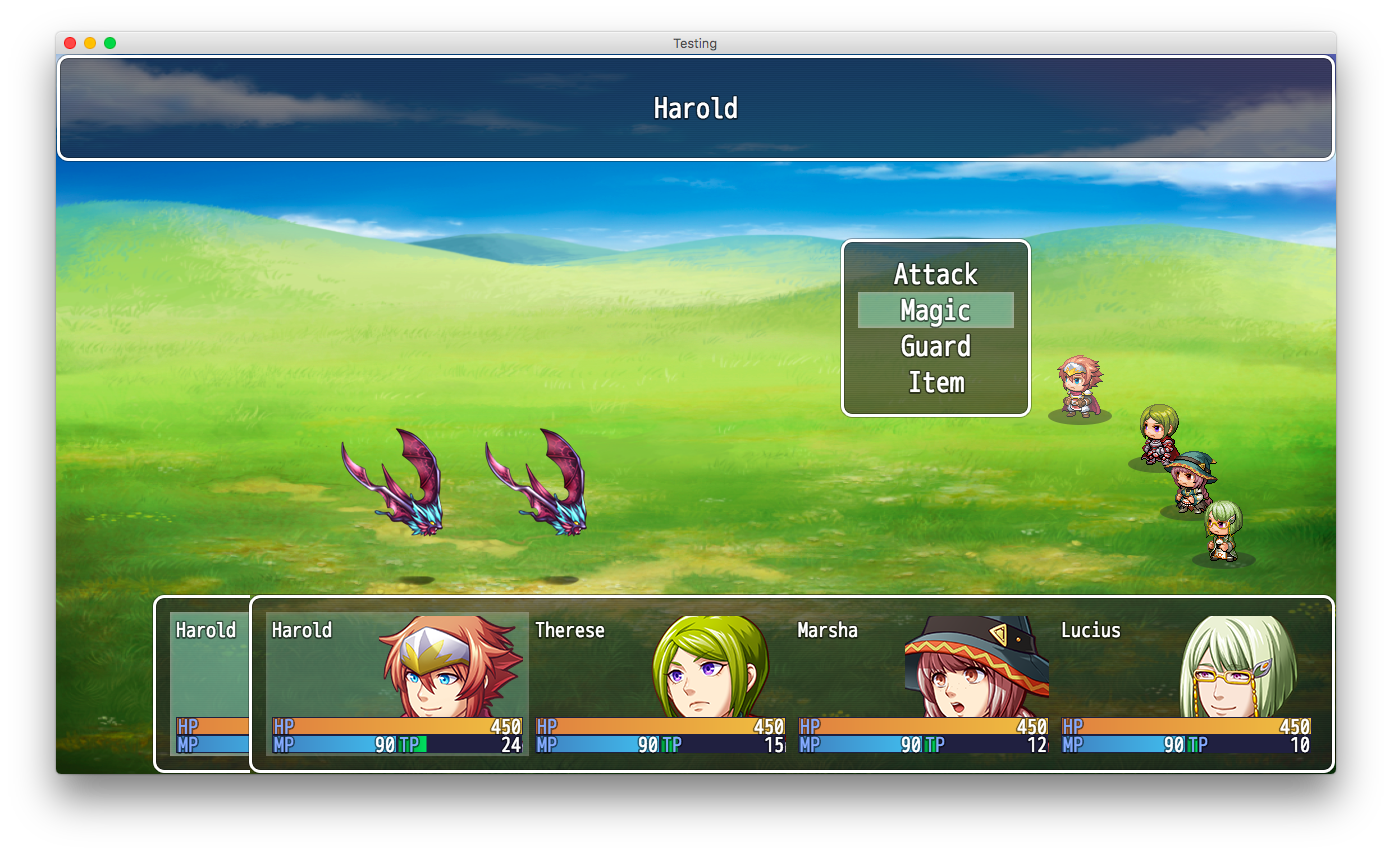

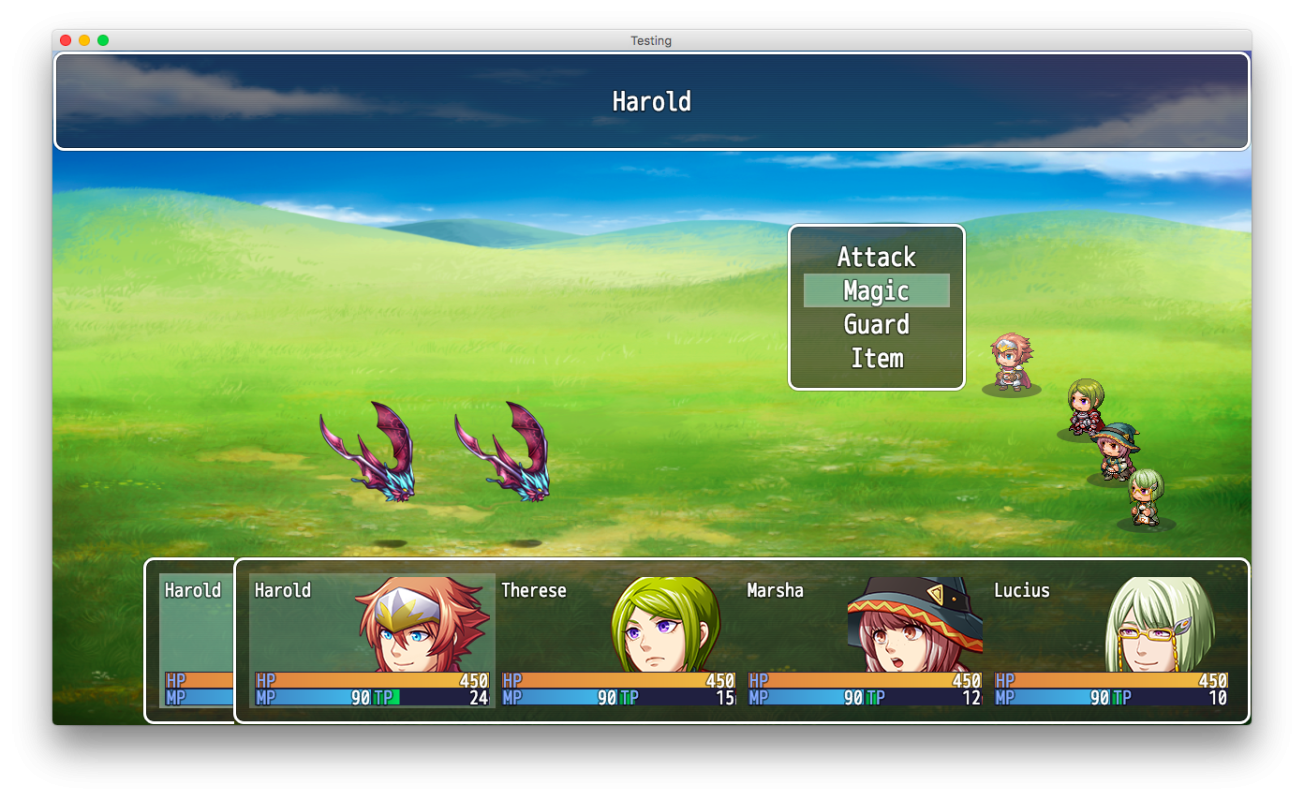

Has anyone else noticed problems with the Battle Actor Menu not following with the adjusted x or y position of the Battle Status window?

I adjusted the Battle Status Input X and Battle Status Action X parameters to "(Graphics.boxWidth / 2) - (SceneManager._scene._statusWindow.width / 2)", however it's still locked to the bottom right hand corner when I need to select a Hero.

Only hint at resolution I've had was this post from @DreamX to Kovak who had similar problems with Victor's Battle Status Window. I tried using his plugin snippet, adjusted to work with Window_BattleStatus instead of Window_CustomBattleStatus, but it still didn't work.

Thanks in advance for the support.
YoraeRasante

#130 Nov 16, 2016, 09:03 AM Source

Are you using any plugin besides the two of this thread to affect how it works?

Because in my game the battle actor menu is being the battle status window...
Darthcourt

#131 Nov 16, 2016, 04:56 PM Source

Waterguy said:
Are you using any plugin besides the two of this thread to affect how it works?

Because in my game the battle actor menu is being the battle status window...

I tested it with no plugins other than the ones needed for Yanfly's Battle Status window and it's still coming up off-center. The only changes I've made to the parameters were lock the location of the Actor Command menu to their battler sprite, and to center the Battle Status window. Is there a parameter that I'm missing to move the Battle Actor menu?

I'll show any of the edited parameters if you need. Thanks again.

Spoiler
DreamX

#132 Nov 16, 2016, 11:16 PM Source

@Darthcourt

I'm going to ask you to do this:

1. Download this

2. Upgrade it to 1.3.1

3. Recreate the problem in as few steps as possible

4. Upload to dropbox.com and post the link
Darthcourt

#133 Nov 17, 2016, 02:22 AM Source

@DreamX

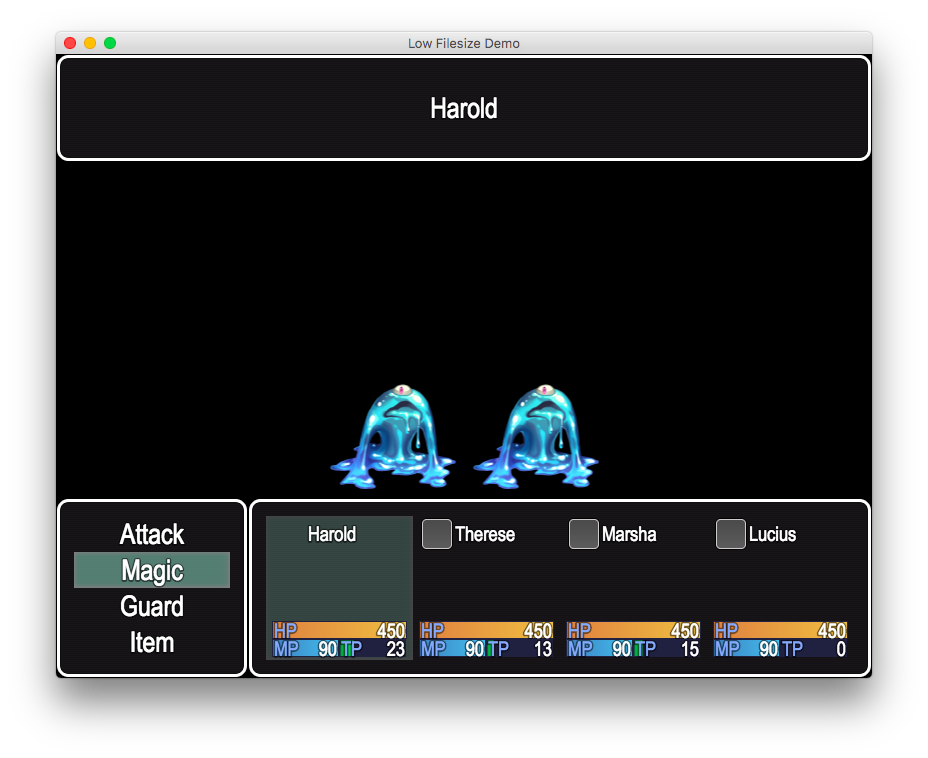

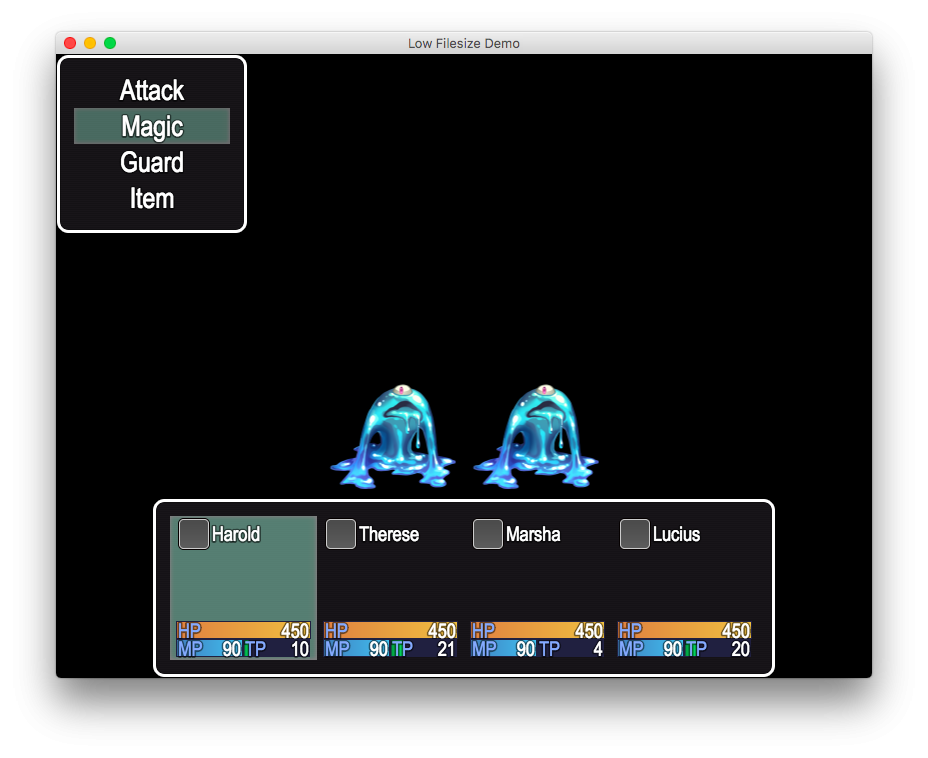

Here is the Demo you asked for. For testing purposes I adjusted the Battle Status Input X and Battle Status Action X parameters to (Graphics.boxWidth / 2) - (SceneManager._scene._statusWindow.width / 2). Normally this would center the status window, and would still look ok if the Actor Command window was in it's default location.

Spoiler

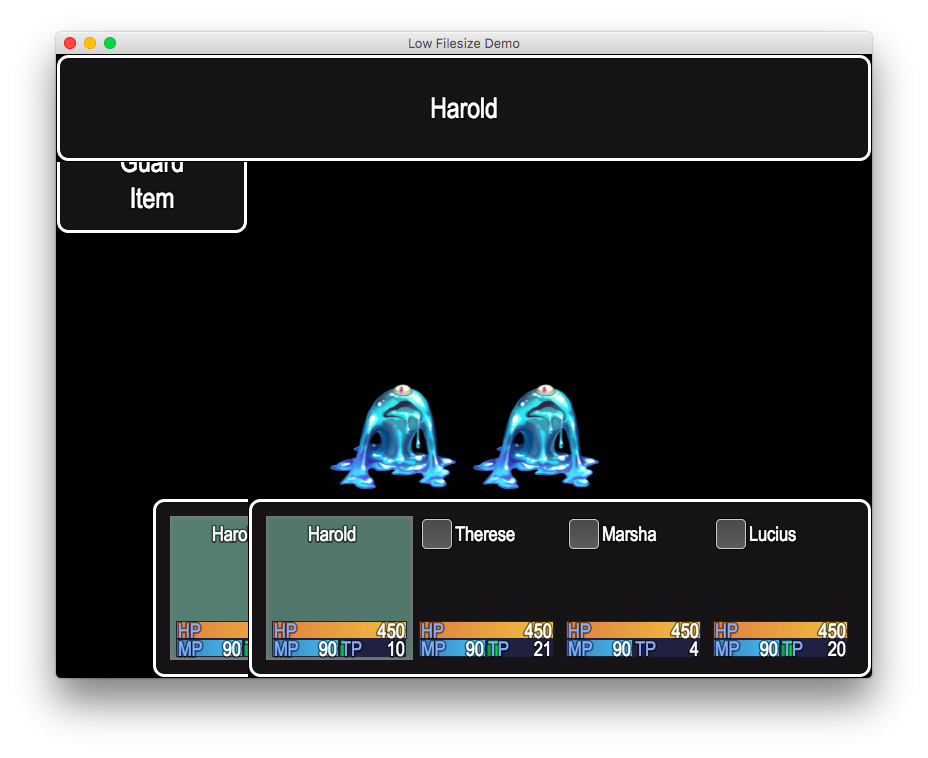

But when you move the Actor Command, for example by setting the Y coordinate to 0, it shows the original Battle Status window underneath.

Spoiler
Fasoldgames

#134 Nov 17, 2016, 11:16 AM Source

Hi,

First of all, thanks for your plugin!

Second, I have a little problem with the actor window in the front view battle system, and I am absolutely awful with programming or any kind of computer code :)

The thing is, I'm using only a single actor in my game, and during battle, the actor window stretches across the screen, with the actor's face on the far left. Could you

tell me which parameters to alter in your plugin to reduce the width of the window, and to center it with the actors face in the middle?

Thanks!

Update: I realize this might seem a bit lazy, but I have really tried many of the window parameters, both in the Yanfly Battle Core plugin, the Battle Status Window plugin (also from Yanfly), and this plugin. But to no avail, sadly.
Darthcourt

#135 Nov 19, 2016, 04:37 PM Source

Fasoldgames said:
Hi,

First of all, thanks for your plugin!

Second, I have a little problem with the actor window in the front view battle system, and I am absolutely awful with programming or any kind of computer code :)

The thing is, I'm using only a single actor in my game, and during battle, the actor window stretches across the screen, with the actor's face on the far left. Could you

tell me which parameters to alter in your plugin to reduce the width of the window, and to center it with the actors face in the middle?

Thanks!

Update: I realize this might seem a bit lazy, but I have really tried many of the window parameters, both in the Yanfly Battle Core plugin, the Battle Status Window plugin (also from Yanfly), and this plugin. But to no avail, sadly.

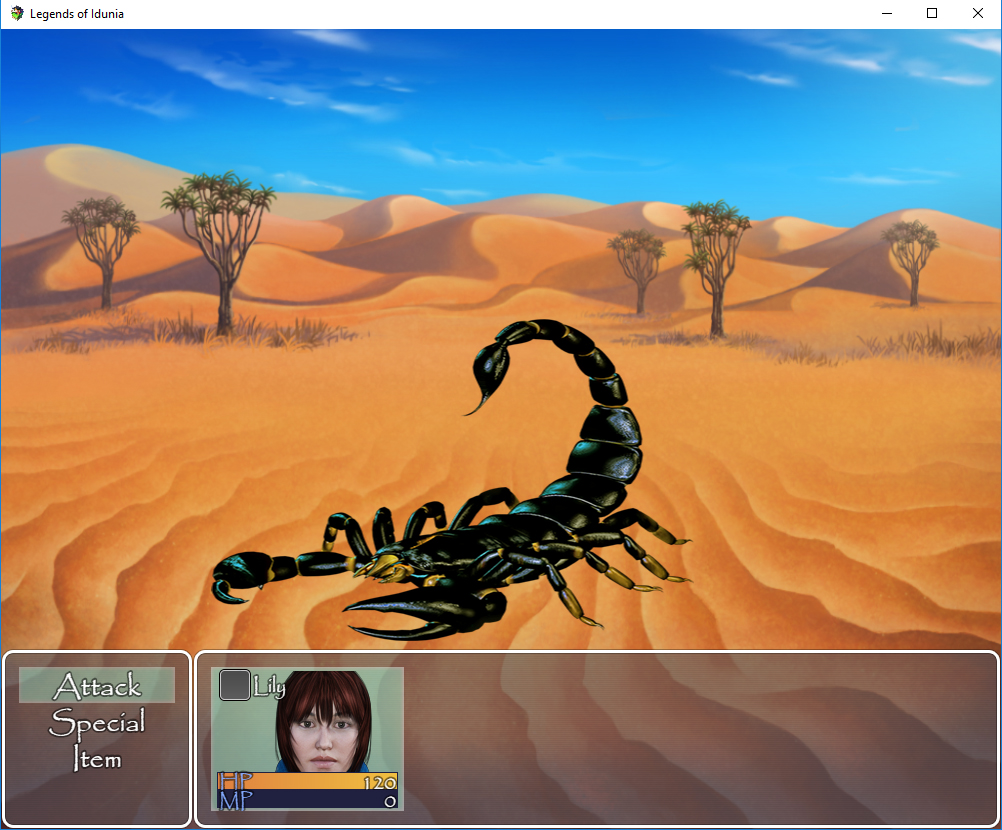

View attachment 52225

You could potentially use the same parameters that I'm using for Battle Status Action X: (Graphics.boxWidth / 2) - (SceneManager._scene._statusWindow.width / 2).

That divides the width of your game'a screen in half, and subtracts half of the width of your battle status window. The Battle Status Input X would depend on what you want to do for the Party and Actor Command windows on the left. (Center them too, move them, etc)

I have an idea how to reduce the size of your Battle Status width param, but I'm away from my computer at the moment, so I'll edit this with the info later tonight.

Full Disclaimer, however: moving the Battle Status window is how I broke the Battle Actor select window in my comment above. So I'd be aware of that if you're gonna follow my advice.

Also, I just realized I was terribly rude with my request before. Thanks a ton @DreamX for both the amazing Plugin, and for looking into my Battle Actor window woes. :D

Edit: I guess my original set up won't be of much help, however (Graphics.boxWidth - 192)/4 will reduce your Battle Status window to 1/4 of the size it is now. Sorry.
Fasoldgames

#136 Nov 20, 2016, 10:26 AM Source

Thanks! I will try it, and even if it breaks everything :) , thanks still for the help!
Darthcourt

#137 Nov 21, 2016, 02:57 AM Source

Edit: Just kidding, I thought I had solved my issue with a clever stopgap fix, but it ended up breaking the BattleActor window in a different way. Will recreate my thoughts and edit again if I figure it out. Oopsie. :|

Edit2: Ok, fixed for real this time.

Fasoldgames said:
Thanks! I will try it, and even if it breaks everything :) , thanks still for the help!

If you put the following code into a plugin that follows DreamX's, it'll correct the difference between BattleStatus and BattleActor:

Spoiler
var parameters = PluginManager.parameters('DreamX_Ext_BattleStatusCore');
var paramStatusInputX = String(parameters['Battle Status Input X']);

DreamX.Ext_BattleStatusCore.Scene_Battle_createActorWindow = Scene_Battle.prototype.createActorWindow;
Scene_Battle.prototype.createActorWindow = function () {
DreamX.Ext_BattleStatusCore.Scene_Battle_createActorWindow.call(this);
this._actorWindow.x = eval(paramStatusInputX);
};

I was able to put this together by reading through how DreamX was able to adjust the locations of the Item window. The only problem seemed to be the x position of the BattleActor window, which I believe is because of how it's created in Scene_Battle:

Spoiler
Scene_Battle.prototype.createActorWindow = function() {
this._actorWindow = new Window_BattleActor(0, this._statusWindow.y);
this._actorWindow.setHandler('ok', this.onActorOk.bind(this));
this._actorWindow.setHandler('cancel', this.onActorCancel.bind(this));
this.addWindow(this._actorWindow);
};

In particular, the arguments for "new Window_BattleActor" is supposed to assign an X and Y position, but instead only assigns Y correctly.

I've tested this snippet of a plugin, and it now adjusts the BattleActor window to wherever the BattleStatus window is. It is however only a stopgap measure, since it depends on both DreamX_Ext_BattleStatusCore, and the parameter Battle Status Input X.

Thanks to DreamX very much for such and amazing plugin nonetheless, and here's hoping that my rambling explanations help someone else down the road. :D
Fasoldgames

#138 Nov 21, 2016, 09:33 AM Source

Thanks very much! I will try it at once!
rahxephonkun

#139 Nov 23, 2016, 02:26 AM Source

HI everyone, I like this plugin but have a question...

I am trying to use the extension plugin dreamX made for yanflys battle status window plugin however it seems not to work in tandem with the skill core plugin..

see I am trying to make it so a class that only has TP has TP in the 2nd gauge and a class that only has MP has MP in the 2nd gauge and erase the 3rd gauge off both of them by using the gauge swap feature provided in yanflys skill core plugin... this is so there will be only two gauges one for HP and one for what they need to use their skills, TP or MP depending on the class, and the bottom row would be the state icons so they are not covered up by the TP gauge...

i am using this code in the TP class notetag--

<Swap Gauge 2: TP>

<Swap Gauge 3: Nothing>

and this code in the MP class notetag-

<Swap Gauge 3: Nothing>

however when I have your extension plugin disabled it works perfectly but when i activate your plugin again all 3 gauges come back everytime...

In my plugin list I have the skill core plugin toward the top under yanflys battle plugins and the battle status window and extension toward the problem... could this be the problem? they have to be in a certain order? or is your extension just not compatible with the skill cores gauge swap?

any help is appreciated...
Alchemancy

#140 Nov 23, 2016, 03:53 PM Source

Hello! I'm very sorry—novice here—but I downloaded your script extension and named it "YEP_X_BattleStatusWindow.js" I add the plugin to my game and turn it on as-is. As soon as I enter a battle in my playtest, I get the TypeError: Cannot read property 'clamp' of unidentified. What does this mean, and what do I need to adjust. Thanks in advance for your help!
