Ultra Mode 7 [RMMV & RMMZ]

I admit I don't have a lot of time (trying to race out a game demo). But that's the beauty of the Community Lights project, it's MIT licensed and anybody can add to it by submitting a pull request on the GitHub. Assuming the changes are good, it gets approved and that person's name gets added to the contributors list.

Or if you have a fix but don't want to do that, post it in the thread and one of the people who frequently updates it will add it for you. :LZSwink:

I have a github account so I can submit a pull request myself. :)

Hi bblizzard!
I spent two days looking through all the posts here, no matter how simple the questions are, you answer them one by one. You are a respectable creator!
I just want to thank you for sharing! Report some minor problems by the way.

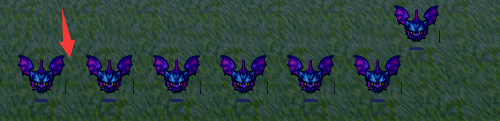

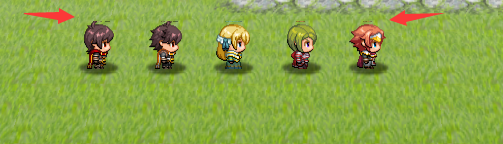

If you change these two parameters to false, these lines will appear at certain angles, about 2-3 blocks away from the sprite, or if you use the Dragonbones plugin, these lines will also appear in the team, just like this



Especially when using the pixel mobile plug-in, it is easy to find
If the parameter is set to true, there will be no. (Of course, I like false)
I am not asking you to fix it, but when I was reading the post, I found that someone also had this problem. It was just a small problem to remind people behind. I also forgot whether the previous post already has a solution
This may not be good for people who use the default material. If you make the sprite material yourself, it should be fine not to put the pixels so close.
Hope you have a happy life!

The issue is because of pixel interpolation when scaling. The pixels at the border of the sprite will interpolate with the neighboring frame's pixels. I've worked professionally in game development for almost 12 years and the only 2 solutions to this problem that I know are:

• creating a border of pixels around the frames (in your case transparent pixels)
• rendering the frame as-is on a render target and then using that render target to actually display the scaled version so the border pixels will be repeated (VRAM costly, also GPU costly for the render, actually tiled images in MV do that)

This issue actually also happens on the tiles if you look closely. I think we actually did discuss this at some point in the topic, but I perfectly understand if you don't want to go through 46 pages of text just to come to this same conclusion. xD e.g. Here is a 3x4 forest auto-tile in XP format that's forced to use in my own game because of that problem:



I'm using a 48x48 tile resolution, but I have 16 pixel border because of the potential scaling (they look very small in the distance) and because I actually use mipmapping.

I have custom Python scripts that prepare all the graphics that I need and they add that border wherever needed. IDK if you wanna do that manually of if you can find a tool that does it for you, but you adding borders if the most reliable solution. Welcome to 3D and non-pixel-perfect 2D graphics. ._.; It's a nightmare sometimes.

Yes, I thought it should be solved by transparent pixels, but I did not experiment.
Need so many transparent pixels!
If I want to pursue perfection, I do have some clumsy tools that I need to use together.
To change them is too much work for me. This is not a specialized tool like yours!
So, I gave up this idea and changed to the true parameter. In fact, there is not much loss.
Thanks for your answer

If you need to make the sprites and/or the map look blurry/blended, you could always use the Pixi Filter Controller plugin I've been using to apply such effects if needed.

Okay, thanks for your suggestion, I will take a look at how he uses it :LZSrasp:

Is there any way to download the previous releases of this plugin? :rswt2:

My project is in MV 1.5.1 and the latest release doesn't work on it.
So I've been using v1.1.0 which I downloaded ages ago.

I recently started using the plugin in my project and plan to use it for a few maps.
Example:


But after using it for a while, I realized the horizontal parallax-bg scroll issue (for non-mod 7 maps) in this version. (Which I'd really like to fix for this project.)

I realize this issue was resolved in v1.2.3
So curious if I can get my hands on that specific version. And see if it works on MV 1.5.1 and fixes my issue.

The oldest one I still have is v1.5.3 from about a year ago. :/

If you send me the files from the "js" folders except for the "plugins" sub-folder, I can take a look at it for you.

Oh wow, thank you so much. :ewat:
Here you go: (I imagine it should be fine sharing right here.)

Yeah, sharing here is fine. This is just default RMMV code after all.

EDIT: Hm, I can't reproduce the problem you're having. It works just fine in the demo with v1.5.1 base code. :/ But I did notice you put UM7 pretty high on the plugin list. Try moving it further below.

Ah... I think I may have worded myself 'technically' wrong on the issue. :rswt2: I meant to say the 'horizontal looping' of the parallax BG, in non mode7 maps. (Not exactly 'scrolling' while moving with the camera.)
Here's a video showcasing the issue:



Is this the exact problem you tried to reproduce?
(And I did try moving UM7 up and down in priority, and disabling all the rest of the plugins. No difference.)

Yup, works fine on my end. o_O https://gyazo.com/30d9007b6d31db5d64b30760ef6f1c18

If you can put together a demo with all the plugins you're using that reproduces the issue, I can look into it. I'm pretty sure some other plugin could be interfering. Though you might wanna send me that demo via PM rather than posting here (I obviously don't mind either way).

EDIT: Wait, you did update to v1.6.4, right? I don't see a lot of the newer options that were added. https://gyazo.com/441228566ae39dec0696b55c4ab59029
Once you replace the file in the plugins folder, you have to option the Plugins screen once for RMMV to update all the options and add the new ones. Maybe this is the issue you were having with the new version?

Ahhhh... this is embarrassing. :rtear:
I just did that and the latest version works now!

I initially worked with v1.1.0, later tried replacing the file with the newer version... saw it didn't work so assumed my MV 1.5.1 wasn't compatible.
The solution was simply that I had to open the plugin menu once for it to load up properly...:rswt

I'm deeply sorry for using up your time bblizzard, and I'm super grateful you were so patient and helped me through this.
Just... thank you so much!

Maybe @bblizzard should put that up as a disclaimer on the first post (if installing an "updated" plugin, always "open the Ultra Mode 7 plugin config and apply changes" and then "save your project" to avoid potential mishaps/issues), that way people don't run in to "similiar" issues that I had as well (you're not the first this has happened to @SigmaSuccour). ;)

On another note regarding background parallaxes, you could always try using a parallax/layer plugin like Galv's Layer Graphics plugin. I've been using their plugin because it allows for multiple layers with more refined control over how they move/appear (can be used for fog effects, water, even clouds to "hide" the horizon edge of the map). The only two issues with it is that it "resets" the layers on looped maps when you move past the edges of the map and because Galv didn't add a config function to select the "folder" you want to load the layer/parallax graphics from, you'll need to modify the plugin directly to redirect which folder the plugin accesses the images (if you're using v2.0, it should be located on line 225 under "LAYER GRAPHIC FOLDER").

Hm, I thought I added it in the notes. I'll add it in a few places to make sure people see it.

@SigmaSuccour No problem, it happens. :)

EDIT: Added it in both the compatibility notes and the FAQ section.

Hi bblizzard!
Is it possible to provide compatibility for OcRam-Lights plugin in the future?
His lighting combines a time system, an automatic weather system, and a parallax layer. Really convenient:LZSyum:

If you make a demo with both plugins, I can take a look at it.

Okay, I added it to the Ultra Mode 7 demo! Demo

Alright, added it in v1.7.0. There are some issues in the OcRam Lights plugins and I had to think hard about how to properly do the workarounds to make it work. >.< But I managed to do it in the end.
