MV - SRPG Engine MV - Plugins for creating Tactical Battle System

RyanBram · 2019-06-25T20:40:35+0900

Introducing credits : Gakuto Mikagami, Doctor_Q https://github.com/Echizen-ham/SRPGcore https://github.com/RyanBram/SRPGcore Hi, everyone. Do you like Turn Based Strategy RPG games? If so, then I'm also like it so much just like you. Therefore, on this occasion, let me introduce a collection of plugins called SRPG_Converter. As the name implies, these plugins will change the RPG Maker MV engine that you have as an editor for Turn Based Strategy genre games like Fire Emblems or Shining Force. DOWNLOAD Core Plugins (Latest update) Extension list Doctor_Q SRPG extension Dopan SRPG extension Boomy SRPG extension Shoukang SRPG extension Demo (v1.18 - updated on July 1st, 2019) Enjoy three chapters of story (^_^) Latest Demo (v1.32Q - updated on November 15th 2020) Feel the brand new Dynamic Action (^_^) Shoukang's Demo The following are the features of these plugins: Provides feature complete of basic SRPG engine. Only one plugin then you can watch your RPG Maker MV turn into a Turn Based Strategy engine; High compatibility with any plugins. There are almost no RPG Maker MV Core function that was altered, so you can still use RPG Maker MV and your favorite plugins as usual; Easy to customize. Every character, weapon, skill, or class can be customized using note tag; Turn based events trigger. Enjoy rich story customization, by choosing any event to trigger at the moments: Start of Battle, Start of Actor Phase, Start of Enemy Phase, End of Turn, Start of Action, and End of Action, Can be extended with extension. If you know can write Javascript plugin, you can easily add features that are not yet available. Let us know if you made public extension; Royalty free for commercial purposes. With the MIT license, anyone can use this plugin without worrying about legal issues. As long as you comply with the provisions of the MIT license, this plugin can be used for any purpose. Making the SRPG Engine is a complex thing, even comparable to making a new engine that is equivalent to the RPG Maker MV Core scripts itself. Before I introduce this system to this forum, I am using this plugin internally for my own projects. I don't want to become the only one who get the benefits of this plugin, which become the reason I translated it and share it to this forum. New feature: On map battle as part of core plugin. SRPG_AgiAttackPlus, SRPG_UncounterableAttack, and SRPGconverter_with_YEP_BattleEngineCore now become part of core plugin. DynamicAction for performing action sequence in both Sideview battle and Mapview battle. Mouse System as alternative to control your game without using keyboard at all. Planned feature: (Please suggest it) Since the era of RPG Maker XP, I have never seen a SRPG system that is truly complete. There are at least two possibilities for that: 1) Kadokawa had already made a new version of RPG Maker before the SRPG System was completed, or 2) The creator of the SRPG System was busy or had other interests that caused the project to be abandoned. Then I decided to offer myself to the author by helping him pushing the system forward, because I am afraid I never see this system finish before being abandoned again. If you are a Javascript programmer, you can always help by creating extension for this system. Best regards Ryan Author: Gakuto Mikagami, Doktor_Q, RyanBram Translation: Me (RyanBram) License: MIT Non-commercial use: free Commercial use: free Redistribution: OK Editing: OK Redistribution after editing: OK Series: RPG Maker MV Special Thanks: Dopan and Boomy for endless support for the community

● ARCHIVED · READ-ONLY

Started by RyanBram Jun 25, 2019, 11:40 AM 3313 posts Page 83 of 166 View original ↗

Boyboy180

#1641 Jul 3, 2021, 02:57 PM Source

boomy said:

Replace onTurnEnd function in srpgCore.js with the following code:

Code:

    var _SRPG_Game_Battler_onTurnEnd = Game_Battler.prototype.onTurnEnd;
    Game_Battler.prototype.onTurnEnd = function () {
        if ($gameSystem.isSRPGMode() == true) {
            this.regenerateAll();
            this.updateSrpgStateTurns(2);
            this.updateBuffTurns();
            this.removeStatesAuto(2);
            this.removeBuffsAuto();
            this.clearResult();
            this.setSrpgTurnEnd(false);
            //Buff & States Core Fix
            if (Imported.YEP_BuffsStatesCore !== undefined) {
                if (Imported.YEP_BuffsStatesCore) {
                    if (this.meetTurnEndStateEffectsConditions()) this.onTurnEndStateEffects();
                }
            }
        } else {
            return _SRPG_Game_Battler_onTurnEnd.call(this);
        }
    };

Thanks for this but it still doesn't work properly. Do I need to do something special to import buffs and states core (I looked at yanfly's other pluggins to try to understand how importing works but still don't quite get it)

Edit: That's not it. It has imported, I added a console log just before the check for conditions and that runs, it's just the turn end states still don't trigger.

Adra

#1642 Jul 3, 2021, 10:14 PM Source
boomy said:
Whoops
I fixed the problem
I forgot that srpgCore already aliases srpgBattleStart (mapBattle) so my alias to srpgBattleStart makes the game ignore the mapBattle version of srpgBattleStart
I did a proper test and should work now. <mapBattle:true> = normal map battle animation, <mapBattle:false> = regular srpg battle animation and <AoEAnimation> = group battle animation

Replace onTurnEnd function in srpgCore.js with the following code:

Code:
var _SRPG_Game_Battler_onTurnEnd = Game_Battler.prototype.onTurnEnd; Game_Battler.prototype.onTurnEnd = function () { if ($gameSystem.isSRPGMode() == true) { this.regenerateAll(); this.updateSrpgStateTurns(2); this.updateBuffTurns(); this.removeStatesAuto(2); this.removeBuffsAuto(); this.clearResult(); this.setSrpgTurnEnd(false); //Buff & States Core Fix if (Imported.YEP_BuffsStatesCore !== undefined) { if (Imported.YEP_BuffsStatesCore) { if (this.meetTurnEndStateEffectsConditions()) this.onTurnEndStateEffects(); } } } else { return _SRPG_Game_Battler_onTurnEnd.call(this); } };

No individual turn orders has not been implemented. I don't plan on making a script for this as it's beyond my scope. It'll require a huge restructure of the flow of srpg_core.js and break quite a few plugins
I tested and work fine.

But if I set mapbattle on and the tag <AoEAnimation> stay in skill tag, the AoEAnimation will run. So, I must create a condition when mapbattle on for the AoEAnimation dont play?
siluman

#1643 Jul 4, 2021, 04:14 AM Source

Hello, been quite long not here.
it's quite late but can I ask how to do members placement based on party?
and what is the update in v1.34 of the core script?
boomy

#1644 Jul 4, 2021, 04:37 AM Source

siluman said:
Hello, been quite long not here.
it's quite late but can I ask how to do members placement based on party?
and what is the update in v1.34 of the core script?
Check out shoukang's battle prepare script

1.34 update doesn't add any new features but does incorporate other scripts such as Dr Q's map battle and some Japanese scriptures dynamic battle action scripts into the srpg_core
NoPiessadface

#1645 Jul 4, 2021, 08:50 AM Source

how can I create different teams ex. team 1, team 2, neutral team
fearjunkie

#1646 Jul 4, 2021, 11:24 PM Source

Forgive me if this question has been asked before, but is there a way to set up a phase before the battle where you can decide where you want your party members to start the battle?
boomy

#1647 Jul 5, 2021, 01:40 PM Source
Boyboy180 said:
Thanks for this but it still doesn't work properly. Do I need to do something special to import buffs and states core (I looked at yanfly's other pluggins to try to understand how importing works but still don't quite get it)

Edit: That's not it. It has imported, I added a console log just before the check for conditions and that runs, it's just the turn end states still don't trigger.
Hmm... add this edit (replace the function) to Yanfly's Buff and States Core script
Code:
Game_Battler.prototype.meetTurnEndStateEffectsConditions = function() { //SRPG Edit //if (!$gameParty.inBattle()) return false; if (!$gameParty.inBattle() && !$gameSystem.isSRPGMode()) return false; if (Imported.YEP_BattleEngineCore) { if (BattleManager.isTurnBased()) { return true; } else if (BattleManager.isTickBased() && !BattleManager.isTurnEnd()) { return true; } else { return false; } } return true; };
fearjunkie said:
Forgive me if this question has been asked before, but is there a way to set up a phase before the battle where you can decide where you want your party members to start the battle?
Check Shoukang's scripts; it's in the first post of this topic and discussed the page before...
NoPiessadface

#1648 Jul 7, 2021, 01:42 PM Source

help i dont know how to fix this problem but whenever I select an actor to exchange or remove I always get this Type Error!

Plugins i used:

Error:
NatePlays

#1649 Jul 8, 2021, 01:50 PM Source

I was making an addon to the core that changes the AgiAtkPlus calculation to use a fixed difference instead of random chance (as in Fire Emblem, if your speed is greater by X, you attack again.) It's simple enough:

(Also involves changing some other areas as well, but i'm working on those)

But I noticed I can't just change that part of the code, as AgiAtkPlus is baked in
Scene_Map.prototype.srpgBattleStart instead of being called as a function. I'd need to import the whole BattleStart function but that uses plugin params from SPRG_Core (and it's ugly).
I was thinking of making a plugin to be able to share it (as it seems like an easy change to a common problem), but should I make it just an edit of the Core and share here instead?
Shoukang

#1650 Jul 8, 2021, 03:11 PM Source

NatePlays said:
I was making an addon to the core that changes the AgiAtkPlus calculation to use a fixed difference instead of random chance (as in Fire Emblem, if your speed is greater by X, you attack again.) It's simple enough:

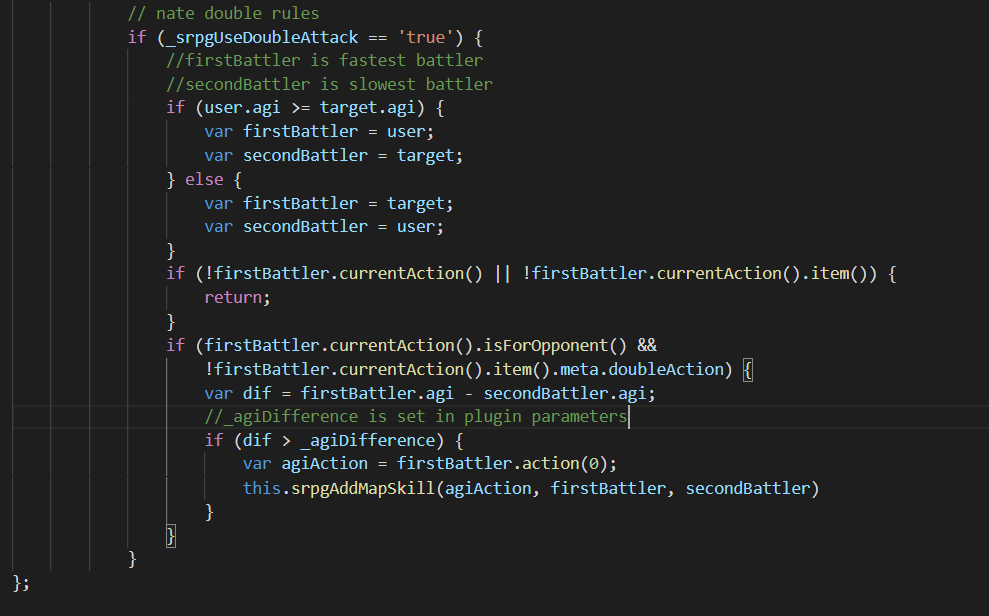

View attachment 194703

(Also involves changing some other areas as well, but i'm working on those)

But I noticed I can't just change that part of the code, as AgiAtkPlus is baked in
Scene_Map.prototype.srpgBattleStart instead of being called as a function. I'd need to import the whole BattleStart function but that uses plugin params from SPRG_Core (and it's ugly).
I was thinking of making a plugin to be able to share it (as it seems like an easy change to a common problem), but should I make it just an edit of the Core and share here instead?
I made a similar change for my game and I also noticed that this agiatk is not called by a function. Which is ugly and should be reconstructed. I will recommend you to make a plugin to reconstruct this Scene_Map.prototype.srpgBattleStart. And in the plugin description, mention that this plugin should stay above the other SRPG plugins except for the core.
It's fine to use plugin params from SRPG_Core. Many plugins do that. (For example SRPG_AoE)
P.S. You can also do a double attack when the agi difference is high to make it more fire emblem.
NatePlays

#1651 Jul 8, 2021, 06:15 PM Source

Shoukang said:
I made a similar change for my game and I also noticed that this agiatk is not called by a function. Which is ugly and should be reconstructed. I will recommend you to make a plugin to reconstruct this Scene_Map.prototype.srpgBattleStart. And in the plugin description, mention that this plugin should stay above the other SRPG plugins except for the core.

So I got to doing that before posting, and tried again but... something very strange is happening.

This is the default code for deciding to add an extra attack or not (on sideview battle only), and I blindly decided to copy that onto my .js, only to see my attacker doing 2 attacks before a counter.
Then I noticed. In line 3, the function is calling itself, which appends the code from SRPG_Core to the default MV function. If I call the function again, i'll have the new attack logic happen twice, and if I don't call it at all, I override the default MV logic.

So, unless I patched the core itself, that can't really be changed. And by the way, changing the formula inside the core works as I intended, and I may do that if no other option works.

It's fine to use plugin params from SRPG_Core. Many plugins do that. (For example SRPG_AoE)
Just learned how to do that, lol. Really helpful for addons.

P.S. You can also do a double attack when the agi difference is high to make it more fire emblem.

This is my implementation. It uses the logic already there for AgiAtkPlus and only changes what's necessary. It's also based on a plugin param so it can be edited to personal taste.
Shoukang

#1652 Jul 9, 2021, 02:10 AM Source

NatePlays said:
So I got to doing that before posting, and tried again but... something very strange is happening.

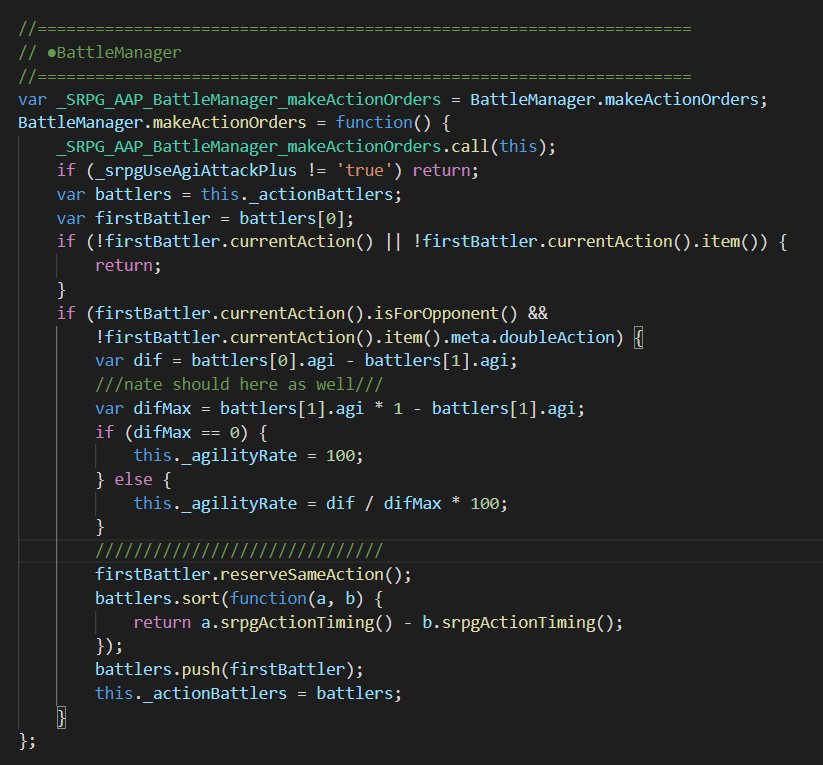

View attachment 194735
This is the default code for deciding to add an extra attack or not (on sideview battle only), and I blindly decided to copy that onto my .js, only to see my attacker doing 2 attacks before a counter.
Then I noticed. In line 3, the function is calling itself, which appends the code from SRPG_Core to the default MV function. If I call the function again, i'll have the new attack logic happen twice, and if I don't call it at all, I override the default MV logic.

So, unless I patched the core itself, that can't really be changed. And by the way, changing the formula inside the core works as I intended, and I may do that if no other option works.

Just learned how to do that, lol. Really helpful for addons.

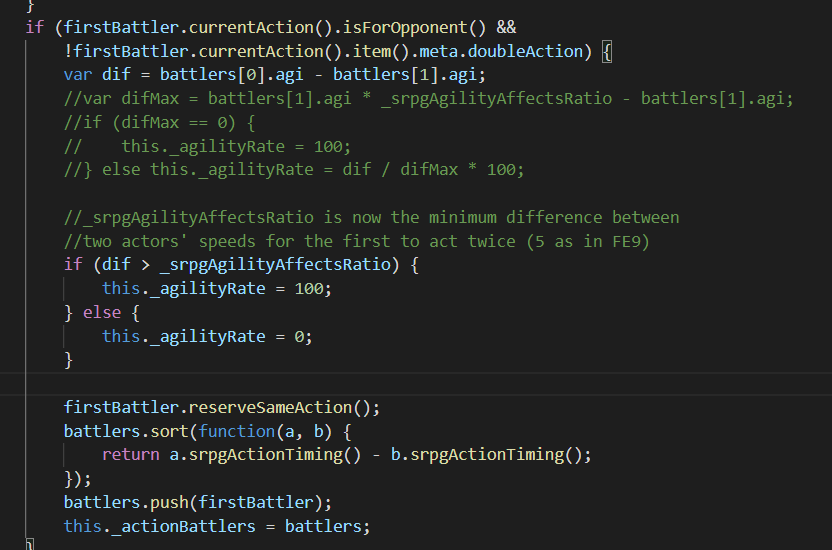

View attachment 194739
This is my implementation. It uses the logic already there for AgiAtkPlus and only changes what's necessary. It's also based on a plugin param so it can be edited to personal taste.
I see... seems like the only way to write a plugin for this is to also grab the original(default MV logic) BattleManager.makeActionOrders in your plugin...... this should work although some compatibility issue could happen. Looks like there is no good way to do this. Either patch the core or write instructions for replacing the code is fine.
Anyway, I'm glad you go into the code, and I'm sure you can create useful plugins in the future ^ ^

N-Amata said:
Hi @Shoukang, your plugins for the engine are great! Just a question:
for BattlePrepare, is there a way to skip the Battle Preparation Phase entirely?

The plugin command "DisableSRPGPrepare" only disables the Prepare command in the menu, and it'd be cool if there are battles where you can't prepare- Tutorial battles, for example.

Thanks for your work on the plugins nonetheless! :)
Sorry for the late reply. Somehow I tested my plugin in the demo and it works well. When I use the DisableSRPGPrepare command, the battle prepare phase doesn't show up at all.
I tried to repeat your situation and I guess you use the DisableSRPGPrepare command after the SRPGBattleStart command. You will need to disable battle preparation before you start the battle.
Shoukang

#1653 Jul 9, 2021, 07:35 PM Source

NoPiessadface said:
help i dont know how to fix this problem but whenever I select an actor to exchange or remove I always get this Type Error!

Plugins i used:

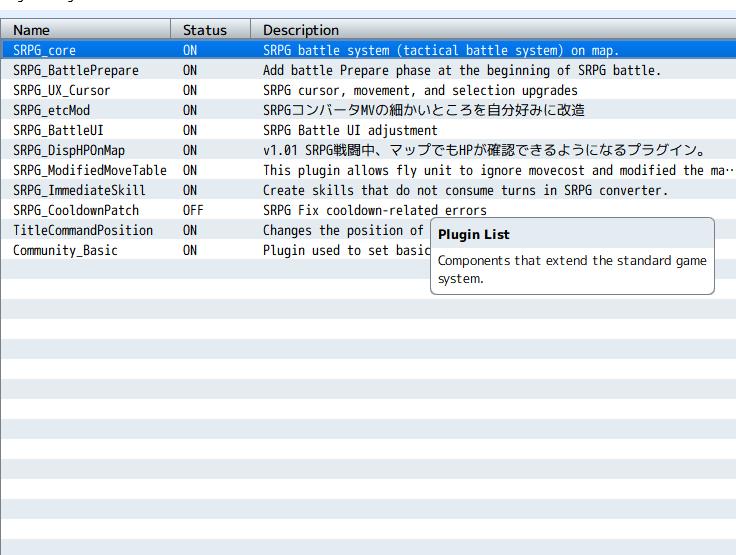

View attachment 194594
Error:

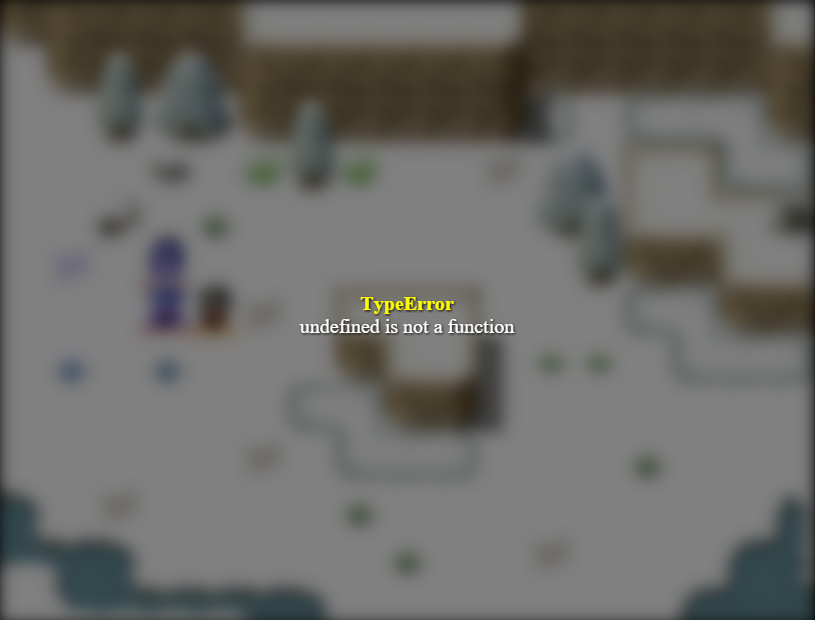

View attachment 194595
Please hit F8 to open the console to get more information.I think this happens because some functions are missing.
Also, you can try to add Dr.Q's range control, AoE, and AI control plugin. These are very essential plugins that are considered official and may have the functions missed.
Nezugi

#1654 Jul 9, 2021, 09:30 PM Source

Hi Everyone

where can i change the color of the distance indicator tiles (blue an red by default) ?
Cant find it anywhere.

Thx in advance.

Greetings,
Shoukang

#1655 Jul 10, 2021, 12:35 AM Source

Nezugi said:
Hi Everyone

where can i change the color of the distance indicator tiles (blue an red by default) ?
Cant find it anywhere.

View attachment 194885

Thx in advance.

Greetings,
Search for the key words: "blue", 'blue', "red", 'red' (not sure they use single or double quote) in the core plugin, and replace them with other valid color names.
Some other plugins might override the colors so if it doesn't work check these keywords in Battle UI plugin or my showAoERange plugin.
Nezugi

#1656 Jul 10, 2021, 09:34 PM Source

Working , Thank you !
NoPiessadface

#1657 Jul 11, 2021, 11:42 AM Source

Shoukang said:
Please hit F8 to open the console to get more information.I think this happens because some functions are missing.
Also, you can try to add Dr.Q's range control, AoE, and AI control plugin. These are very essential plugins that are considered official and may have the functions missed.

This happens literally every single time no matter what I do It just won't let me change the actor. I also can't understand and read the code because have no experience with javascript. Is it a bug or am I missing something?
NatePlays

#1658 Jul 11, 2021, 03:31 PM Source

NoPiessadface said:

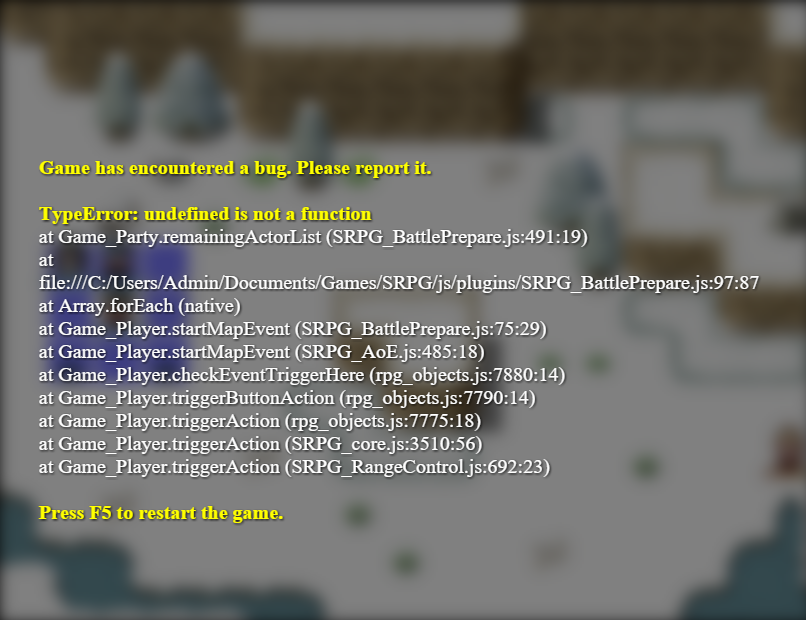

View attachment 195094
This happens literally every single time no matter what I do It just won't let me change the actor. I also can't understand and read the code because have no experience with javascript. Is it a bug or am I missing something?
That screen doesn't help much. Most I can get is that there's something happening with Shoukang's Battle Prepare.
We ask that you show the console (press F8) as that shows exactly what functions are giving errors (the ones in red), so Shou can help you.
Shoukang

#1659 Jul 12, 2021, 06:12 PM Source

NoPiessadface said:

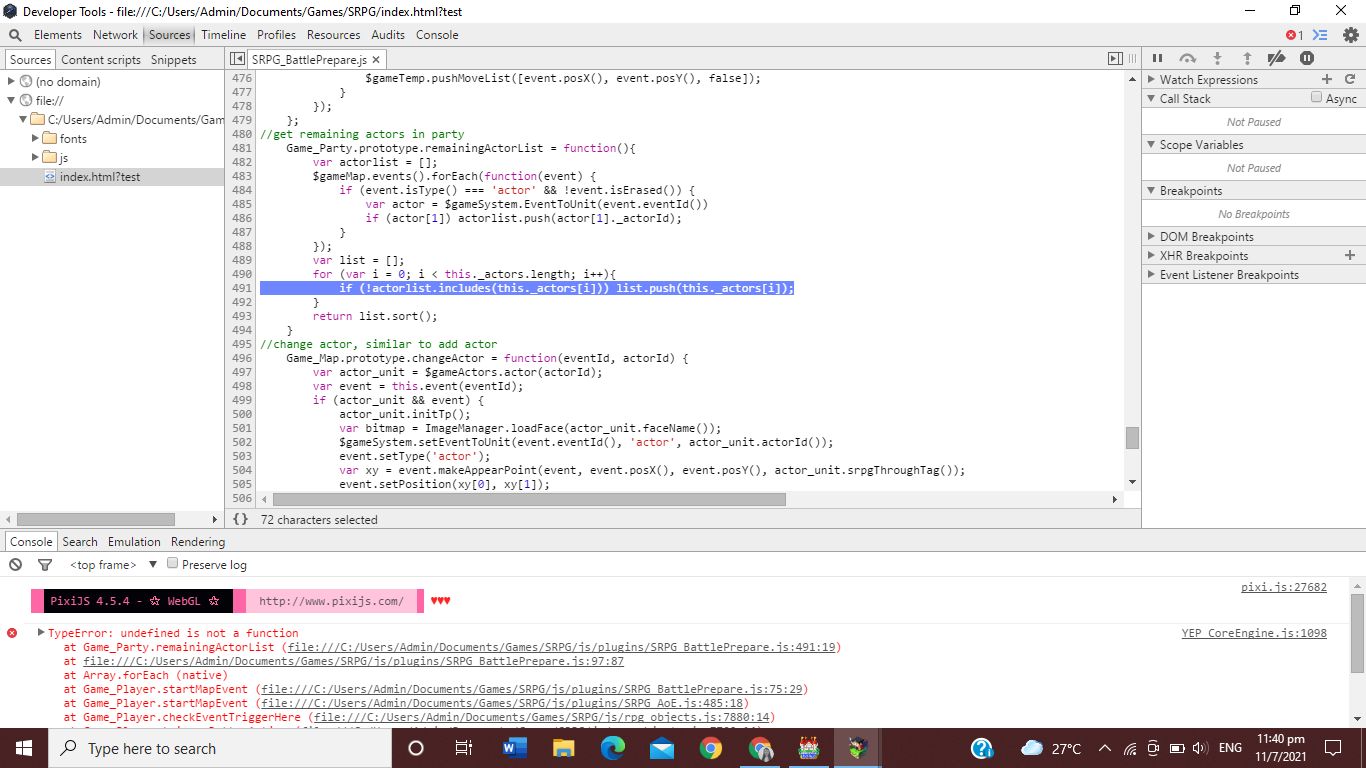

View attachment 195097
This happens literally every single time no matter what I do It just won't let me change the actor. I also can't understand and read the code because have no experience with javascript. Is it a bug or am I missing something?
Thanks for your information. Sadly, I still can't understand what causes this issue. both includes() and push() are built-in array methods in JS...... Does it have something to do with the library? If anyone knows what's the cause please help...

P.S. I noticed that includes() is added in ES6 version of Js in 2016. Try to replace line 491
if (!actorlist.includes(this._actors[i])) list.push(this._actors[i]);
with
if (actorlist.indexOf(this._actors[i]) < 0) list.push(this._actors[i]);
NoPiessadface

#1660 Jul 13, 2021, 04:45 AM Source

Shoukang said:
Thanks for your information. Sadly, I still can't understand what causes this issue. both includes() and push() are built-in array methods in JS...... Does it have something to do with the library? If anyone knows what's the cause please help...

P.S. I noticed that includes() is added in ES6 version of Js in 2016. Try to replace line 491
if (!actorlist.includes(this._actors[i])) list.push(this._actors[i]);
with
if (actorlist.indexOf(this._actors[i]) < 0) list.push(this._actors[i]);
thnnxxxx it literally works!
