// copyright 2020 Doktor_Q all rights reserved.
// Released under the MIT license.
// http://opensource.org/licenses/mit-license.php
//=============================================================================

/*:
 * @plugindesc SRPG area-of-effect skills--<Line of Sight>--
 * @author Dr. Q + アンチョビ, Edited by Shoukang
 *
 * @param AoE Color
 * @desc CSS Color for AoE squares
 * https://www.w3schools.com/cssref/css_colors.asp
 * @type string
 * @default DarkOrange
 *
 * @param Show One Square AoE
 * @desc Show AoE indicator for single target effects?
 * @type boolean
 * @on Show
 * @off Hide
 * @default false
 *
 * @param Refocus Camera
 * @desc Move the camera to each target as it's hit
 * @type boolean
 * @on Move
 * @off Don't move
 * @default false
 *
 * @param Aoe Line of Sight
 *
 * @param Aoe Through Objects
 * @desc If true, objects don't block LoS
 * @parent Aoe Line of Sight
 * @type boolean
 * @default false
 *
 * @param Aoe Through Opponents
 * @desc If true, the users's enemies don't block LoS
 * @parent Aoe Line of Sight
 * @type boolean
 * @default false
 *
 * @param Aoe Through Friends
 * @desc If true, the users's allies don't block LoS
 * @parent Aoe Line of Sight
 * @type boolean
 * @default true
 *
 * @param Aoe Through Events
 * @desc If true, playerEvents don't block LoS
 * @parent Aoe Line of Sight
 * @type boolean
 * @default false
 *
 * @param Aoe Through Terrain
 * @desc Terrain IDs above this number block line of sight
 * -1 uses the same setting as the user's mobility
 * @parent Aoe Line of Sight
 * @type number
 * @min -1
 * @max 7
 * @default 0
 *
 * @help
 * Allows you to define an area of effect for attacks
 * Based on SRPG_AreaAttack.js by アンチョビ
 *
 * Note: SRPG_AreaAttack and SRPG_AoE define many of the same features in
 * different ways, and are incompatible if you try to use both.
 *
 * When using an AoE skill, you can target an empty cell as long as there is at
 * least one valid target within the area
 * AI units won't make use of this, and will always try to target a unit
 * directly, catching other targets by coincidence
 *
 * By default, AI units are not allowed to use AoE effects with a minimum range
 * of 1 or more because they don't understand how to aim them, but other
 * plugins that improve the AI can include the following line to reenable them:
 * Game_System.prototype.srpgAIUnderstandsAoE = true;
 *
 * Note: .SRPGActionTimesAdd(X) will only work during the first target of a
 * skill if it has an AoE. If you want to modify action times manually, use
 * ._SRPGActionTimes += X instead.
 *
 * Skill / item notetags:
 * <srpgAreaRange:x>    creates an AoE of size x
 * <srpgAreaMinRange:x> adjusts the minimum AoE size, creating a hole
 * <srpgAreaTargets:x>  set the maximum number of targets the skill can hit
 * <srpgAreaType:y>     changes the shape of the AoE
 *   type defaults to 'circle' if not specified
 *
 * <srpgAreaOrder:near> select targets from nearest to furthest (default)
 * <srpgAreaOrder:far>  select targets from furthest to nearets
 * <srpgAreaOrder:random> select targets randomly within the AoE
 *

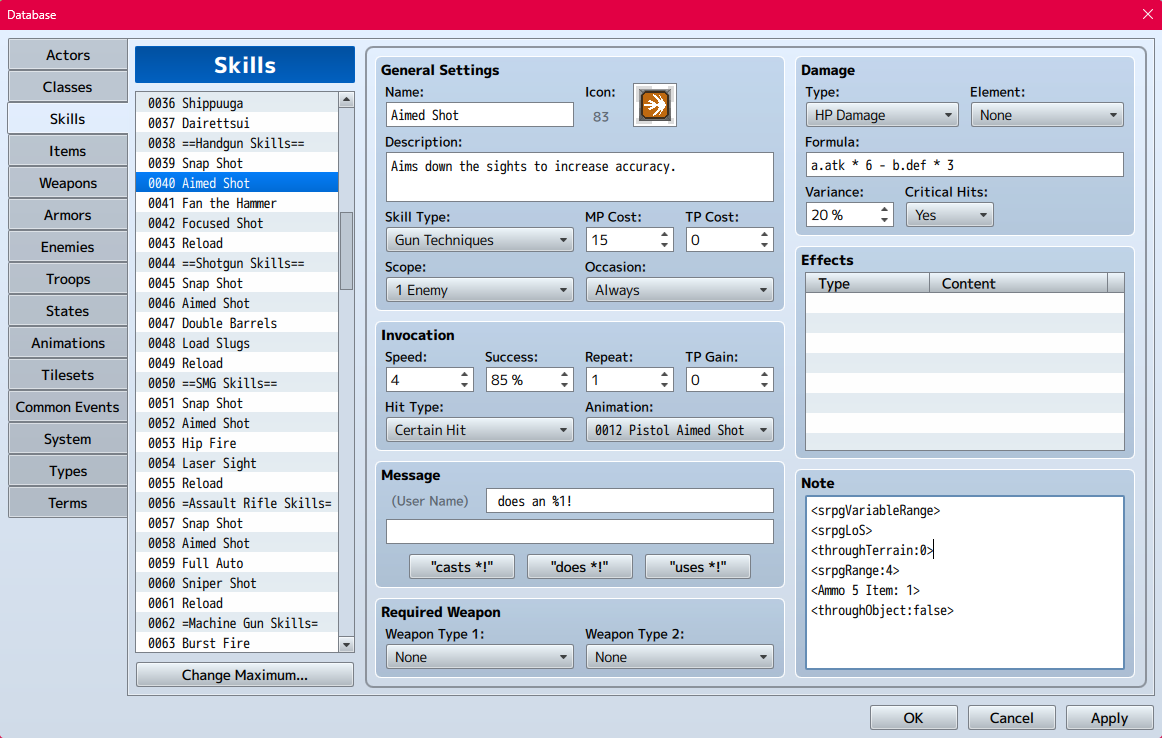

 * <srpgAoeLoS: true>      Ensures the skill adheres to LoS logic.
 * <throughAoeTerrain: 2>  Allows the AoE to pass through terrain with a tag of 2 or lower.
 * <throughAoeObject: true|false> Determines whether the AoE can pass through objects (e.g., destructible barrels, rocks).
 * <throughAoeFriend: true|false> Determines whether the AoE can pass through friendly units.
 * <throughAoeOpponent: true|false> Determines whether the AoE can pass through enemy units.
 * <throughAoeEvent: true|false> Determines whether the AoE can pass through events (e.g., doors, switches).
 * <isForFriend: true|false> Determines whether the skill can target friendly units.
 * <isForOpponent: true|false> Determines whether the skill can target opposing units.
 * <isForBoth: true> Allows the skill to target both friendly and enemy units.
 * <cellTarget: true> Allows the skill to target empty cells or tiles.(POSITION EFFECTS)
 *
 *
 * The following shapes are available, shown at a size of 2, min size of 0
 * The number shows what distance it is at
 *
 * circle: hits a circle around the target cell
 *      2
 *    2 1 2
 *  2 1 0 1 2
 *    2 1 2
 *      2
 *
 * square - hits a square around the target cell
 *  2 2 2 2 2
 *  2 1 1 1 2
 *  2 1 0 1 2
 *  2 1 1 1 2
 *  2 2 2 2 2
 *
 * line - hits a straight line behind of the target cell
 *
 *      0
 *      1
 *      2
 * (facing down)
 *
 * cone - hits a 90 degree cone behind the target cell
 *
 *
 *      0
 *    1 1 1
 *  2 2 2 2 2
 * (facing down)
 *
 * split - hits a v shape behind the target cell
 *
 *
 *      0
 *    1   1
 *  2       2
 * (facing down)
 *
 * arc - hits a v shape coming back from the target cell
 *  2       2
 *    1   1
 *      0
 *
 *
 * (facing down)
 *
 * side - hits a line to either side of the target cell
 *
 *
 *  2 1 0 1 2
 *
 *
 * (facing down)
 *
 * tee - hits behind and to the sides of the target
 *
 *
 *  2 1 0 1 2
 *      1
 *      2
 * (facing down)
 *
 * plus - hits a + shape around the target cell
 *      2
 *      1
 *  2 1 0 1 2
 *      1
 *      2
 *
 * cross - hits an x shape around the target cell
 *  2       2
 *    1   1
 *      0
 *    1   1
 *  2       2
 *
 * star - hits a + and an x shape around the target cell
 *  2   2   2
 *    1 1 1
 *  2 1 0 1 2
 *    1 1 1
 *  2   2   2
 *
 * checker - hits every other cell in a square
 *  2   2   2
 *    1   1
 *  2   0   2
 *    1   1
 *  2   2   2
 *
 * Script calls for advanced users:
 *  yourEvent.battlersNear(size, minSize, 'shape', [direction])
 *  yourEvent.enemiesNear(size, minSize, 'shape', [direction])
 *  yourEvent.actorsNear(size, minSize, 'shape', [direction])
 *
 * Returns a list of actors/enemies/both near the specified event, supporting
 * the same AoE shapes listed above. If you use a directional AoE shape and no
 * direction is specified, it will point where your event is facing
 */

(function(){

    var parameters = PluginManager.parameters('SRPG_AoE');
    var _oneSquare = !!eval(parameters['Show One Square AoE']);
    var _areaColor = parameters['AoE Color'];
    var _refocus = !!eval(parameters['Refocus Camera']);

    var _defaultAoeTag = Number(parameters['Aoe Through Terrain'] || 0);
    var _throughAoeObject = !!eval(parameters['Aoe Through Objects']);
    var _throughAoeOpponent = !!eval(parameters['Aoe Through Opponents']);
    var _throughAoeFriend = !!eval(parameters['Aoe Through Friends']);
    var _throughAoeEvent = !!eval(parameters['Aoe Through Events']);

    var coreParameters = PluginManager.parameters('SRPG_core');
    var _srpgPredictionWindowMode = Number(coreParameters['srpgPredictionWindowMode'] || 1);

//====================================================================
// Compatibility with plugins expecting SRPG_AreaAttack.js
//====================================================================

    Game_Temp.prototype.isFirstAction = function() {
        return !!(this.shouldPayCost());
    };
    Game_Temp.prototype.isLastAction = function() {
        return !!(this.areaTargets().length < 1);
    };
    Game_BattlerBase.prototype.srpgSkillAreaRange = function(item) {
        return Number(item.meta.srpgAreaRange);
    };

//====================================================================
// Get AoE data for the skill
//====================================================================

    // get AoE properties
    Game_Action.prototype.area = function() {
        if (this.item()) return Number(this.item().meta.srpgAreaRange) || 0;
        return 0;
    };
    Game_Action.prototype.minArea = function() {
        if (this.item()) return Number(this.item().meta.srpgAreaMinRange) || 0;
        return 0;
    };
    Game_Action.prototype.areaType = function() {
        var type = '';
        if (this.item()) type = this.item().meta.srpgAreaType || '';
        type = type.toLowerCase();
        return type;
    };
    Game_Action.prototype.areaTargetLimit = function() {
        if (this.item()) return Number(this.item().meta.srpgAreaTargets) || 0;
        return 0;
    };
    Game_Action.prototype.areaOrder = function() {
        var order = '';
        if (this.item()) return this.item().meta.srpgAreaOrder || '';
        order = order.toLowerCase();
        return order;
    };

    // (utility) find the direction to a fixed point, discounting obstacles
    Game_Character.prototype.dirTo = function(x, y) {
        var dir = 5;
        var dx = this.posX() - x;
        var dy = this.posY() - y;

        // account for looping maps
        if ($gameMap.isLoopHorizontal()) {
            if (dx > $gameMap.width() / 2) dx -= $gameMap.width();
            if (dx < -$gameMap.width() / 2) dx += $gameMap.width();
        }
        if ($gameMap.isLoopVertical()) {
            if (dy > $gameMap.height() / 2) dy -= $gameMap.height();
            if (dy < -$gameMap.height() / 2) dy += $gameMap.height();
        }

        if (Math.abs(dx) > Math.abs(dy)) {
            dir = dx > 0 ? 4 : 6;
        } else if (dy !== 0) {
            dir = dy > 0 ? 8 : 2;
        }
        return dir;
    };

    // (utility) find the distance to a fixed point, discounting obstacles
    Game_Character.prototype.distTo = function(x, y) {
        var dx = Math.abs(this.posX() - x);
        var dy = Math.abs(this.posY() - y);

        if ($gameMap.isLoopHorizontal()) dx = Math.min(dx, $gameMap.width() - dx);
        if ($gameMap.isLoopVertical()) dy = Math.min(dy, $gameMap.height() - dy);

        return  dx + dy;
    };

    // (utility) checks if a position is within the current skill's range
    Game_System.prototype.positionInRange = function(x, y) {
        var range = $gameTemp.moveList();
        for (var i = 0; i < range.length; i++) {
            if (range[i][0] == x && range[i][1] == y) return true;
        }
        return false;
    };

//=========================================================================================================================
//AOE LOS CODE
//=========================================================================================================================

    // check line-of-sight as part of the special range
    var _srpgAoeRangeExtention = Game_CharacterBase.prototype.srpgAoeRangeExtention;
    Game_CharacterBase.prototype.srpgAoeRangeExtention = function(x, y, oriX, oriY, skill, area) {
        if (!_srpgRangeExtention.apply(this, arguments)) return false;
        if (skill && skill.meta.srpgAoeLoS) {
            return $gameMap.srpgHasAoeLoS(oriX, oriY, x, y, this.LoSAoeTerrain(skill), this.LoSAoeEvents(skill));
        }
        return true;
    }

    Game_Map.prototype.initializeLosAoeTable = function() {
        // Check if _losAoeTable is already initialized
        if (!this._losAoeTable) {
            this._losAoeTable = {};  // Initialize it as an empty object
        }
    };

        // map out the events that might block LoS
        Game_Map.prototype.makeSrpgAoeLoSTable = function(source) {
            if (!this._losAoeTable) {
                this._losAoeTable = {}; // Initialize the table only if not already created
            }
            this.events().forEach(function(event) {
                if (event !== source && !event.isErased() && event.isType()) {
                    var key = event.posX() + ',' + event.posY();
                    switch (event.isType()) {
                        case 'object':
                            if (event.characterName() == '') break;
                        case 'actor':
                        case 'enemy':
                        case 'playerEvent':
                            this._losAoeTable[key] = event.isType();
                            break;
                    }
                }
            }, this);
        };



        Game_CharacterBase.prototype.LoSAoeTerrain = function() {
            var unit = $gameTemp.activeEvent();
            var actor = $gameSystem.EventToUnit(unit.eventId())[1];
            var action = actor.currentAction();  // Get the actor's current action
            if (!action) return _defaultAoeTag; // If there's no action, return default tag

            var skillId = action.item().id;  // Retrieve the skill ID
            var skill = $dataSkills[skillId];  // Look up the skill object using the ID

            if (!skill || skill.meta.throughAoeTerrain === undefined) return _defaultAoeTag;

            var terrain = Number(skill.meta.throughAoeTerrain);
            if (terrain < 0) {
                if (typeof actor.srpgThroughTag === 'function') {
                    return actor.srpgThroughTag();  // Return the custom terrain tag if function exists
                }
            }

            return terrain;  // Return the skill's terrain tag if it's defined
        };

        Game_CharacterBase.prototype.LoSAoeEvents = function() {
            var unit = $gameTemp.activeEvent();
            var actor = $gameSystem.EventToUnit(unit.eventId())[1];
            var action = actor.currentAction();  // Get the actor's current action
            if (!action) return [];  // If there's no action, return an empty array

            var skillId = action.item().id;  // Retrieve the skill ID
            var skill = $dataSkills[skillId];  // Look up the skill object using the ID

            if (!skill) return [];  // If no skill found, return an empty array

            var blockingTypes = [];

            // Process the 'throughAoeObject' meta tag if it exists
            if ((!_throughAoeObject && skill.meta.throughAoeObject != "true") || skill.meta.throughAoeObject == "false") {
                blockingTypes.push("object");
            }

            // Process the 'throughAoeFriend' meta tag if it exists
            if ((!_throughAoeFriend && skill.meta.throughAoeFriend != "true") || skill.meta.throughAoeFriend == "false") {
                blockingTypes.push((this.isType() != "enemy") ? "actor" : "enemy");
            }

            // Process the 'throughAoeOpponent' meta tag if it exists
            if ((!_throughAoeOpponent && skill.meta.throughAoeOpponent != "true") || skill.meta.throughAoeOpponent == "false") {
                blockingTypes.push((this.isType() != "enemy") ? "enemy" : "actor");
            }

            // Process the 'throughAoeEvent' meta tag if it exists
            if ((!_throughAoeEvent && skill.meta.throughAoeEvent != "true") || skill.meta.throughAoeEvent == "false") {
                blockingTypes.push("playerEvent");
            }

            return blockingTypes;  // Return the list of blocking event types
        };

        // trace the line from x,y to x2,y2 and return false if the path is blocked
        Game_Map.prototype.srpgHasAoeLoS = function(x1, y1, x2, y2, tag, types) {
            tag = Math.max(tag, 0);
            var dx = Math.abs(x2 - x1);
            var dy = Math.abs(y2 - y1);
            var sx = (x1 < x2) ? 1 : -1;
            var sy = (y1 < y2) ? 1 : -1;

            if (this.isLoopHorizontal() && dx > this.width() / 2) {
                dx = this.width() - dx;
                sx *= -1;
            }
            if (this.isLoopVertical() && dy > this.height() / 2) {
                dy = this.height() - dy;
                sy *= -1;
            }

            var x = x1;
            var y = y1;
            var err = dx - dy;

            while (x !== x2 || y !== y2) {
                var key = x + ',' + y;

                // Block based on terrain or events in `_losAoeTable`
                if (this.terrainTag(x, y) > tag) return false;
                if (this._losAoeTable[key] && types.contains(this._losAoeTable[key])) return false;

                var err2 = err * 2;
                if (err2 > -dy) {
                    err -= dy;
                    x += sx;
                    if (x < 0) x += this.width();
                    if (x >= this.width()) x -= this.width();
                }
                if (err2 < dx) {
                    err += dx;
                    y += sy;
                    if (y < 0) y += this.height();
                    if (y >= this.height()) y -= this.height();
                }
            }

            return true;
        };



//====================================================================
// Game_Temp (store lists of multiple targets)
//====================================================================

    var _Game_Temp_initialize = Game_Temp.prototype.initialize;
    Game_Temp.prototype.initialize = function() {
        _Game_Temp_initialize.call(this);
        this._activeAoE = null;
        this._areaTargets = [];
        this._shouldPaySkillCost = true;
    };

    // easy access to the origin of the AoE
    Game_Temp.prototype.areaX = function() {
        return this._activeAoE ? this._activeAoE.x : -1;
    };
    Game_Temp.prototype.areaY = function() {
        return this._activeAoE ? this._activeAoE.y : -1;
    };

//===Aoe los modified logic===
    // check if an event is in the area of the current skill
    Game_Temp.prototype.inArea = function(event) {
        if (!this._activeAoE) return false;

        var aoe = this._activeAoE;
        var isVisible = aoe.visibleTiles.some(tile => tile.x === event.posX() && tile.y === event.posY());
        var isBlocked = aoe.blockedTiles.some(tile => tile.x === event.posX() && tile.y === event.posY());

        return isVisible && !isBlocked;
    };

    // to attack multiple targets, you queue up a target list
    Game_Temp.prototype.clearAreaTargets = function() {
        this._areaTargets = [];
    };
    Game_Temp.prototype.addAreaTarget = function(action) {
        this._areaTargets.push(action);
    };
    Game_Temp.prototype.areaTargets = function() {
        return this._areaTargets;
    };

    // when repeating actions, the cost/item is only paid once
    Game_Temp.prototype.setShouldPayCost = function(flag) {
        this._shouldPaySkillCost = flag;
    };
    Game_Temp.prototype.shouldPayCost = function() {
        return this._shouldPaySkillCost;
    };
    var _useItem = Game_Battler.prototype.useItem;
    Game_Battler.prototype.useItem = function(skill) {
        if (!$gameSystem.isSRPGMode() || $gameTemp.shouldPayCost()) {
            _useItem.call(this, skill);
        }
    };
    var _actionTimesAdd = Game_Battler.prototype.SRPGActionTimesAdd;
    Game_Battler.prototype.SRPGActionTimesAdd = function(num) {
        if ($gameTemp.shouldPayCost()) {
            _actionTimesAdd.call(this, num);
        }
    };

//====================================================================
// Check what's in an area
//====================================================================

    // get a list of battlers near another battler
    Game_Character.prototype.battlersNear = function(size, minSize, shape, dir, type) {
        var x = this.posX();
        var y = this.posY();
        dir = dir || this.direction();

        var battlers = [];
        $gameMap.events().forEach(function (event) {
            if (event.isErased() || !event.inArea(x, y, size, minSize, shape, dir)) return;
            var unitAry = $gameSystem.EventToUnit(enemyEvent.eventId());
            if (unitAry && (unitAry[0] === type || type === null)) battlers.push(unitAry[1]);
        });
        return battlers;
    };
    Game_Character.prototype.enemiesNear = function(size, minSize, shape, dir) {
        return this.battlersNear(size, minSize, shape, dir, 'enemy');
    };
    Game_Character.prototype.actorsNear = function(size, minSize, shape, dir) {
        return this.battlersNear(size, minSize, shape, dir, 'actor');
    };

    // check if a character is within a specified AoE
    Game_Character.prototype.inArea = function(x, y, size, minSize, shape, dir) {
        if (size <= 0) return false; // one-square AoEs don't count as AoEs
        var dx = this.posX() - x;
        var dy = this.posY() - y;

        // account for looping maps
        if ($gameMap.isLoopHorizontal()) {
            if (dx > $gameMap.width() / 2) dx -= $gameMap.width();
            if (dx < -$gameMap.width() / 2) dx += $gameMap.width();
        }
        if ($gameMap.isLoopVertical()) {
            if (dy > $gameMap.height() / 2) dy -= $gameMap.height();
            if (dy < -$gameMap.height() / 2) dy += $gameMap.height();
        }
        return $gameMap.inArea(dx, dy, size, minSize, shape, dir);
    };

    // check if a given position is within an area
    Game_Map.prototype.inArea = function(x, y, size, minSize, shape, dir) {
        var _fx = [0, -1, 0, 1, -1, 0, 1, -1, 0, 1][dir];
        var _fy = [0, 1, 1, 1, 0, 0, 0, -1, -1, -1][dir];

        var ry = x*_fx + y*_fy; // forward
        var rx = x*_fy - y*_fx; // sideways

        // apply default shape
        shape = shape || 'circle';

        // outside drawing boundary, doesn't count
        if (x > size || x < -size || y > size || y < -size) return false;

        switch (shape) {
            case 'line':
                if (rx != 0) return false;
                if (ry > size || ry < minSize) return false;
                return true;

            case 'cone':
                if (ry > size || ry < minSize) return false;
                if (Math.abs(rx) > Math.abs(ry)) return false;
                return true;

            case 'split':
                if (ry > size || ry < minSize) return false;
                if (Math.abs(rx) != Math.abs(ry)) return false;
                return true;

            case 'arc':
                if (ry < -size || ry > -minSize) return false;
                if (Math.abs(rx) != Math.abs(ry)) return false;
                return true;

            case 'side':
                if (ry != 0) return false;
                if (Math.abs(rx) > size || Math.abs(rx) < minSize) return false;
                return true;

            case 'tee':
                if (ry < 0) return false;
                if (x != 0 && y != 0) return false;
                if (Math.abs(x) > size || Math.abs(y) > size) return false;
                if (Math.abs(x) < minSize && Math.abs(y) < minSize) return false;
                return true;

            case 'plus':
                if (x != 0 && y != 0) return false;
                if (Math.abs(x) > size || Math.abs(y) > size) return false;
                if (Math.abs(x) < minSize && Math.abs(y) < minSize) return false;
                return true;

            case 'cross':
                if (Math.abs(x) != Math.abs(y)) return false;
                if (Math.abs(x) > size || Math.abs(x) < minSize) return false;
                return true;

            case 'star':
                if (Math.abs(x) != Math.abs(y) && x != 0 && y != 0) return false;
                if (Math.abs(x) > size || Math.abs(y) > size) return false
                if (Math.abs(x) < minSize && Math.abs(y) < minSize) return false
                return true;

            case 'checker':
                if ((x + y) % 2 != 0) return false;
                if (Math.abs(x) > size || Math.abs(y) > size) return false
                if (Math.abs(x) < minSize && Math.abs(y) < minSize) return false
                return true;

            case 'square':
                if (Math.abs(x) > size || Math.abs(y) > size) return false;
                if (Math.abs(x) < minSize && Math.abs(y) < minSize) return false
                return true;

            case 'circle':
                if (Math.abs(x) + Math.abs(y) > size || Math.abs(x) + Math.abs(y) < minSize) return false;
                return true;

            default: // support extension from other plugins
                return this.extraAreas(shape, x, y, rx, ry, size, minSize);
        }
    };

    // plugins can override this to add more shapes
    Game_Map.prototype.extraAreas = function(shape, x, y, rx, ry, size, minSize) {
        return false;
    };

//====================================================================
// Using AoE skills
//====================================================================

    // update the active AoE when you move the cursor
    var _startMapEvent = Game_Player.prototype.startMapEvent;
    Game_Player.prototype.startMapEvent = function(x, y, triggers, normal) {
        if ($gameSystem.isSRPGMode() && triggers.contains(1)) {
            if ($gameSystem.isSubBattlePhase() === 'actor_target' && $gameSystem.positionInRange(x, y)) {
                $gameTemp.showArea(x, y);
            } else if ($gameSystem.isSubBattlePhase() !== 'invoke_action' &&
            $gameSystem.isSubBattlePhase() !== 'battle_window' && $gameSystem.isBattlePhase() == 'actor_phase') { //shoukang add && $gameSystem.isBattlePhase() == 'actor_phase'
                $gameTemp.clearArea();
            }
        }
        if ($gameSystem.isSRPGMode() && $gameSystem.isSubBattlePhase() === 'actor_target' && $gameTemp.isSkillAoE()) {
            return;
        }
        _startMapEvent.call(this, x, y, triggers, normal);
    };

    // show the AoE when you start targeting
    var _startActorTargetting = Scene_Map.prototype.startActorTargetting;
    Scene_Map.prototype.startActorTargetting = function() {
        _startActorTargetting.call(this);
        var x = $gamePlayer.posX();
        var y = $gamePlayer.posY();
        if ($gameSystem.positionInRange(x, y)) {
            $gameTemp.showArea(x, y);
        }
    };

    // clear the AoE when you cancel targeting
    var _updateCallMenu = Scene_Map.prototype.updateCallMenu;
    Scene_Map.prototype.updateCallMenu = function() {
        if ($gameSystem.isSRPGMode() && $gameSystem.isSubBattlePhase() === 'actor_target' &&
        (Input.isTriggered('cancel') || TouchInput.isCancelled())) {
            $gameTemp.clearArea();
        }
        _updateCallMenu.call(this);
    };

    // check if the skill currently selected has an AoE
    Game_Temp.prototype.isSkillAoE = function() {
        var unit = $gameTemp.activeEvent();
        var actor = $gameSystem.EventToUnit(unit.eventId())[1];
        if (!actor) return false;
        var skill = actor.currentAction();
        if (!skill) return false;
        if (skill.area() <= 0) return false;
        return true;
    };

    //===modified Aoe Los logic===
    Game_Temp.prototype.showArea = function(x, y, dir) {
        var unit = $gameTemp.activeEvent();
        if (!unit) return;

        var actor = $gameSystem.EventToUnit(unit.eventId())[1];
        if (!actor) return;

        var skill = actor.currentAction();
        if (!skill) return;

        $gameMap.makeSrpgAoeLoSTable(unit); // Precompute event blockers

        var size = skill.area();
        var minSize = skill.minArea();
        var shape = skill.areaType();
        var dir = dir || unit.dirTo(x, y);
        this._activeAoE = {
            x: x,
            y: y,
            size: size,
            minSize: minSize,
            shape: shape,
            dir: dir,
            visibleTiles: [],
            blockedTiles: []
        };

        var tileCache = {}; // Cache results to avoid redundant LoS checks

        for (var dx = -size; dx <= size; dx++) {
            for (var dy = -size; dy <= size; dy++) {
                if (!$gameMap.inArea(dx, dy, size, minSize, shape, dir)) continue;

                var targetX = x + dx;
                var targetY = y + dy;
                var key = targetX + ',' + targetY;

                if (tileCache[key] !== undefined) {
                    // Use cached result
                    if (tileCache[key]) {
                        this._activeAoE.visibleTiles.push({ x: targetX, y: targetY });
                    } else {
                        this._activeAoE.blockedTiles.push({ x: targetX, y: targetY });
                    }
                    continue;
                }

                var hasLoS = $gameMap.srpgHasAoeLoS(x, y, targetX, targetY, unit.LoSAoeTerrain(skill), unit.LoSAoeEvents(skill));
                tileCache[key] = hasLoS;

                if (hasLoS) {
                    this._activeAoE.visibleTiles.push({ x: targetX, y: targetY });
                } else {
                    this._activeAoE.blockedTiles.push({ x: targetX, y: targetY });
                }
            }
        }
    };

    // clear out the highlighted area
    Game_Temp.prototype.clearArea = function() {
        this._activeAoE = null;
    };

//==Aoe los modified logic===
    // AoE skills can select empty cells
    var _triggerAction = Game_Player.prototype.triggerAction;
    Game_Player.prototype.triggerAction = function() {
        if ($gameSystem.isSRPGMode() && $gameSystem.isSubBattlePhase() === 'actor_target') {
            if (Input.isTriggered('ok') || TouchInput.isTriggered()) {
                var userArray = $gameSystem.EventToUnit($gameTemp.activeEvent().eventId());
                var skill = userArray[1].currentAction();

                if ($gameTemp.selectArea(userArray[1], skill)) {
                    SoundManager.playOk();

                    var action = $gameTemp.areaTargets().shift();
                    var targetArray = $gameSystem.EventToUnit(action.event.eventId());

                    $gameTemp.setTargetEvent(action.event);
                    $gameTemp.setSrpgDistance($gameSystem.unitDistance($gameTemp.activeEvent(), action.event));

                    $gameSystem.clearSrpgActorCommandStatusWindowNeedRefresh();
                    if (_srpgPredictionWindowMode !== 3) {
                        $gameSystem.setSrpgStatusWindowNeedRefresh(userArray);
                    }
                    $gameSystem.setSrpgBattleWindowNeedRefresh(userArray, targetArray);
                    $gameSystem.setSubBattlePhase('battle_window');
                    return true;
                }
            }
        }
        return _triggerAction.call(this);
    };

    // Clear AoE targets when cancelling the big target
    var _selectPreviousSrpgBattleStart = Scene_Map.prototype.selectPreviousSrpgBattleStart;
    Scene_Map.prototype.selectPreviousSrpgBattleStart = function() {
        _selectPreviousSrpgBattleStart.call(this);
        $gameTemp.clearAreaTargets();
    };


//===Aoe los modified logic===
    // Apply AoEs for auto units as well
    var _srpgInvokeAutoUnitAction = Scene_Map.prototype.srpgInvokeAutoUnitAction;
    Scene_Map.prototype.srpgInvokeAutoUnitAction = function() {
        // Set up the AoE if it hasn't already been prepared
        if (!$gameTemp._activeAoE) {
            var mainTarget = $gameTemp.targetEvent();
            if (mainTarget && $gameSystem.positionInRange(mainTarget.posX(), mainTarget.posY())) {
                var userArray = $gameSystem.EventToUnit($gameTemp.activeEvent().eventId());
                var skill = userArray[1].currentAction();
                if (skill.area() > 0) {
                    $gameTemp.showArea(mainTarget.posX(), mainTarget.posY()); // Highlight AoE

                    // Filter targets to ensure they are in visible tiles
                    var aoe = $gameTemp._activeAoE;
                    var validTargets = $gameMap.events().filter(event => {
                        // Check if the event is within visible area and valid
                        var isVisible = aoe.visibleTiles.some(tile => tile.x === event.posX() && tile.y === event.posY());
                        if (!isVisible || event.isErased()) return false;

                        // Now check the targeting based on the skill's scope
                        if (skill.scope() === 1 || skill.scope() === 2 || skill.scope() === 6) {
                            // Skill targets enemies (e.g., One Enemy, All Enemies, All Units)
                            if (!event.isActor()) return false; // Exclude friendly units
                        } else if (skill.scope() === 3 || skill.scope() === 4 || skill.scope() === 6) {
                            // Skill targets friends (e.g., One Ally, All Allies, All Units)
                            if (event.isActor()) return false; // Exclude enemies
                        }

                        // If all checks pass, the event is a valid target
                        return true;
                    });

                    if (validTargets.length > 0) {
                        // Sort and prioritize targets (optional: based on skill metadata or distance)
                        validTargets.sort((a, b) => {
                            var distA = a.distTo(aoe.x, aoe.y);
                            var distB = b.distTo(aoe.x, aoe.y);
                            return distA - distB; // Prioritize closest targets
                        });

                        // Queue actions for valid targets
                        validTargets.forEach(target => {
                            $gameTemp.addAreaTarget({
                                item: skill.item(),
                                event: target
                            });
                        });

                        // Set the first valid target as the main target
                        var firstTarget = $gameTemp.areaTargets().shift();
                        if (firstTarget) {
                            $gameTemp.setTargetEvent(firstTarget.event);
                        }
                    }
                }
            }
        }
        _srpgInvokeAutoUnitAction.call(this);
    };


//==aoe los modified logic===
    // Find all the targets within the current AoE
    Game_Temp.prototype.selectArea = function(user, skill) {
        this.clearAreaTargets();
        var friends = user.isActor() ? 'actor' : 'enemy';
        var opponents = user.isActor() ? 'enemy' : 'actor';

        // Check if the targets are limited
        var limit = skill.areaTargetLimit();

        // Ensure _activeAoE is defined and has visibleTiles, set fallback if not
        var aoe = this._activeAoE;
        var targets = [];

        if (aoe && aoe.visibleTiles) {
            // Proceed with filtering targets if visibleTiles are available
            targets = $gameMap.events().filter(function(event) {
                if (event.isErased()) return false;

                // Check if event is in visibleTiles and not in blockedTiles
                var tileKey = event.posX() + ',' + event.posY();
                var isVisible = aoe.visibleTiles.some(tile => tile.x === event.posX() && tile.y === event.posY());
                var isBlocked = aoe.blockedTiles.some(tile => tile.x === event.posX() && tile.y === event.posY());

                if (isVisible && !isBlocked) {
                    if ((event.isType() === friends && skill.isForFriend()) ||
                        (event.isType() === opponents && skill.isForOpponent())) {
                        return true;
                    }
                }
                return false;
            });
        } else {
            // If visibleTiles is null, log the error and fallback to empty array
            console.error("Active AoE or visibleTiles is not defined.");
            // Optionally, provide feedback to the player, e.g.:
            // alert("You are selecting a tile outside the skill's range.");
        }

        // If no valid targets are found, return early or handle appropriately
        if (targets.length === 0) {
            console.warn("No valid targets within AoE range.");
            return false; // Early exit or adjust accordingly
        }

        // Sort targets by distance or other order
        var sortFunction;
        switch (skill.areaOrder()) {
            case 'random':
                sortFunction = () => Math.random() - 0.5;
                break;
            case 'far':
                sortFunction = (a, b) => {
                    var distA = a.distTo(aoe.x, aoe.y);
                    var distB = b.distTo(aoe.x, aoe.y);
                    return distB - distA;
                };
                break;
            case 'near':
            default:
                sortFunction = (a, b) => {
                    var distA = a.distTo(aoe.x, aoe.y);
                    var distB = b.distTo(aoe.x, aoe.y);
                    return distA - distB;
                };
        }
        targets = targets.sort(sortFunction);

        // Apply target limit
        if (limit > 0 && limit < targets.length) {
            targets = targets.slice(0, limit);
        }

        // Add targets to the AoE action queue
        targets.forEach(target => {
            this.addAreaTarget({
                item: skill.item(),
                event: target
            });
        });

        return true;
    };

    // work through the queue of actions
    var _srpgAfterAction = Scene_Map.prototype.srpgAfterAction;
    Scene_Map.prototype.srpgAfterAction = function() {
        var actionArray = $gameSystem.EventToUnit($gameTemp.activeEvent().eventId());

        if (actionArray[1].canMove() && $gameTemp.areaTargets().length > 0) {
            this.srpgBattlerDeadAfterBattle();
            var nextaction = $gameTemp.areaTargets().shift();

            // Check if nextaction and nextaction.item are valid before accessing
            if (nextaction && nextaction.item) {
                actionArray[1].srpgMakeNewActions();
                actionArray[1].action(0).setItemObject(nextaction.item);
                var targetArray = $gameSystem.EventToUnit(nextaction.event.eventId());
                $gameTemp.setTargetEvent(nextaction.event);
                $gameTemp.setSrpgDistance($gameSystem.unitDistance($gameTemp.activeEvent(), nextaction.event));//shoukang refresh distance

                if (_refocus) {
                    $gameTemp.setAutoMoveDestinationValid(true);
                    $gameTemp.setAutoMoveDestination($gameTemp.targetEvent().posX(), $gameTemp.targetEvent().posY());
                }
                $gameTemp.setShouldPayCost(false);
                $gameSystem.setSubBattlePhase('invoke_action');
                this.srpgBattleStart(actionArray, targetArray);
            } else {
                // Handle the case where nextaction or nextaction.item is invalid
                console.error("Invalid nextaction or missing item.");
                $gameTemp.clearArea();
                $gameTemp.clearAreaTargets();
                $gameTemp.setShouldPayCost(true);
                _srpgAfterAction.call(this);
            }
        } else {
            $gameTemp.clearArea();
            $gameTemp.clearAreaTargets();
            $gameTemp.setShouldPayCost(true);
            _srpgAfterAction.call(this);
        }
    };


    // override this to allow the AI to use fancy AoEs
    Game_System.prototype.srpgAIUnderstandsAoE = false;

    // AoE skills can be used as long as you're in the targeted area
    var _canUse = Game_BattlerBase.prototype.canUse;
    Game_BattlerBase.prototype.canUse = function(item) {
        if (item && $gameSystem.isSRPGMode() && this._srpgActionTiming != 1 &&
        Number(item.meta.srpgAreaRange) > 0) {
            // stop default AI from using AoEs with holes
            if (!$gameSystem.srpgAIUnderstandsAoE &&
            $gameSystem.isBattlePhase() !== "actor_phase" &&
            Number(item.meta.srpgAreaMinRange) > 0) {
                return false;
            }

            if ($gameSystem.isSubBattlePhase() === 'invoke_action' ||
            $gameSystem.isSubBattlePhase() === 'auto_actor_action' ||
            $gameSystem.isSubBattlePhase() === 'enemy_action' ||
            $gameSystem.isSubBattlePhase() === 'battle_window') {
                return $gameTemp.inArea($gameTemp.targetEvent()) || item.meta.cellTarget; //shoukang edit: check cellTarget tag
            }
        }
        return _canUse.call(this, item);
    };

    var _srpgBattle_isEnabled = Window_SrpgBattle.prototype.isEnabled;
    Window_SrpgBattle.prototype.isEnabled = function(item) {
        if (item && Number(item.meta.srpgAreaRange) > 0) {
            return this._actor && this._actor.canUse(item);
        }
        return _srpgBattle_isEnabled.call(this, item);
    };

//====================================================================
// Sprite_SrpgAoE
//====================================================================

    window.Sprite_SrpgAoE = function() {
        this.initialize.apply(this, arguments);
    };

    Sprite_SrpgAoE.prototype = Object.create(Sprite.prototype);
    Sprite_SrpgAoE.prototype.constructor = Sprite_SrpgAoE;

    Sprite_SrpgAoE.prototype.initialize = function() {
        Sprite.prototype.initialize.call(this);
        this.anchor.x = 0.5;
        this.anchor.y = 0.5;
        this._frameCount = 0;
        this._posX = -1;
        this._posY = -1;
        this.z = 0;
        this.visible = false;
    };

    Sprite_SrpgAoE.prototype.isActive = function() {
        return this._posX >= 0 && this._posY >= 0;
    };

    Sprite_SrpgAoE.prototype.update = function() {
        Sprite.prototype.update.call(this);
        if (this.isActive()){
            this.updatePosition();
            this.updateAnimation();
            this.visible = true;
        } else {
            this.visible = false;
        }
    };

    Sprite_SrpgAoE.prototype.setAoE = function(x, y, size, minSize, type, dir) {
        this._posX = x;
        this._posY = y;
        this.blendMode = Graphics.BLEND_ADD;

        if (this._size != size || this._minSize != minSize || this._type != type || this._dir != dir) {
            this._size = size;
            this._type = type;
            this._dir = dir;
            this.redrawArea(size, minSize, type, dir);
        }
    };

    //modified aoe los logic===
    Sprite_SrpgAoE.prototype.redrawArea = function(size, minSize, type, dir) {
        var tileWidth = $gameMap.tileWidth();
        var tileHeight = $gameMap.tileHeight();
        this.bitmap = new Bitmap(tileWidth * (1 + size * 2), tileHeight * (1 + size * 2));

        var aoe = $gameTemp._activeAoE;
        if (!aoe) return;

        aoe.visibleTiles.forEach(tile => {
            var dx = tile.x - aoe.x + size;
            var dy = tile.y - aoe.y + size;
            this.drawCell(this.bitmap, dx * tileWidth, dy * tileHeight, tileWidth, tileHeight, _areaColor);
        });

        aoe.blockedTiles.forEach(tile => {
            // Do not draw blocked tiles
        });
    };


    Sprite_SrpgAoE.prototype.drawCell = function(bitmap, x, y, tileWidth, tileHeight, color) {
        bitmap.fillRect(x, y, tileWidth, tileHeight, color);
    };


    Sprite_SrpgAoE.prototype.drawCell = function(bitmap, x, y, tileWidth, tileHeight) {
        bitmap.fillRect(x, y, tileWidth, tileHeight, _areaColor);
    };

    Sprite_SrpgAoE.prototype.clearArea = function() {
        this._posX = -1;
        this._posY = -1;
    };

    Sprite_SrpgAoE.prototype.updatePosition = function() {
        var tileWidth = $gameMap.tileWidth();
        var tileHeight = $gameMap.tileHeight();
        this.x = ($gameMap.adjustX(this._posX) + 0.5) * tileWidth;
        this.y = ($gameMap.adjustY(this._posY) + 0.5) * tileHeight;
    };

    Sprite_SrpgAoE.prototype.updateAnimation = function() {
        this._frameCount++;
        this._frameCount %= 40;
        this.opacity = (40 - this._frameCount) * 3;
    };

//====================================================================
// Spriteset_Map
//====================================================================

    // add the AoE sprite to the list
    var _Spriteset_Map_createTilemap = Spriteset_Map.prototype.createTilemap;
    Spriteset_Map.prototype.createTilemap = function() {
        _Spriteset_Map_createTilemap.call(this);
        this._srpgAoE = new Sprite_SrpgAoE();
        this._tilemap.addChild(this._srpgAoE);
    };

    var _Spriteset_Map_update = Spriteset_Map.prototype.update;
    Spriteset_Map.prototype.update = function() {
        _Spriteset_Map_update.call(this);
        if ($gameSystem.isSRPGMode()) {
            this.updateSrpgAoE();
        }
    };

    // refresh the AoE sprite
    Spriteset_Map.prototype.updateSrpgAoE = function() {
        var aoe = $gameTemp._activeAoE;
        if (aoe) {
            this._srpgAoE.setAoE(aoe.x, aoe.y, aoe.size, aoe.minSize, aoe.shape, aoe.dir);
        } else {
            this._srpgAoE.clearArea();
        }
    };

})();
