Skill Trees System

SomeFire · 2018-09-25T06:22:00+0900

Skill Trees System: v1.10 by SomeFireIntroduction This plugin allows you to create skill trees like in Diablo. Plugin is based on Emerald's Skill Trees for VX Ace. Screenshots Features - Old school skill trees. - Trees are shown in a separate scene, which can be opened in any way you want. - Skill can have 1 or more requirements like hero level, another skill, cost in skill points or number of already spent points in the tree. - Actor can get new trees during the game. For example, when he evolves to or receives a new class. How To Use - Copy the "SkillTreesSystem.js" and "SkillTreesConfig.js" files into your project's /js/plugins/ folder. - Activate plugin using the 'Plugin Manager'. - Read tutorial. - Open "SkillTreesConfig.js" file and read examples. - Edit "SkillTreesConfig.js" file by creating skill objects and trees. Works only in RPGMV 1.6+. If something works not as expected - check console log (F8 should open it). If you can handle error - just do it! If not - share error and stacktrace (if able) here. Terms of Use Free to use in any RPG Maker MV project including commercial. Credit "SomeFire" and, please, let me know about your game. v1.10: Code, Demo Plugin Development Feel free to help project with your ideas or improve the code. Spoiler: Changelog Version 1.10: - Added actor and tree to OnLearnAction.act() method. - Added text command to show unspent skills. - Added script calls to reset skills. - Fixed possible bug with big skill cursor when Window_Selectable spacing was overwritten. - Fixed bug when skill cooldown wasn't shown without MP/TP. - Fixed game crashes when actor have no trees. - Improved font size for long skill descriptions. Font will be lowered for long description. - Text for maxed skill level can be changed as plugin parameter. - Reworked example skills and demo. Version 1.9: - Show YEP skill cooldown and warmup. - Add possibility to use SP and JP simultaneously. - Add confirmation button to learn skills. Version 1.8: - Fixed bug which gives skill point on resetting empty tree. - Fixed MP and TP naming in skill description window. - Trees are updatable now. - Reworked separate points pool. - Added script call to hide tree. Version 1.7: - Added script calls to learn skills in skill trees. - Added scale factor for skill icons. - Added stats requirement. - Changed sound for skills unable to learn. Version 1.6: - Ensure cursor visibility for long trees. - Fixed bug with on learn actions. Version 1.5: - Items with ability to reset skill trees during the game. - Working message box commands for skill descriptions. - Draw skill cost (MP and TP). - bugfixes. Version 1.4: - Separate Points Pools for class trees. - YEP Job Points and class plugins integration. Version 1.3: - Fixed loading bug. Version 1.2: - Added item requirement. - Added game variable and game switch requirements. - Added on skill learn action to change game variables. - Colored requirements. - Skill points can be received on level up. Version 1.1: - Possibility to add trees during the game. - Added API section. Version 1.0: - Finished plugin!

● ARCHIVED · READ-ONLY

Started by SomeFire Sep 24, 2018, 09:22 PM 312 posts Page 3 of 16 View original ↗

artoni

#41 Jan 4, 2019, 06:44 PM Source

Visually this is exactly what I wanted, holey moley. I'll be testing this when I get home!

Hopefully this works with requiring variables to be a certain amount, and/or usages of previous skills :kaoswt2:
ThePotatoOfFire

#42 Jan 6, 2019, 03:42 AM Source

I started up the latest version of the demo, and was greeted with this error upon opening the main menu:

Bug Report
MyoGaming

#43 Feb 14, 2019, 05:17 AM Source

Tried deploying the default demo and YEP integration on android, came up with this error.

Bug Report
TypeError Failed to execute 'getImageData' on 'CanvasRenderingContext2D': The provided double value is non-finite.
SomeFire

#44 Feb 14, 2019, 06:12 AM Source

@ThePotatoOfFire, what is your RPGMV version? It should be 1.6+. Also, Skill Trees plugin should be placed below YEP plugins in plugin manager.

@MyoGaming, can you get the stacktrace?
MyoGaming

#45 Feb 14, 2019, 07:44 AM Source

SomeFire said:
@ThePotatoOfFire, what is your RPGMV version? It should be 1.6+. Also, Skill Trees plugin should be placed below YEP plugins in plugin manager.

@MyoGaming, can you get the stacktrace?

Hopefully this is what you're looking for.
By the way I'm loving the plugin, it works great on PC! :D

stacktrace
2019-02-13 23:21:44.727 3875-3875/? I/chromium: [INFO:CONSOLE(1949)] "TypeError: Failed to execute 'getImageData' on 'CanvasRenderingContext2D': The provided double value is non-finite.
at TypeError (native)
at Bitmap.getPixel (file:///android_asset/www/js/rpg_core.js:1197:30)
at Description_Window.Window_Base.textColor (file:///android_asset/www/js/rpg_windows.js:176:28)
at Description_Window.drawRequirements (file:///android_asset/www/js/plugins/SkillTreesSystem.js:834:22)
at Description_Window.refresh (file:///android_asset/www/js/plugins/SkillTreesSystem.js:784:22)
at Description_Window.showDescripion (file:///android_asset/www/js/plugins/SkillTreesSystem.js:740:10)
at Skills_Window.select (file:///android_asset/www/js/plugins/SkillTreesSystem.js:543:33)
at Skills_Window.selectLast (file:///android_asset/www/js/plugins/SkillTreesSystem.js:565:10)
at Scene_Menu.Scene_SkillTrees.onTreeOk (file:///android_asset/www/js/plugins/SkillTreesSystem.js:258:24)
at Trees_Window.Window_Selectable.callHandler (file:///android_asset/www/js/rpg_windows.js:902:31)", source: file:///android_asset/www/js/rpg_managers.js (1949)
SomeFire

#46 Mar 7, 2019, 01:19 PM Source
@MyoGaming, sorry, it tooks too long for me to handle with android, but I succesfully launched the demo. I used AltimitSystems mv-android-client, demo didn't started on emulator (just hangs with gray screen), but works normally on my phone in USB-debug mode. I got no errors on my phone.

I suppose, it is android project or emulator/phone issue. Did you tried different android devices?

Also, try latest demo (I see difference in the stacktrace and the code). If it doesn't help - try to change code in SkillTreesSystem.js
Code:
Description_Window.prototype.drawRequirements = function(reqs, y) { var color = this.textColor();
to
Code:
Description_Window.prototype.drawRequirements = function(reqs, y) { var color = this.textColor(0);
MyoGaming

#47 Mar 10, 2019, 12:15 AM Source
SomeFire said:
@MyoGaming, sorry, it tooks too long for me to handle with android, but I succesfully launched the demo. I used AltimitSystems mv-android-client, demo didn't started on emulator (just hangs with gray screen), but works normally on my phone in USB-debug mode. I got no errors on my phone.

I suppose, it is android project or emulator/phone issue. Did you tried different android devices?

Also, try latest demo (I see difference in the stacktrace and the code). If it doesn't help - try to change code in SkillTreesSystem.js

Code:
Description_Window.prototype.drawRequirements = function(reqs, y) { var color = this.textColor();
to

Code:
Description_Window.prototype.drawRequirements = function(reqs, y) { var color = this.textColor(0);
Sorry for late response, but changing the code worked thank you very much!
mazzy-elf

#48 Mar 21, 2019, 04:48 PM Source

This is exactly what I'm looking for unfortunately as soon as I switch it to Yanfly's JP mode nothing loads at all, I tried downloading your demo to see if I was doing something wrong, but the same thing happens, it works fine with SP but if its JP its just a Black screen that never loads up the game.
Kraden96

#49 Mar 27, 2019, 08:36 AM Source

Would it be possible to make a skill tree disconnected from an actor? I want to have a Party Skill Tree that effects the whole party instead of just one actor! :)
falken14

#50 Apr 25, 2019, 04:29 AM Source

mazzy-elf said:
This is exactly what I'm looking for unfortunately as soon as I switch it to Yanfly's JP mode nothing loads at all, I tried downloading your demo to see if I was doing something wrong, but the same thing happens, it works fine with SP but if its JP its just a Black screen that never loads up the game.

I'm not sure if you solved your problem, but if not: you can't have the plugin parameters 'Single Points Pool' and 'Use Job Points' both set as true. Only one can be true (because of how Job Points work, with separate job points for each class).

(@SomeFire, this might need to be mentioned in the plugin help file or on the first post - I got tripped up here as well).
steexyz

#51 May 3, 2019, 12:06 PM Source

Hi there,

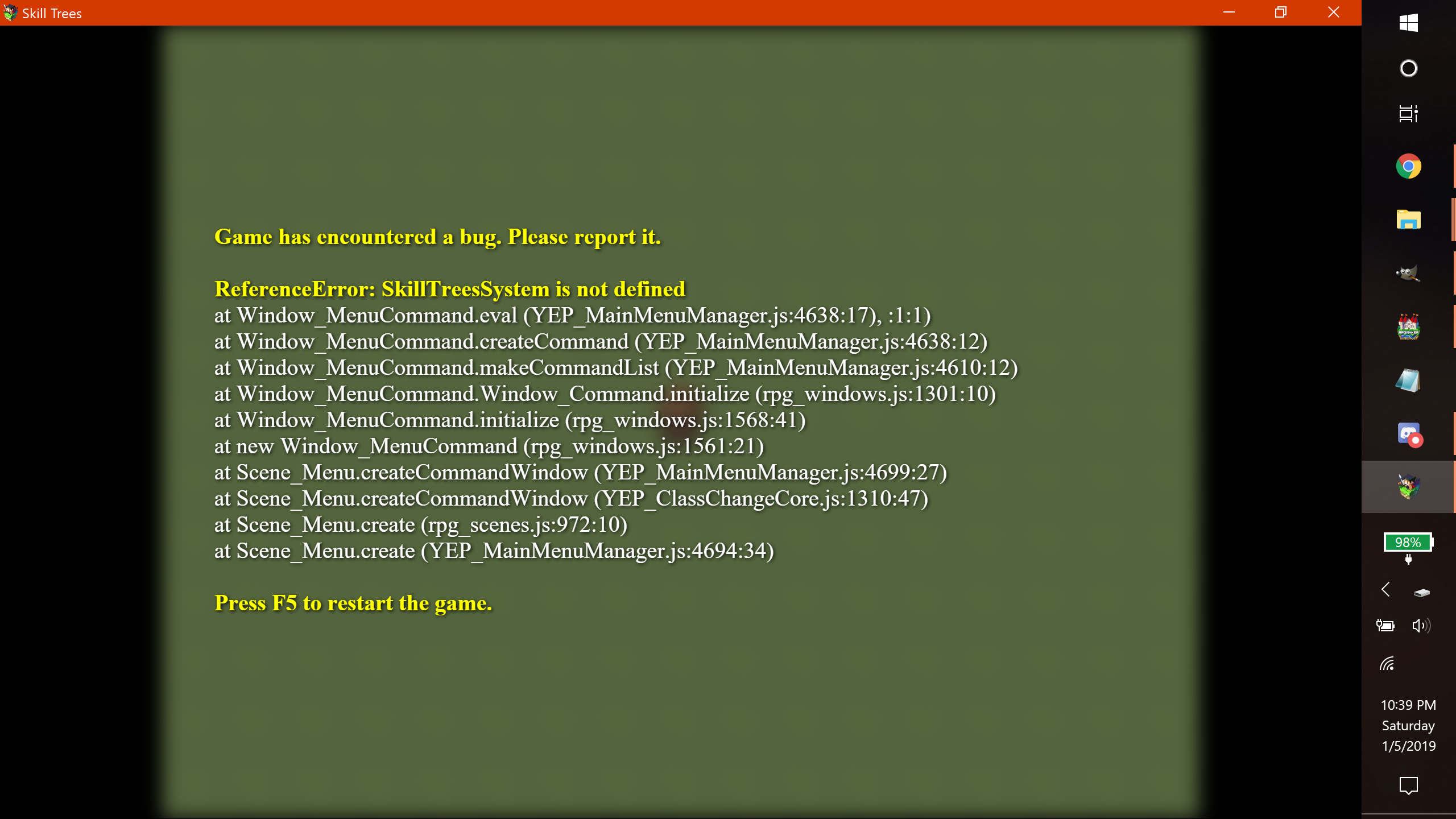

I think I've done all the setup requiered like the demo of 1.4 but it seems I'm always getting ReferenceError SkillsTreesSystem is not defined when I'm in my personnal project.

I'm using example skill tree already in the config plugin.

I swear I think I did the same config as the demo that is working but it seems something is still of, any idea?

I've bind the menu too which give me the error above now.

PS: I use 1.6.2
EDIT:

Stack :

ReferenceError: SkillsTreesSystem is not defined
at eval (eval at Window_MenuCommand.createCommand (YEP_MainMenuManager.js:4641), <anonymous>:1:1)
at Window_MenuCommand.createCommand (YEP_MainMenuManager.js:4641)
at Window_MenuCommand.makeCommandList (YEP_MainMenuManager.js:4610)
at Window_MenuCommand.Window_Command.initialize (rpg_windows.js:1301)
at Window_MenuCommand.initialize (rpg_windows.js:1568)
at new Window_MenuCommand (rpg_windows.js:1561)
at Scene_Menu.createCommandWindow (YEP_MainMenuManager.js:4699)
at Scene_Menu.create (rpg_scenes.js:972)
at Scene_Menu.create (YEP_MainMenuManager.js:4694)
at Function.SceneManager.changeScene (rpg_managers.js:2005)
SceneManager.catchException @ rpg_managers.js:1949

Thank you

FIXED - Defined SkillsTreesSystem instead of SkillTreesSystem

EDIT: I added class2trees to my actor, it's fine I see my Warrior tree but there is an undefined tree left in the windows I can select but once I double clicked it, it freeze. How can I remove the undefined tree that persist? I tried commenting every other possible tree but I feel the issue is in the rendering.

So I just want to display a single tree.

@SomeFire

FIXED - Was adding a class2trees to my actor. It is not required.
SomeFire

#52 May 7, 2019, 08:03 PM Source

@steexyz, I can't reproduce it. I left only one tree in `class2trees`, and I see only this tree in the game. Can you share project with this bug?

@Kraden96, it is possible, but I will not do it, because I want plugin to be actor oriented. I will not support both ways, because it is too difficult.

You can edit plugin for your needs. Looks like you need only 2 changes: skip actor select window and apply skills for whole party instead of single actor.

@falken14, I'll mention it in the next update.
slimmmeiske2

#53 May 8, 2019, 08:36 AM Source

steexyz, please avoid double posting, as it is against the forum rules. You can use the "Edit" function on your posts to add additional information you've forgotten or respond to multiple people. You can review our forum rules here. Thank you.

SomeFire, please avoid double posting, as it is against the forum rules. You can use the "Edit" function on your posts to add additional information you've forgotten or respond to multiple people. You can review our forum rules here. Thank you.

I merged your posts together this time.
steexyz

#54 May 8, 2019, 01:13 PM Source

@SomeFire, I found the issue. I was adding the class2trees to my actor but it seems the plugin do it and I don't need to specify it.
@slimmmeiske2 Sorry about that!
jbtwist

#55 May 10, 2019, 10:20 AM Source

I would like to call a common event when learning a skill with this plugin, is that possible?
SomeFire

#56 May 12, 2019, 08:46 AM Source

@jbtwist, yes, you can create `OnLearnAction` class, which will call a common event, and add it to appropriate skills. Or you can edit plugin and a call in `Skill#learn(actor, tree)` method, so, common event will be called for every learned skill.
jbtwist

#57 May 12, 2019, 04:46 PM Source

@SomeFire can you write me an example of that? I just want to call one or another common event depending of the skill learned
SomeFire

#58 May 12, 2019, 07:45 PM Source

See common event call at this list.

Version 1.5:
- Items with ability to reset skill trees during the game.
- Working message box commands for skill descriptions.
- Draw skill cost (MP and TP).
- bugfixes.
jbtwist

#59 May 25, 2019, 08:01 PM Source
Hi, ive tried to call a common event, but i cant. I tried copying the way you change the game variables, but i also noticed that gamevariables are not changing in my project. It may be because some plugin?

This is my code:
Code:
class OnLearnCommonEvent extends OnLearnAction { /** */ constructor(value) { super("game_temp"); this.val = value; } action() { $gameTemp.reserveCommonEvent(this.val) } } function common_Event(value) { /** var a = new OnLearnCommonEvent(value); a.action(); return a; */ return new OnLearnCommonEvent(value); }
What is happening is that $gameTemp or $gameVariables are not defined (equal null) on that context. I've been trying, but havent found a way to fix that.
The comented section was a way to try to force the summoning of action, because it were not happening in my game naturally.
SomeFire

#60 May 26, 2019, 11:32 AM Source

Version 1.6:
- Ensure cursor visibility for long trees.
- Fixed bug with on learn actions.

jbtwist said:
i also noticed that gamevariables are not changing
Thx for finding this bug, it was appeared long time ago...

Given code works for me, but I see a big problem - event is happened only after I return to game (close menu). Also, not all events, but only last "learned".
