MV3D - 3D rendering for RMMV with Babylon.js

Update 0.5.4

• interact diagonally
• change backface culling for ceiling separate from everything else. Also affects camera collision.
• resolution scale plugin command
• plugin command to change camera collision
• more camera collision options
• can now change names of option menu options
• fix animation offset with resolution scale
• fix animation scaling when using camera collision
• fix tileset settings not being loaded sometimes when loading game
• fix camera angles etc not being preserved when loading game
• fixed error when transferring player during map load
• (premium) fix changes to skybox from plugin command when loading game

There are now two types of camera collision. I couldn't think of a concise way to describe them, so they're called Type1 and Type2.
Type1 - Camera collides with any object between the player and the camera.
Type2 - Camera only collides with objects between player and camera if it would be inside a wall at normal distance.

The animation and loading bugs should be fixed now.

@Yevn125
I don't currently have plans to add diagonal slopes, but it's something I might add in the future.
Slopes have complicated collision rules, and diagonal slopes would be even more complicated. If I find a way to simplify the logic I might add them. If I add corner slopes though I'd want to add both inner corners and outer corners.

You can use fringe(2) in the tileset configuration to make a tile float above the one below it, giving the player room to walk under it.

@palatkorn
Instead of using a move route to set the event's position couldn't you use <mv3d: pos(8,3)>?

Update 0.5.4

• interact diagonally
• change backface culling for ceiling separate from everything else. Also affects camera collision.
• resolution scale plugin command
• plugin command to change camera collision
• more camera collision options
• can now change names of option menu options
• fix animation offset with resolution scale
• fix animation scaling when using camera collision
• fix tileset settings not being loaded sometimes when loading game
• fix camera angles etc not being preserved when loading game
• fixed error when transferring player during map load
• (premium) fix changes to skybox from plugin command when loading game

There are now two types of camera collision. I couldn't think of a concise way to describe them, so they're called Type1 and Type2.
Type1 - Camera collides with any object between the player and the camera.
Type2 - Camera only collides with objects between player and camera if it would be inside a wall at normal distance.

The animation and loading bugs should be fixed now.

@Yevn125
I don't currently have plans to add diagonal slopes, but it's something I might add in the future.
Slopes have complicated collision rules, and diagonal slopes would be even more complicated. If I find a way to simplify the logic I might add them. If I add corner slopes though I'd want to add both inner corners and outer corners.

You can use fringe(2) in the tileset configuration to make a tile float above the one below it, giving the player room to walk under it.

@palatkorn
Instead of using a move route to set the event's position couldn't you use <mv3d: pos(8,3)>?

...resolution?
as in, change resolution mid-game?
I didn't try it yet, is itin the new version or an external plugin?

I tested the new version and, this time, everything seems to be working correctly.
There are two things in particular that I want to thank you for:
The first is to include the ideas that I gave you before.
The second is to have unminified the code, so it is easier to fix some bugs on my own.
So thank you so much!

I found a crash, but I already fixed it.
So I'm going to share it here for you to include in the next patch and help others.

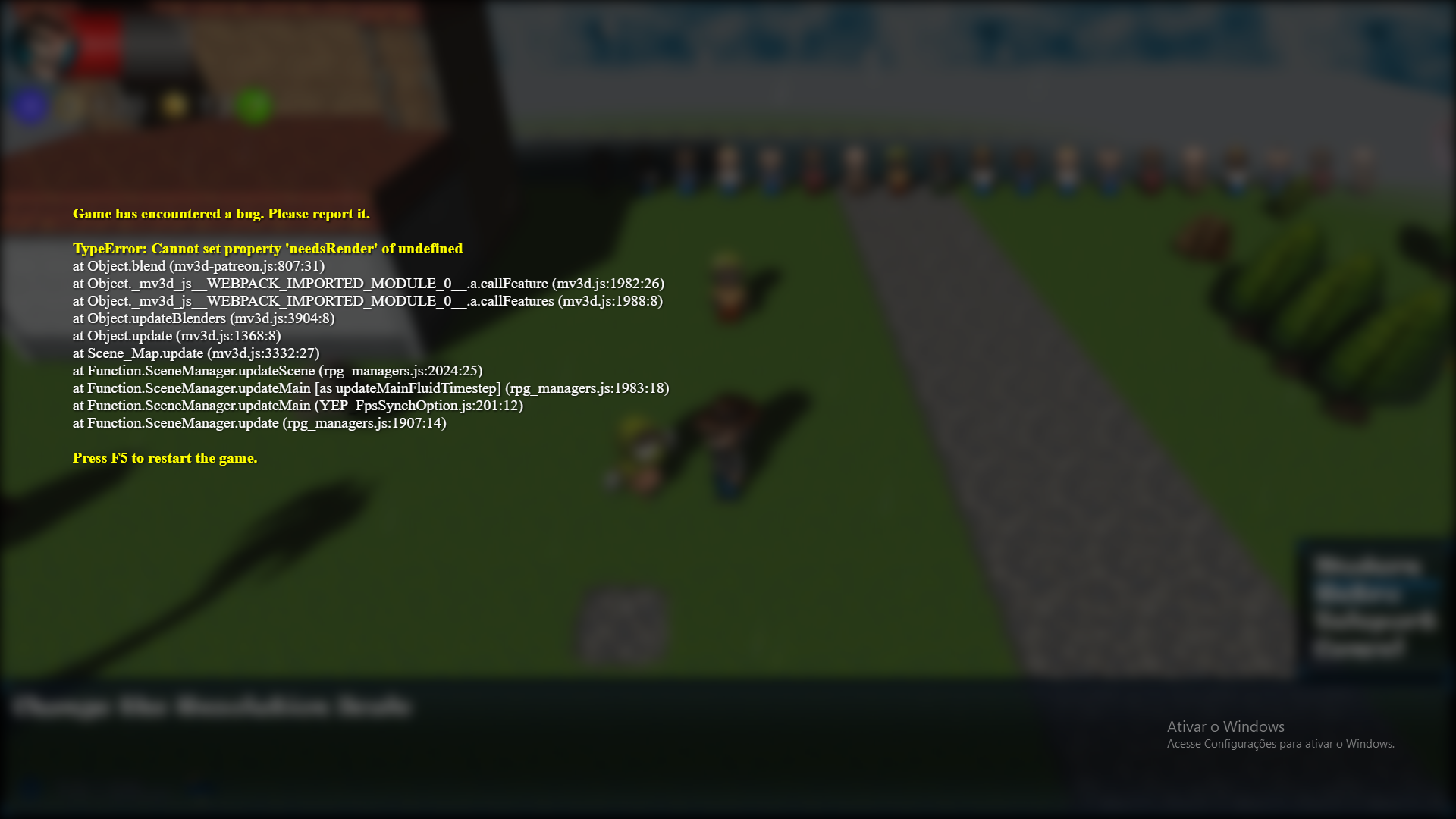

The Crash:
If you are using mv3d-patr3on.js 0.5.4 and try to change the resolution scale via plugin command and you have not defined any skybox, then the game will crash.

View attachment 138688

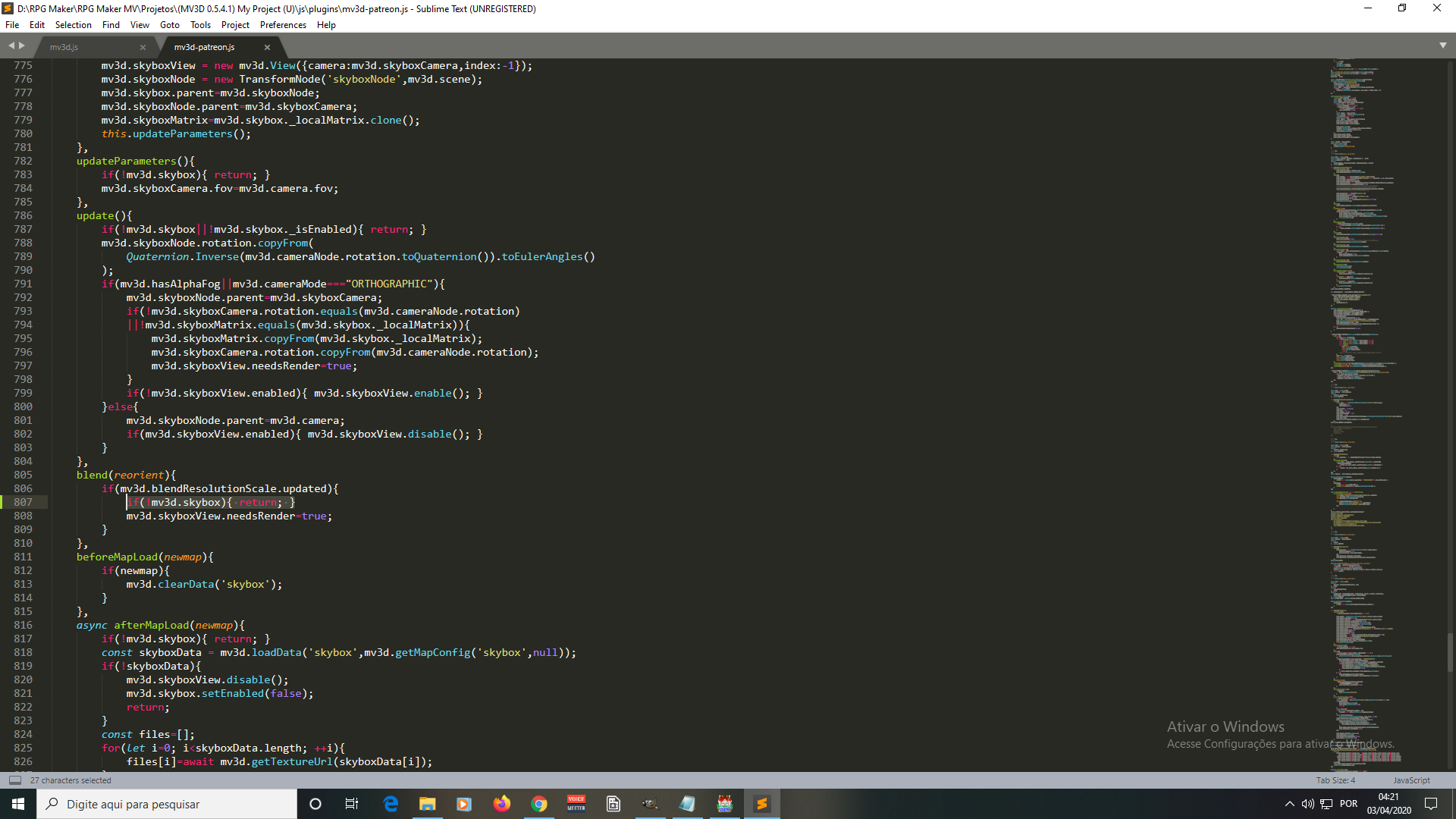

The Fix:
Include this condition below (line 807) in the mv3d-patr3on.js file, so then it will not return as undefined skybox, it will ignore it in this case.
View attachment 138689

With that, we can say that all the new features are working perfectly.

I have a suggestion:
Could you make possible to use a variable as a target?

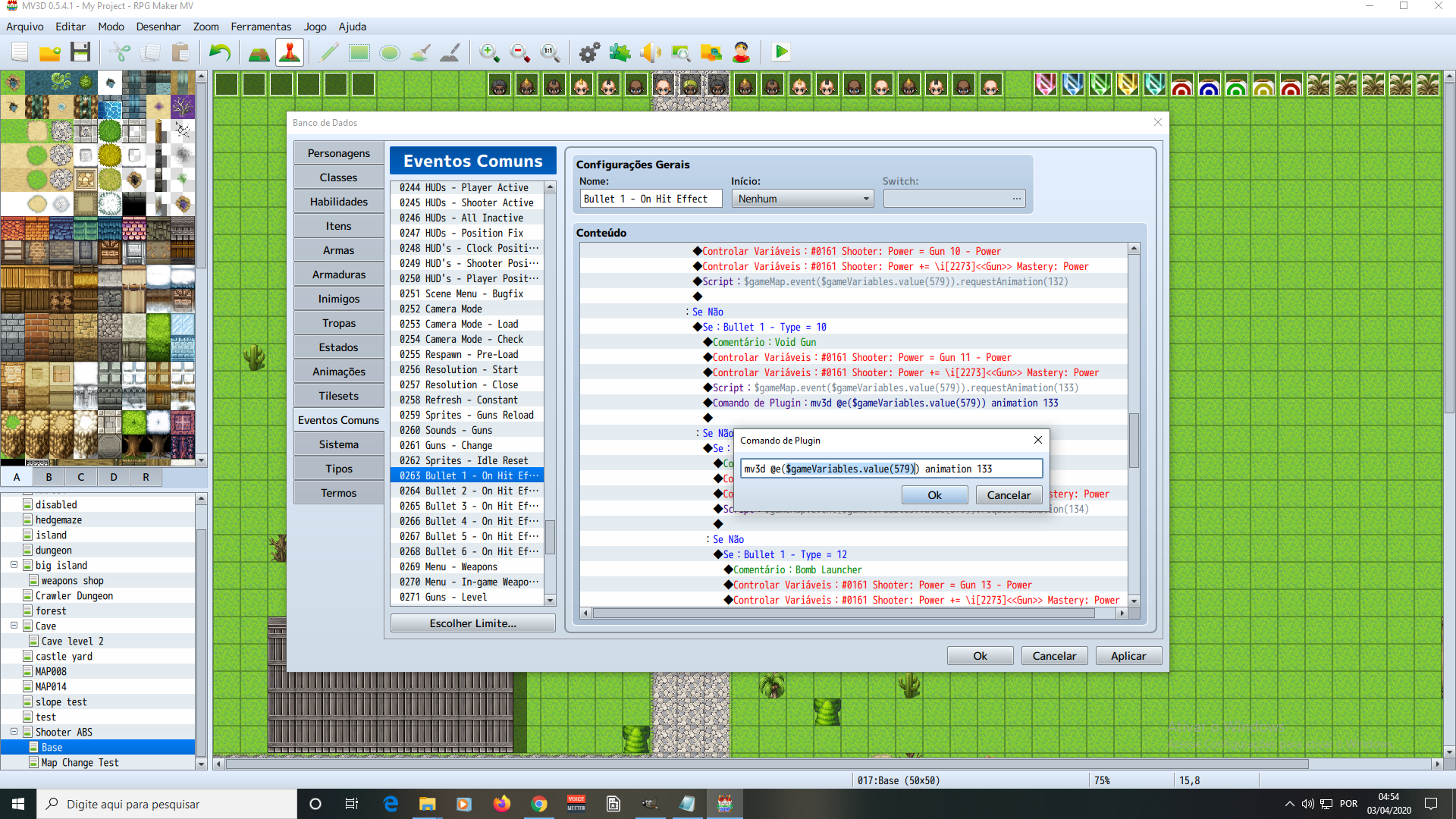

Here goes the screenshot as an example.

View attachment 138690

I use the following script to get the target of a variable and apply the animation to the correct event. (In this case, the enemy affected by the shot in the ABS)
Ex.: $gameMap.event($gameVariables.value(579)).requestAnimation(133)
But when trying to adapt to mv3d animation, I realized that I can't use a variable as a target, just fixed targets.
I would like to do this to apply depth to these animations, as you programmed into the animations of mv3d itself.

Thank you for all the help!
Keep the good work! :awink:


Let me show a cool thing that i did with these new features

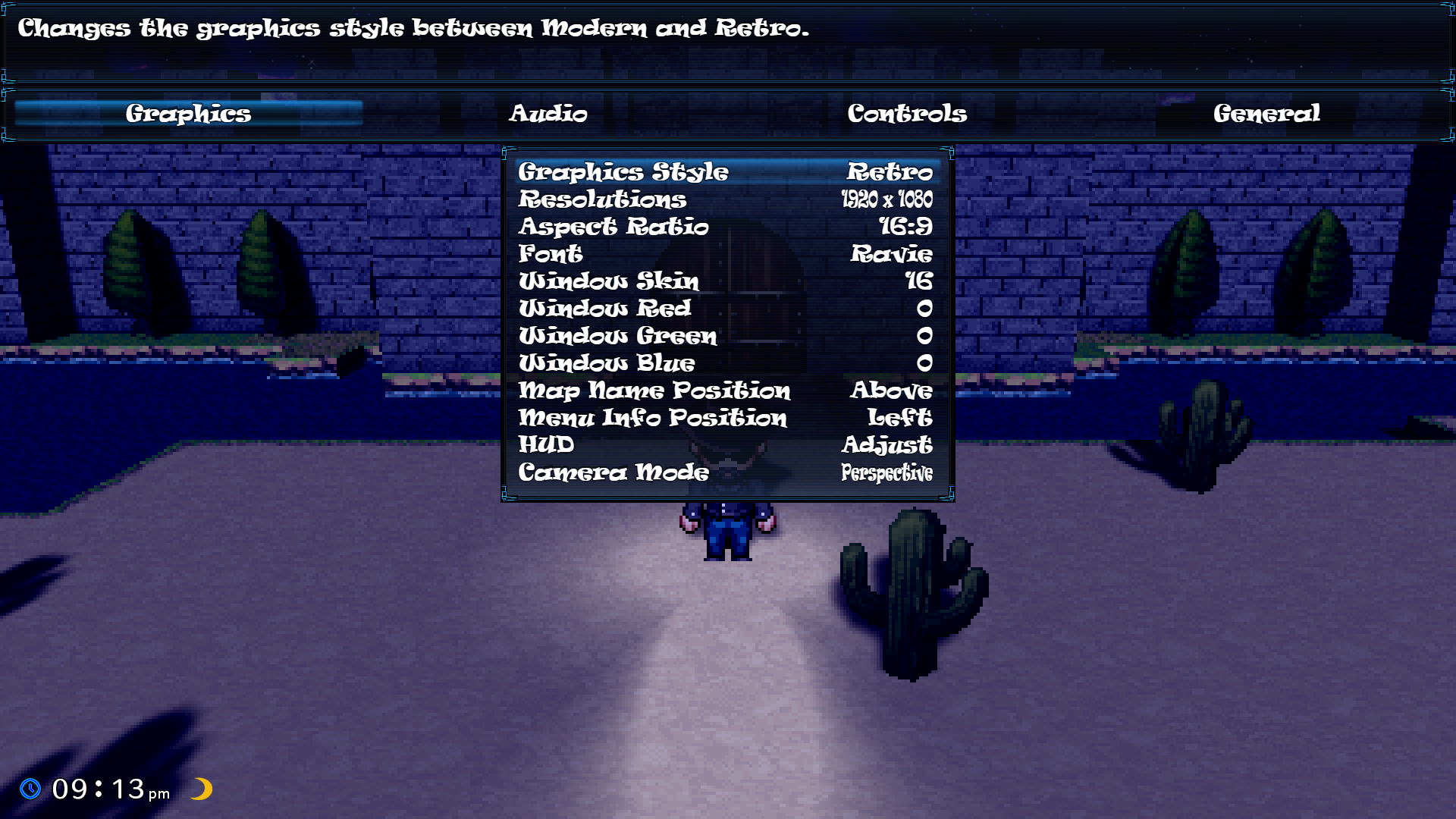

Graphics Style Option
View attachment 138693

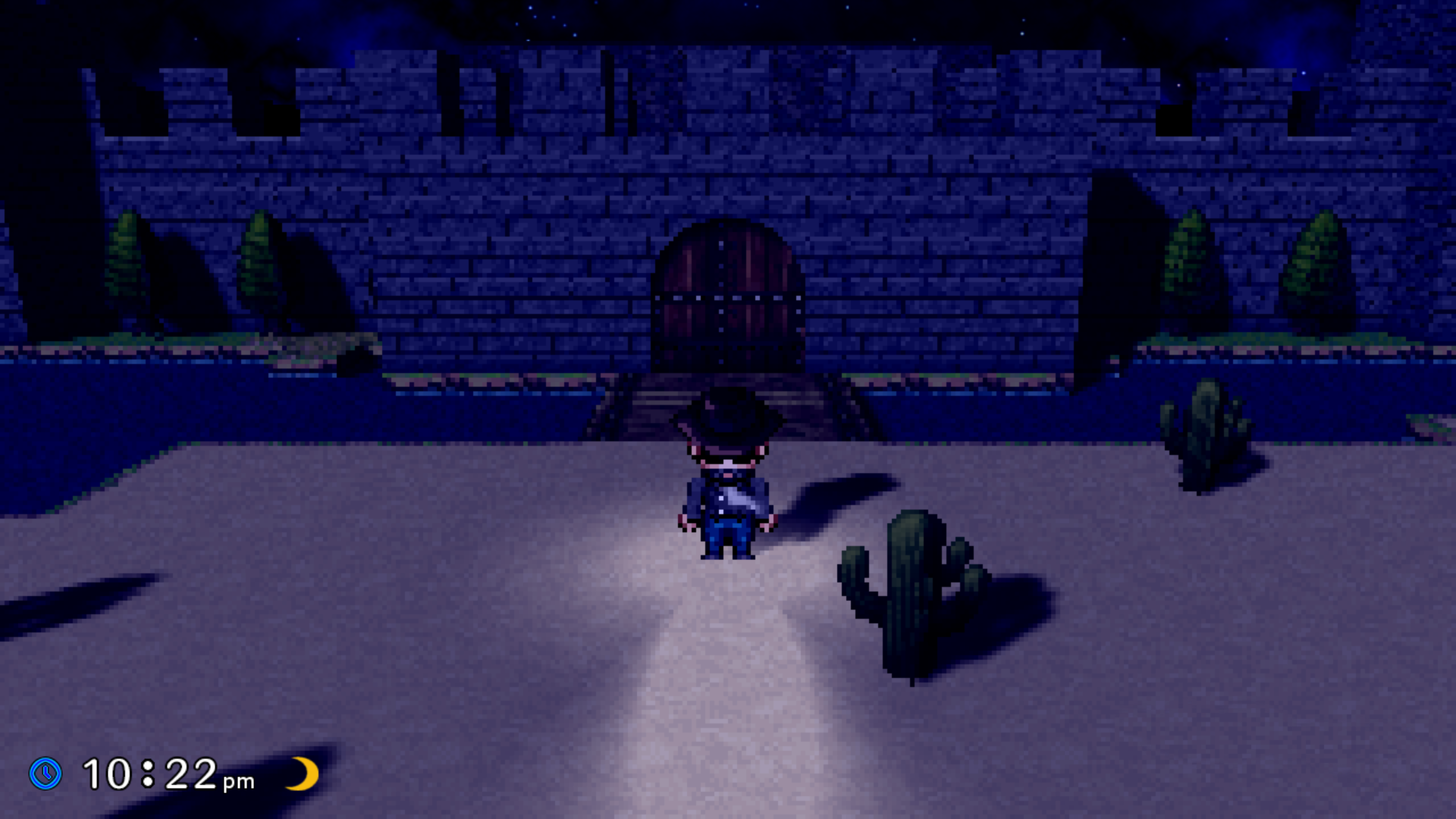

Nyana's Castle Retro Style 720p
View attachment 138697

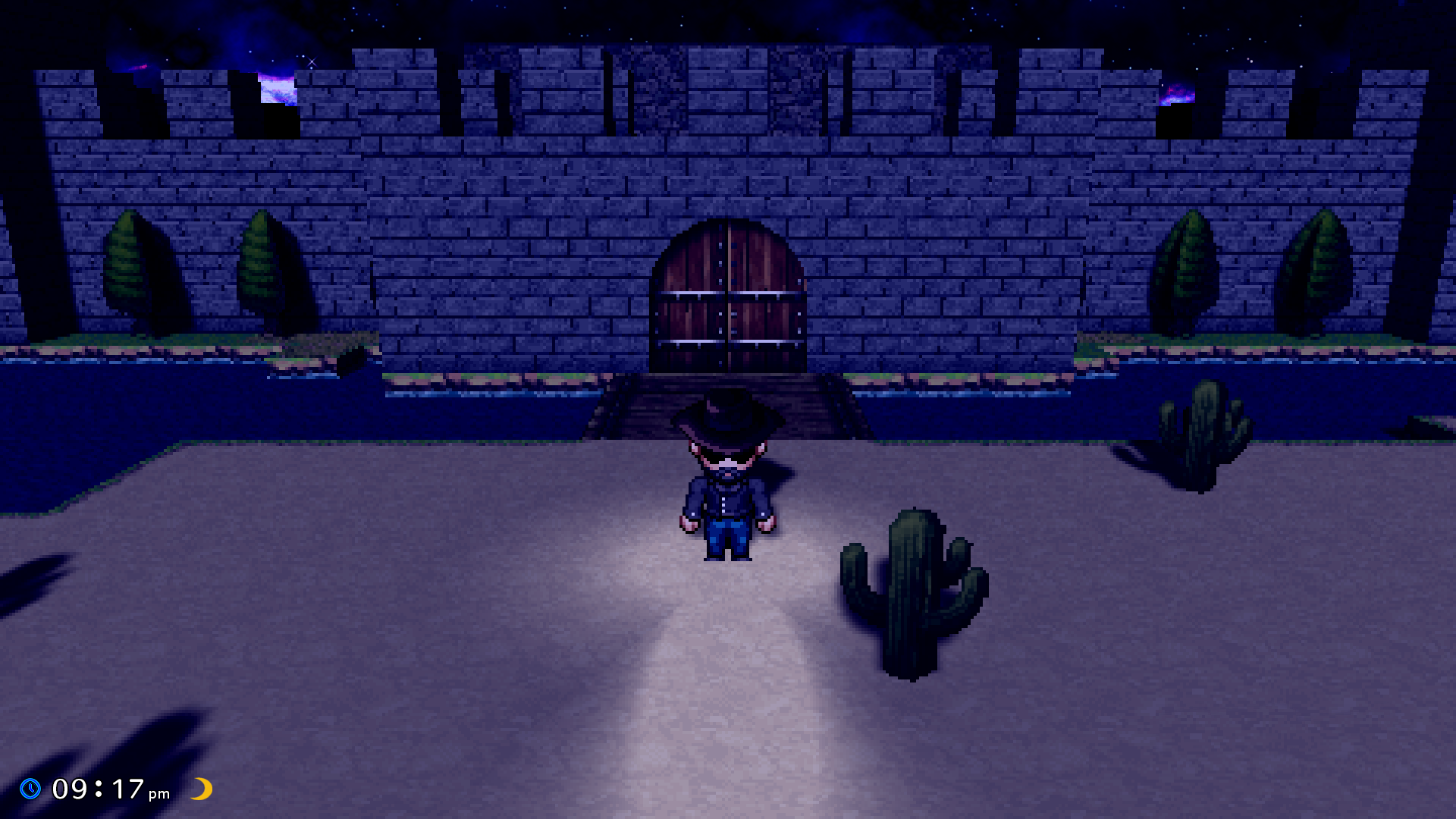

Nyana's Castle Retro Style 1080p
View attachment 138694

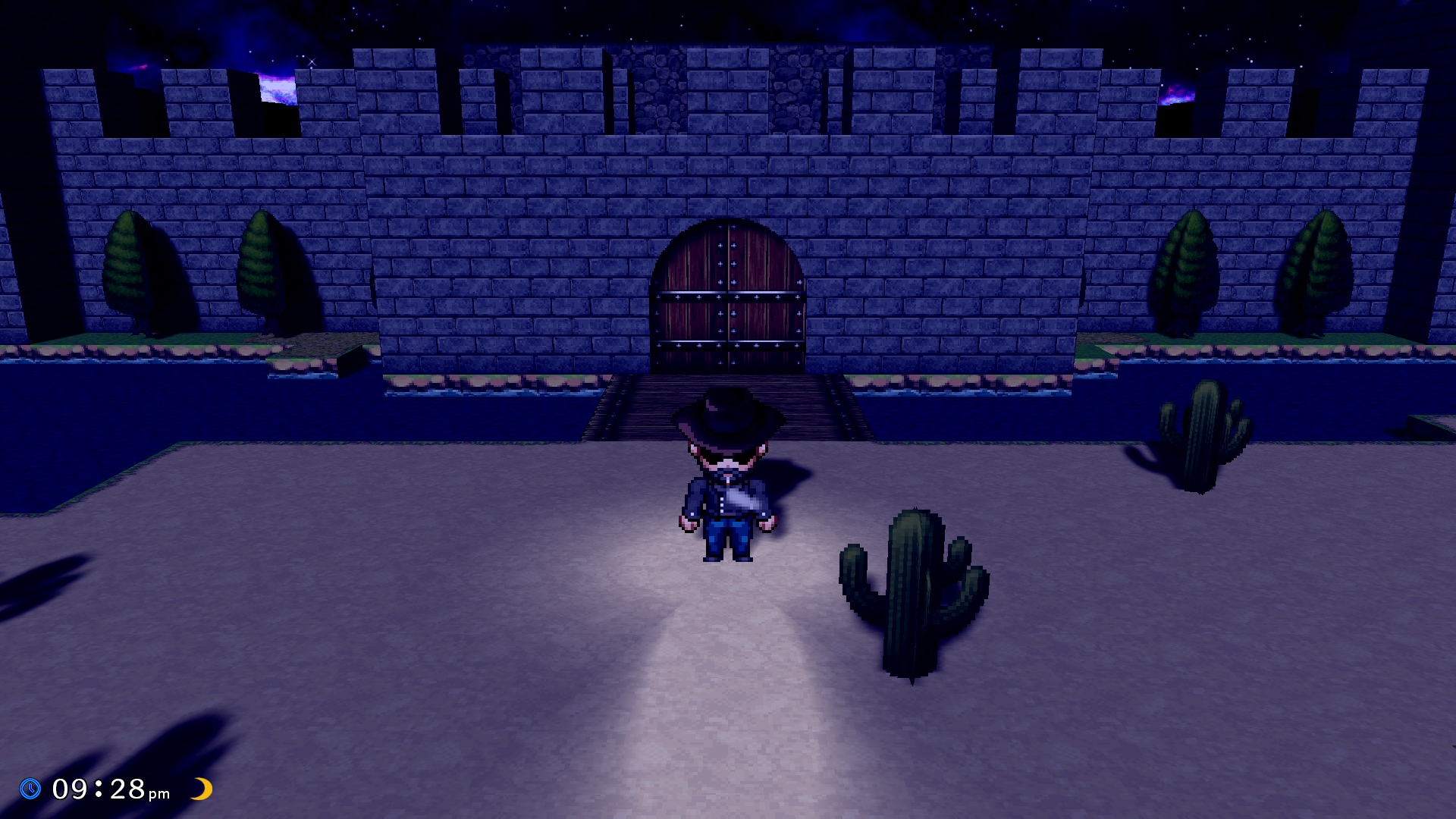

Nyana's Castle Modern Style 1080p
View attachment 138695

Reduced resolution, increased FPS?

No, I mean, will make the game faster too or not while selecting the 720p thumbnail option

interesting.
would need more work on the menus and the like so they change size properly, but with dread adding resolution scale the maps themselves wouldn't suffer so much impact. default 2d maps suffer a bit becausein big resolutions the characters are much tinier than the map.
what plugin are you using that changes it mid-game?
do you think this is an actual but or just compatibility? I'll be honest, chances of the later are high in this case

Oh didn't even realize new version isn't minified, I had just learned how to build it with minimize false webpack from source files 2 days ago, I also learned how to unminify with sourcemap a few days before that, then literally 2 minutes later I saw the source files already unpacked files in webpack folder.

EDIT: Also @CoopNinjask it's not hard to make a function that calls a plugin command with variable access, Yanfly also has 1 for a dollar.
this.pluginAnimation(); inside script call would call it.

Oh didn't even realize new version isn't minified, I had just learned how to build it with minimize false webpack from source files 2 days ago, I also learned how to unminify with sourcemap a few days before that, then literally 2 minutes later I saw the source files already unpacked files in webpack folder.

EDIT: Also @CoopNinjask it's not hard to make a function that calls a plugin command with variable access, Yanfly also has 1 for a dollar.
this.pluginAnimation(); inside script call would call it.

Here are a few tips that everyone can do.
If really wanting to do two systems, it may be necessary to create a parallel map.
Actually, just make the same map to 3D and use the same map only.
You may have to specify the map number in order to return to the current map.

I can't see the video, you put it as private.
