Galv's Map Projectiles

Galv · 2016-09-14T10:53:49+0900

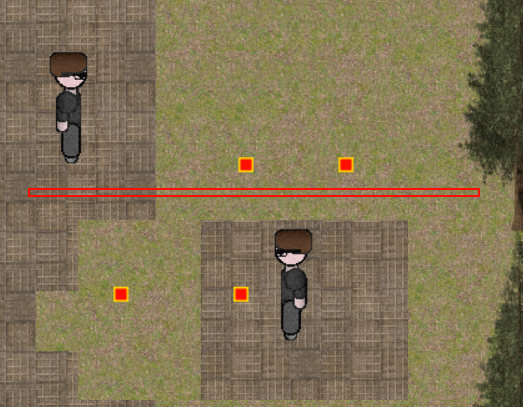

Map Projectiles - Version 1.7 RPG Maker MV Plugin Galv Introduction Make puzzles, traps or whatever with projectiles. Screenshot Features Create projectiles that can interact with player and events using script calls. These projectiles can be fired from the player or an event and set to shoot in a direction or at a target. Settings can be used to control which projectiles will hit or run an action on other events, which terrain tag or region id tiles block them, different actions they will do when then hit the player or an event and more. How to Use - Copy the "GALV_MapProjectiles.js" file into your project's /js/plugins/ folder. - Activate plugin using the 'Plugin Manager' - Read the help file and examine the demo to learn how it works - Uses pictures from /img/pictures/ folder Plugin Get it here Credit and Thanks - Galv Terms Free to use in any RPG Maker MV project including commercial. Please credit "Galv". Updates 2017-07-18 - Version 1.7 - added size setting to projectiles to mimic larger hitboxes 2017-04-20 - Version 1.6 - fixed angle of fire when using yoffset and targeting characters 2017-02-09 - Version 1.5 - fixed a bug stopping effects on the player 2017-01-25 - Version 1.4 - added ability to specify a list of projectile ids on on an event which will activate the event actions. 2016-11-09 - Version 1.3 - added animated projectiles, changed hit detection for events to their real x,y instead of their tile x,y, added shooting to mouse location, added fadeout when projectiles reach their max range. 2016-10-31 - Version 1.2 - fixed a crash if an event has no active event page 2016-09-25 - Version 1.1 - fixed a bug with the normal Switch changes 2016-09-14 - Version 1.0 - Release

● ARCHIVED · READ-ONLY

Started by Galv Sep 14, 2016, 01:53 AM 197 posts Page 9 of 10 View original ↗

Galv

#161 Jun 1, 2021, 12:25 PM Source

Does it lag for you in the demo? It might be a combination of plugins?
fizzly

#162 Jun 2, 2021, 09:57 AM Source

Hey @Galv,maybe you can create something like "pop out" particles in your plugin? It would be so cool, I mean effect like this in the link below. I know it's a little offtopic, but... You're talented, so I wanted to ask.

MV - /RMMZ Items pop-out as a particles?
EndlessGame

#163 Jun 8, 2021, 02:31 AM Source

Galv said:
Does it lag for you in the demo? It might be a combination of plugins?
No, the demo doesn't lag. If it's a combination of plugins, is there any way to quickly find the problem? I'm assuming I have to disable each and every one manually and figure it out.
classlion1

#164 Jul 9, 2021, 07:11 AM Source

Hi. Bullet its rotate and i dont need that. My sprite is nonstandart. Can you say me, haw i can fix it?
KotoYama

#165 Jul 9, 2021, 10:41 PM Source

classlion1 said:
Hi. Bullet its rotate and i dont need that. My sprite is nonstandart. Can you say me, haw i can fix it?
What do you mean rotate? They won't "rotate" unless having a specific animation for it. Could u maybe send us a gif? Or just explain it better
classlion1

#166 Jul 10, 2021, 10:18 AM Source

KotoYama said:
What do you mean rotate? They won't "rotate" unless having a specific animation for it. Could u maybe send us a gif? Or just explain it better
when i shoot in left, bullets move from leds, but when i shoot in right - its normal. Its happend just because my bullet has spase in bottom.
Bryanh

#167 Aug 5, 2021, 05:05 PM Source

For the life of me I can't figure out how to make individual events self switch when a projectile hits when I have <projEffect> the event just disappears

Edit: Nevermind think I worked it out now :)
SpritesOnInstinct

#168 Sep 19, 2021, 12:32 AM Source

I have an event running parallel with inside
If : Button [Pageup] is being pressed
Script : Galv.PROJ.quickTar(1);

End

And a projectile doesn't fire when I hit Pageup

Now if instead of the script call I have...

Transfer Player : Caves of the Beast (27,45)

After I run playtest, when pageup is pressed, the main character transfers to the same map at 27,45.

Therefore it's the script call that doesn't work. I assumed that script fires the projectile in the manner of premade projectile 1 (that one can set in the settings).

Could someone please help me figure out how to use this plug in correctly and make my main character launch a projectile.
Shaz

#169 Sep 19, 2021, 12:37 AM Source

[mod]I have merged your thread with the thread for the plugin[/mod]

Nobody ever said Plugins were Plug'n'Play - in fact we always emphasize that they're NOT. The term Plugin simply refers to the way in which you add them to the game - you do not have to edit any scripts or copy/paste anything to get them in there.

Please show us your parameter settings for Premade 1.
EthanFox

#170 Oct 13, 2021, 09:05 AM Source

Hey @Galv, question - could I be a pain and trouble you for a very small extension in functionality?

The function you added, Galv.PROJ.ceTargetId() - it's extremely useful, as it allows me to group the effects of projectiles together in one common event.

However, in my game, I have projectiles with different damage values; e.g. a small proj may deal 1 damage while a big proj may deal 10, and at present, I don't have any way of grouping this - I would need to have a different common event for each projectile type.

I could really do with a Galv.PROJ.cePID() , which returns the PID of the projectile that did the damage. Then, I can do IF statements on the TargetID to see what was hit, and within those, IF statements on the PID to see what actually hit them. With that, I can have a master "onProjectileHit" common event that functions kinda like a callback.

I'm sure this is a ~5 line change, but I'm not much of a scripter and I've been trying to add this functionality for several hours this morning with no luck.

EDIT: Also Galv, are you aware of any plugin which would allow enemies to have a larger hitbox size that works with your plugin, that just does that, and doesn't involve an entire movement system?
Bryanh

#171 Nov 30, 2021, 04:54 PM Source

Hi is there a plugin command to disable the plugin on certain maps?
EthanFox

#172 Nov 30, 2021, 04:57 PM Source

Bryanh said:
Hi is there a plugin command to disable the plugin on certain maps?
Hey, not Galv but I've used this plugin a lot.

I don't think there's a way to disable it. However, you have to actually script players/enemies to fire projectiles, so you could just have a switch to enable/disable that functionality in situations where you don't want it to happen.
Skurge

#173 Dec 15, 2021, 08:10 AM Source

Just out of curiosity, I may work on a side project using this plugin but is there a way that projectiles themselves can produce a light source in align with lighting plugins such as Terrax's and Khas's ones?

Also a side note, I know most RPG developers tend to use the one tile rule due to the graphics the RTP tends to follow, but are there options for developers using this plugin for games that use taller graphics and tiles?

Me for example, I like to use the whole RPG XP format where terrain and events are two tiles taller than what VX,MV,MZ use, I wonder if the hitbox collisions can differ for walls when it comes to corners and such.

I hope I make sense of this btw.
Galv

#174 Dec 15, 2021, 04:56 PM Source

Lighting likely won't work on projectiles without major compatibility coding.
The hit collision is based on tile position, not how tall the sprite is. So if you had a really tall sprite, you'd only hit the tile it is standing on.
retrofiction

#175 May 29, 2022, 01:41 AM Source

Hey. A quick question: I was having lots of trouble with the collision as I'm using big characters in my game. However, after doing lots of testing and trial-and-error with the hitbox size, I reached a satisfying solution by raising the tile size in the plugin options from 48 to 150. My game however still runs with 48px sized tiles. Will changing the value to 150 in the plugin cause any issues down the road that I might not foresee .. ?
Galv

#176 May 29, 2022, 08:44 AM Source

Difficult to answer that one, depends on how you build your game. The only thing I can think of is if you ever want a projectile to hit a smaller sized object, you won't be able to.
IntoTheDrink

#177 Aug 15, 2022, 03:49 PM Source

My projectile is supposed to fire a common event, I have <projEffect> on the event that I'm shooting. Yet it's still not being activated.
Galv.PROJ.dir(-1,0,8,3,'swordproj',1,'c(7)',[],[],4,null,null)
This is my projectile as well.

Edit: Nevermind figured out what the problem was.
Laaronthegreat010

#178 Aug 22, 2022, 01:13 AM Source

How is your script now? Can you show me? I need to see, if you please.

IntoTheDrink said:
My projectile is supposed to fire a common event, I have <projEffect> on the event that I'm shooting. Yet it's still not being activated.
Galv.PROJ.dir(-1,0,8,3,'swordproj',1,'c(7)',[],[],4,null,null)
This is my projectile as well.

Edit: Nevermind figured out what the problem was.
EthanFox

#179 Feb 4, 2023, 03:58 PM Source

EthanFox said:
Hey @Galv, question - could I be a pain and trouble you for a very small extension in functionality?

The function you added, Galv.PROJ.ceTargetId() - it's extremely useful, as it allows me to group the effects of projectiles together in one common event.

However, in my game, I have projectiles with different damage values; e.g. a small proj may deal 1 damage while a big proj may deal 10, and at present, I don't have any way of grouping this - I would need to have a different common event for each projectile type.

I could really do with a Galv.PROJ.cePID() , which returns the PID of the projectile that did the damage. Then, I can do IF statements on the TargetID to see what was hit, and within those, IF statements on the PID to see what actually hit them. With that, I can have a master "onProjectileHit" common event that functions kinda like a callback.

I'm sure this is a ~5 line change, but I'm not much of a scripter and I've been trying to add this functionality for several hours this morning with no luck.

EDIT: Also Galv, are you aware of any plugin which would allow enemies to have a larger hitbox size that works with your plugin, that just does that, and doesn't involve an entire movement system?
Hey @Galv; did you see this a while back? I've come back to this project and would still find this snippet really useful.
Galv

#180 Feb 4, 2023, 04:50 PM Source

Sorry, I don't have any plans to update this one as of now.
