Bind Pictures To Map

Correcting the typo and closing off the plugins still has the project ignore the commands for some reason.


I don't know why MV has this issue with not letting things work that work for others.

You can send me a demo with a problem via pm and i can check where it is if you want.

Actually @Jonforum the problem was more simple really.


" Important: You must use this plugin command after you’ve first shown the corresponding picture nr. using the Show Picture event command. "


I executed the command before showing the picture.


Thus it wasn't working okay for some reason.

Did some further testing before considering doing a demo ( which i have difficulty condensing)


I found the plugin is having conflicts with Terrax's lighting plugin- I had placed the bind map plugin last on the list and they both run together without crash messages BUT the lighting effects are non-functioning.


I cannot remember when I had my plugin last updated but I think it may had a fix to work along with other plugins so just incase I will upload my version of the terrax's lighting and my plugins file.


View attachment TerraxLighting.js


View attachment plugins.js

Then you can try this i think

Thanks for that helpful link, I had to modify the code lines with that fix he has on there.


It seems it works fine now :) I'll continue to test and test until I am completely convinced the problem is gone for certain.


By the way, how do you measure the positioning for the image there? Instead of tiles you have them positioned by the picture x,y posititing. How would you calculate distance on a map thats about 100x100?

Default tile size is = 48 pixels


then 100x100 will be 100 * 48 = 4800 so 4800x4800


for e.g


If you need to set picture in 20x40 tile on the map, then you just do some simple math :)


20*48 = 960; // our x for picture


40*48 = 1920; // our y for picture


After that you just bind picture to needed layer with plugin


You can do calculation by yourself or use variable with calculations.

Working very well so far, I was wondering if there exists a bind animation to map aswell, I feel a static image isn't getting much attention on map.


Do you know if there exists a conditional branch of script that can identify map ID? Or even a scroll screen to binded image?

Hello together,


i have an question:
When i create a map 50 x 30


And i want to do lightning effects on this map - i have to open photoshop an create an page with


50 x 48 = 2400


30 x 48 = 1440


When im ready with my "Paintings" i make an event, show picture in the left corner so its perfectly fitting.



What do i have to do with the plugin?


Any why i always see that someone uses an "!" in front of the names of their pictures, what does this letter?


Thanks for your help.

can you answer this also:
When i create a map 50 x 30





And i want to do lightning effects on this map - i have to open photoshop an create an page with


50 x 48 = 2400


30 x 48 = 1440


When im ready with my "Paintings" i make an event, show picture in the left corner so its perfectly fitting.



What do i have to do with the plugin?

@Underserial


50 x 48 = 2400  ???


TileSizeXY = 48pixel, if i remember


((50*48)*(48*48))= You entire map resolution for PS


ex: if you want example a fixed picture at 42x,41y


42*48 = 2016 // you x picture pos


41*48 = 1968 // you y picture pos


here the script call


//"$gameScreen.showPicture(pictureId, name, origin, x, y, scaleX, scaleY, opacity, blendMode)"
$gameScreen.showPicture(pictureId, 'name picture', 0, 2016, 1968, 100, 100, 255, 0);
// bind
this.bindPictureToMap(pictureId, 1, 'below_characters');


and in game rmmv software if you prefere
maybe a command like that.


first the picture will show at you screen resolution.


After it will bind at your Map resolution


◆Show Picture：#1, None, Upper Left (2016,1968), (100%,100%), 255, Normal
◆Plugin Command：BindPictureToMap 1 above_characters


more docu here


http://mvplugins.tordamian.com/plugins/bind-pictures-to-map/

◆Show Picture：#1, None, Upper Left (2016,1968), (100%,100%), 255, Normal◆Plugin Command：BindPictureToMap 1 above_characters


this will not work for me.


Only if i do this:


◆Show Picture：#1, None, Upper Left (0,0), (100%,100%), 255, Normal◆Plugin Command：BindPictureToMap 1 above_characters

Hello guys.. bfore.. sorry fo my bad english coz thats not my native language :D..
Ok..  lets get to the problem...  couple days ago I watch a tutorial for parallax mapping using this plugin..


i followed it carefully.. i've to pause n start the video to see if i'm missing somethin' coz it's my first time making parallax map.

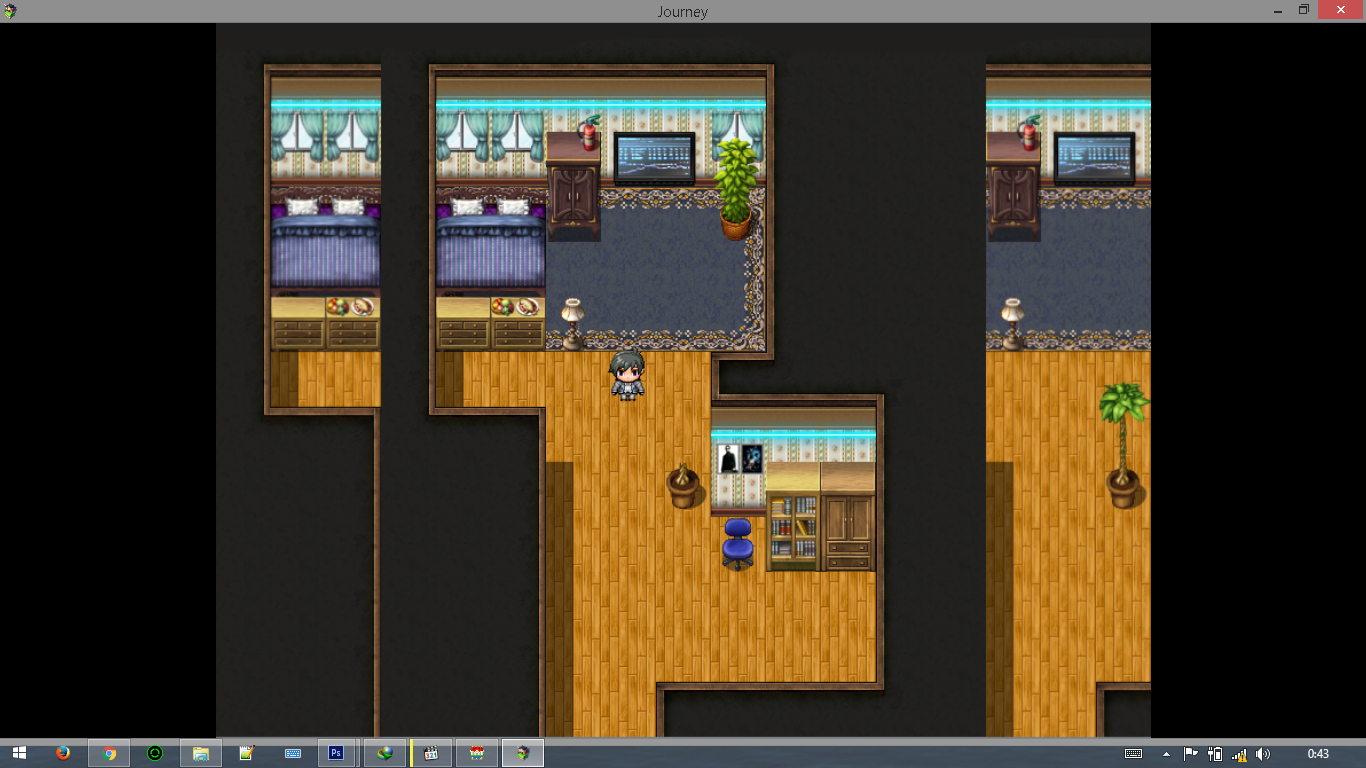

but when i did it step by step as the tutorial did, i found a problem like picture below.. my map is like tiled .. I dunno what happening..


btw my map is 11x13


I'm very new at this thing ya know so please answer my problem n thank you very much :D

Your problem has nothing to do wit your mapping, it has to do with your screen size.


Screen size = minimum map size, or that is exactly the display you get.


You need to make your map larger, until it is of the same size than the screen or larger.

So what i've to do.. sorry im really new at this :D  all i know is just painting map n making simple event..   btw thks for the answer :D  .. have a nice day n nice vibes ;)

okok i get it now thanks for the solution bro :D

@Kentang_Terbang, please avoid double posting, as it is against the forum rules. You can review our forum rules here. Thank you.


If you have something to add and the last post is your own, simply edit it.


Also, please don't quote someone unless you want to refer to a specific part of that quote, use the @username funtion to alert someone like I did above.


As for the solution, just in case you're mistake or someone else reads this:


you need to make the map larger to fill out the entire screen.


No one can tell you how large, because it looks like you changed the screen size, and it is the screen size that will determine how many tiles the map has to be (screen size divided by tile siize of 48 pixels is the minimum number of tiles)

@Andar hey thanks n im really sorry for this.. i wont do this again...


Guys out there.. do you have any explanation with this case ?

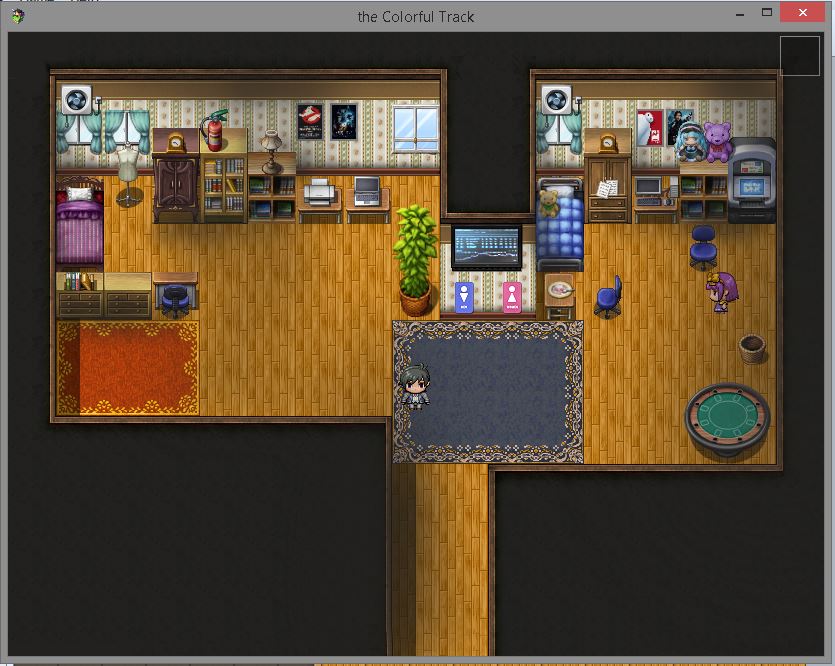

I use this plugin for parallaxMapping and it works well like this..

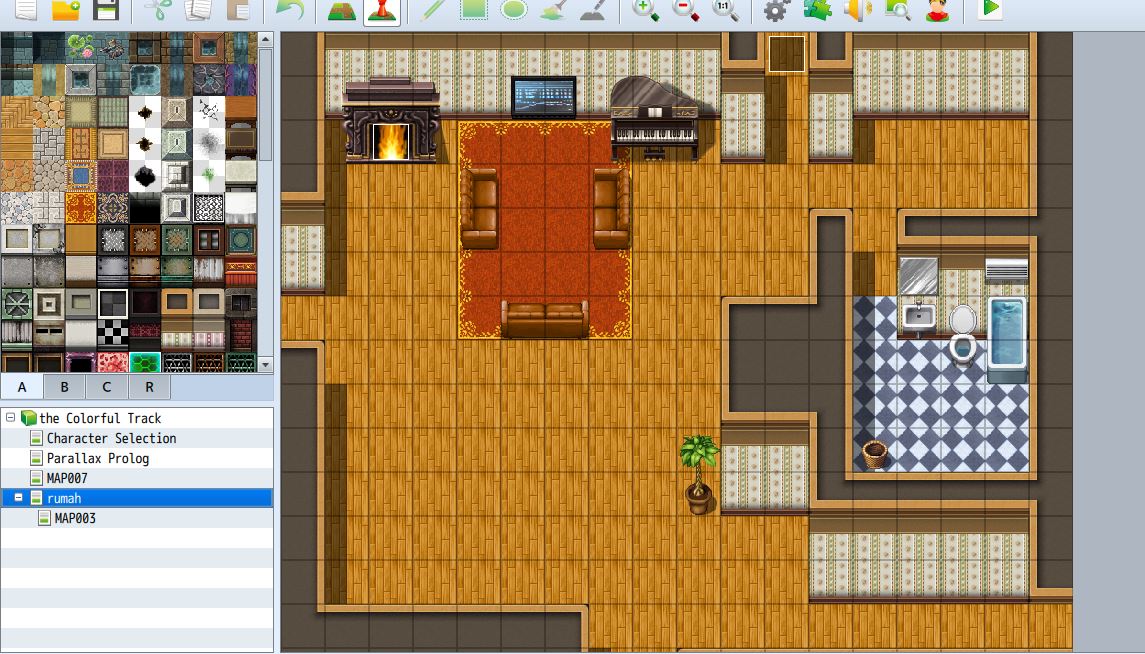

and the setting goes like this..

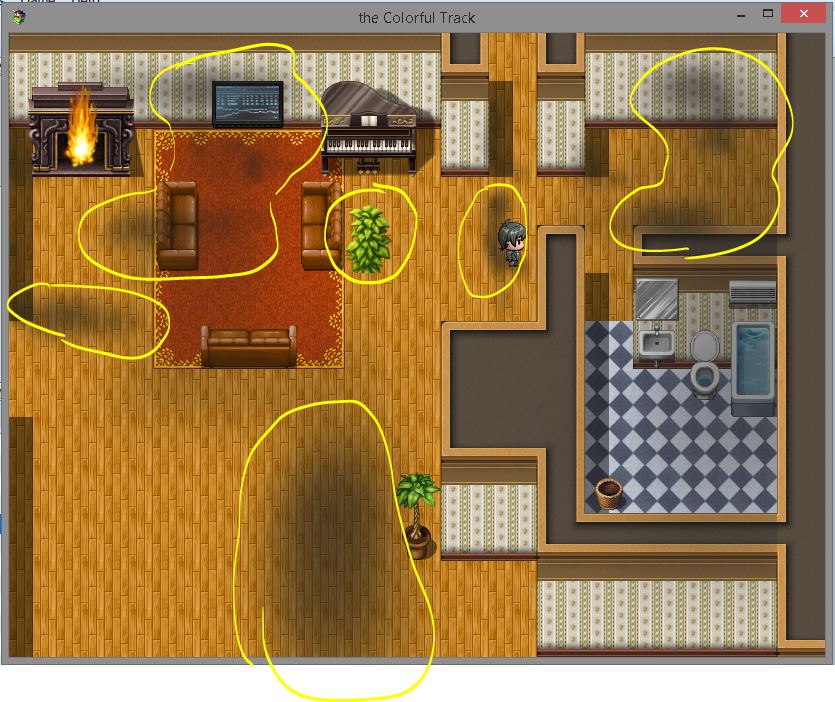

But when I created a new map wthout parallax mapping n tested it and the result was like this..


The part that I  highlight  is a shadow and plant(overlay layer) from map above.. do you guys have any explanation with this case,?




btw here's the map

what is the size of the pictures you're binding to the map?
