MZ - Steam Greenworks plugin for MZ

jkweath · 2020-11-18T09:32:41+0900

I wasn't sure if this would be the right place to post this, but I wanted to see if any MZ plugin developers are either working on, or already know of, a plugin to integrate Steam Greenworks into MZ--specifically for Steam achievements. I was hoping Hudell's Greenworks plugin for MV would be compatible with MZ, but I haven't had any luck getting it to work: After correctly setting it up, it's unable to find the files it needs (even though the files are definitely where they need to be, I checked).

● ARCHIVED · READ-ONLY

Started by jkweath Nov 18, 2020, 12:32 AM 56 posts Page 1 of 3 View original ↗

jkweath

#1 Nov 18, 2020, 12:32 AM Source

I wasn't sure if this would be the right place to post this, but I wanted to see if any MZ plugin developers are either working on, or already know of, a plugin to integrate Steam Greenworks into MZ--specifically for Steam achievements.

I was hoping Hudell's Greenworks plugin for MV would be compatible with MZ, but I haven't had any luck getting it to work: After correctly setting it up, it's unable to find the files it needs (even though the files are definitely where they need to be, I checked).
Hudell

#2 Nov 18, 2020, 12:38 AM Source

I ported the basics to MZ, just need to write the instructions for it:

cyclone-engine/plugins/Cyclone-Steam.js at master · Hudell/cyclone-engine
jkweath

#3 Nov 18, 2020, 12:55 AM Source

@Hudell Oof. No wonder I couldn't find your plugin! I forgot that you'd titled it the Cyclone Engine. :kaoswt2:

Oddly enough, even after setting this up, I'm getting the exact same error as in the screenshot above. I'm pretty sure I have all the files in the right spot. Am I missing something?
Hudell

#4 Nov 18, 2020, 01:13 AM Source

Probably not using the right version of the greenworks files.
jkweath

#5 Nov 18, 2020, 01:34 AM Source

Hudell said:
Probably not using the right version of the greenworks files.

You are probably right. I tried downloading a different Steam SDK and didn't have any luck, and since I've long forgotten where to find the right Greenworks plugins (and would have no idea which one to download even if I did find them), I suppose I'll stop for now and wait until you've got some instructions written out. I'm in no hurry!
Titanor

#6 Nov 21, 2020, 02:32 PM Source

how exactly did you set it up? I am still trying to set it up myself.
Titanor

#7 Nov 21, 2020, 03:30 PM Source

ok I think I found the issue, I am going to build my own copy of GreenWorks using a different version of NWJS
jkweath

#8 Nov 21, 2020, 11:19 PM Source

@Hudell

I tried looking into it some more and *I think* managed to figure out that MZ runs on NW.js version 0.44.5. I can only find Greenworks files supporting up to NW.js 0.33.3.

Assuming you're right about me having the wrong Greenworks files, is there a version of Greenworks out there that supports 0.44.5?
Hudell

#9 Nov 21, 2020, 11:43 PM Source

Yes, the mv plugin instructions has a link for the downloads:

MakerDevs.com
jkweath

#10 Nov 22, 2020, 12:16 AM Source
I finally got it all working. And I think I was able to figure out the script command to activate achievements:
Code:
CycloneSteam.activateAchievement('achievementId');
Hopefully I'm all set now!
Titanor

#11 Nov 22, 2020, 12:56 AM Source

i found a version on https://greenworks-prebuilds.armaldio.xyz/ that works with base mz
version 80 on both 32 and 64 bit

-edit- base mz uses nw.js v0.44.5

Titanor

#12 Nov 22, 2020, 01:47 AM Source

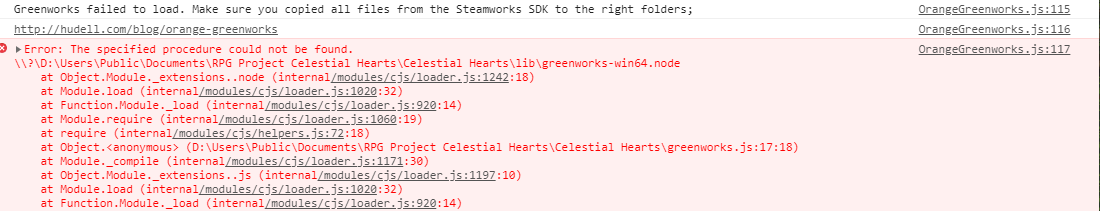

new error when I run through steam

Code:

Cyclone-Steam.js:639
Error: The specified procedure could not be found.
\\?\C:\Program Files (x86)\Steam\steamapps\common\Telnian Legends of the Universe\lib\greenworks-win64.node
    at Object.Module._extensions..node (internal/modules/cjs/loader.js:1242)
    at Module.load (internal/modules/cjs/loader.js:1020)
    at Function.Module._load (internal/modules/cjs/loader.js:920)
    at Module.require (internal/modules/cjs/loader.js:1060)
    at require (internal/modules/cjs/helpers.js:72)
    at Object. (C:\Program Files (x86)\Steam\steamapps\common\Telnian Legends of the Universe\greenworks.js:15:18)
    at Module._compile (internal/modules/cjs/loader.js:1171)
    at Object.Module._extensions..js (internal/modules/cjs/loader.js:1197)
    at Module.load (internal/modules/cjs/loader.js:1020)
    at Function.Module._load (internal/modules/cjs/loader.js:920)
register @ Cyclone-Steam.js:639

I used pipegui to upload to steam

-edit- never mind I am now getting it in the playtest as well
I really don't understand because it was working a few minutes ago and I have not changed anything.

when I am in the devtools log in steam it should give me Titanor Soulstone when I do $gameActors.actor(9).setName(CycloneSteam.screenName);
but it just gives me Play Test

Hudell

#13 Nov 22, 2020, 04:28 AM Source

That error usually means the greenworks files are not on the right version. I'll make some tool tomorrow to make this export operation easier in the future, along with writing the proper instructions for MZ.
Titanor

#14 Nov 22, 2020, 05:25 AM Source

thanks, I will check back tomorrow afternoon then
Titanor

#15 Dec 21, 2020, 03:42 AM Source

which version of nwjs are you using because I upgraded both nwjs and greenworks to 0.49.2 and 86, but I am still getting the same error plus a new error

Greenworks failed to load. Make sure you copied all files from the Steamworks SDK to the right folders;

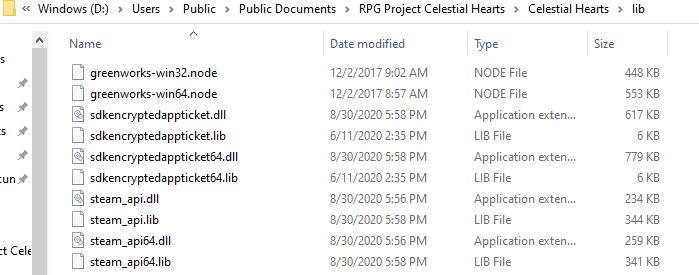

which folder do I put the greenworks files in the paths I have tried are
Telnian Legends of the Universe\greenworks
Telnian Legends of the Universe\greenworks\lib
Telnian Legends of the Universe\lib
Telnian Legends of the Universe\greenworks
Telnian Legends of the Universe\js\libs

edit: I have now tried just putting them in the base folder but that did not work either

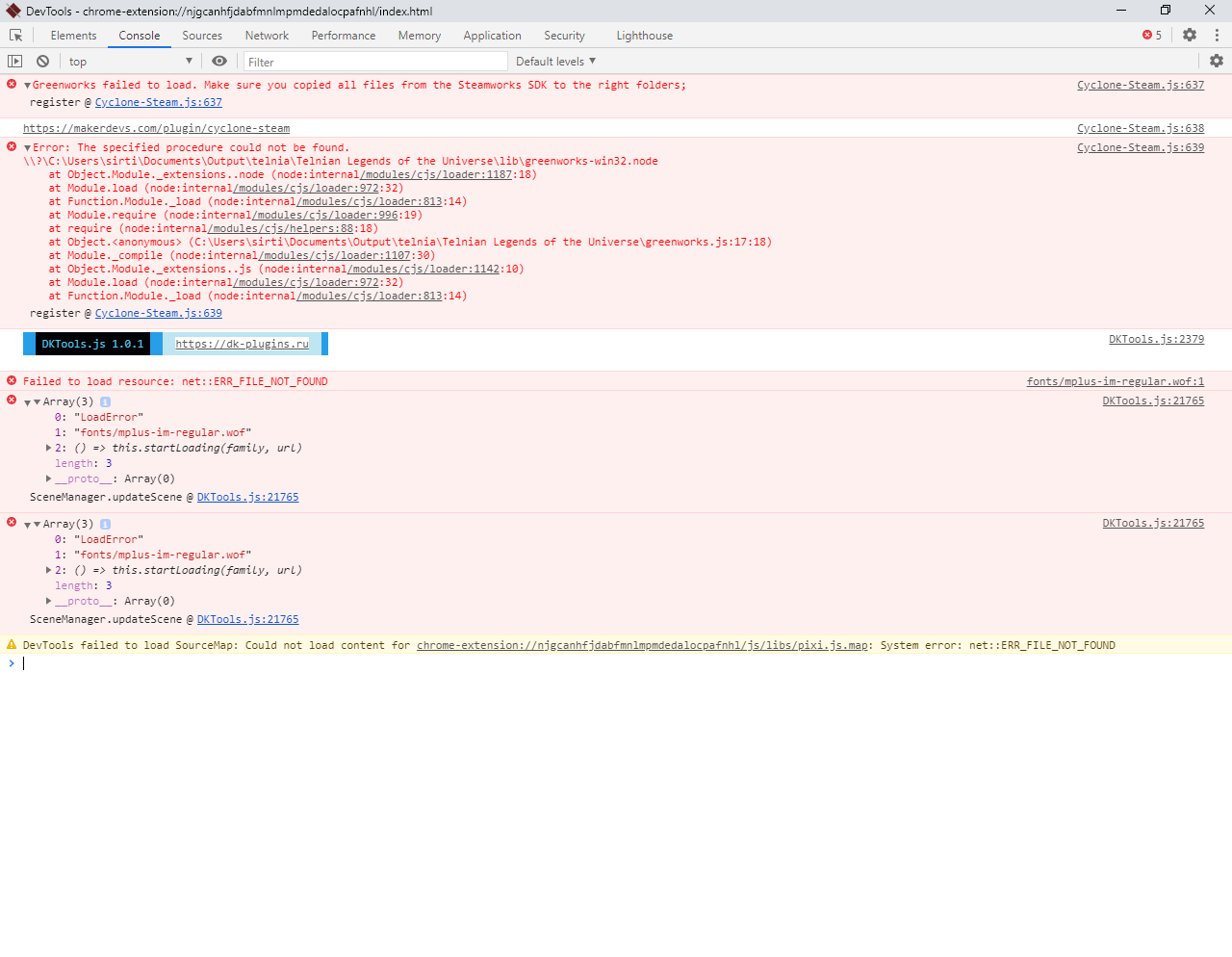

edit 2: just a screen grab
jkweath

#16 Dec 28, 2020, 11:56 PM Source

@Hudell Wanted to pop in again and ask a question.

When playtesting through the RPGMaker software, if I use the code to activate an achievement, nothing happens (which is normal). However, when the game is deployed and the script to activate an achievement runs, the game instantly closes itself without leaving an opportunity to check the console.

Is this intended behavior? I haven't had the chance to check if it works after the game is properly uploaded and connected to Steam.
Hudell

#17 Dec 29, 2020, 01:02 AM Source

That's weird.
You can try running the game through the windows terminal so that it can output the console even after the game is closed, to try to figure out what error is happening.
jkweath

#18 Dec 29, 2020, 02:39 AM Source

I don't know how to do that. :kaoswt2:

Either way I'll actually test it on Steam within a couple days and report back whether it crashes or not.

Edit: @Hudell Okay, so I tested activating an achievement on Steam. Just to be safe, I tried it both without and with an internet connection.

The game does *not* crash when it's uploaded on Steam and an achievement activates. It appears that the crash only happens when the game is deployed (as in not being play-tested through RPGMaker) and not connected to Steam.
CapLegHole

#19 Jan 2, 2021, 05:22 AM Source

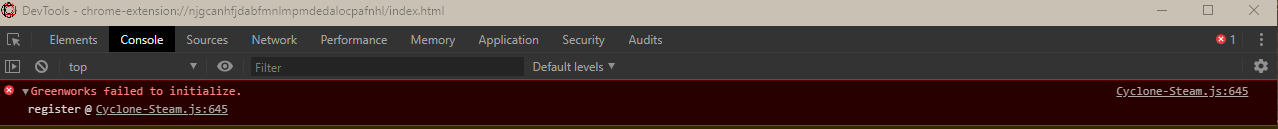

@Hudell I am in RPG Maker MZ and have followed all of the steps of OrangeGreenworks along with the slight edits that have come with this thread. I am getting the attached error during testing and after compiling the game. Any and all feedback would be appreciated.
Hudell

#20 Jan 2, 2021, 08:59 PM Source

To get to that error all yours files are on the right place, so the problem is something else: Is steam open and do you have the game on your library?
