[RMXP] Editing Moghunter's Picture Gallery Script

slimmmeiske2 · 2018-08-31T06:44:03+0900

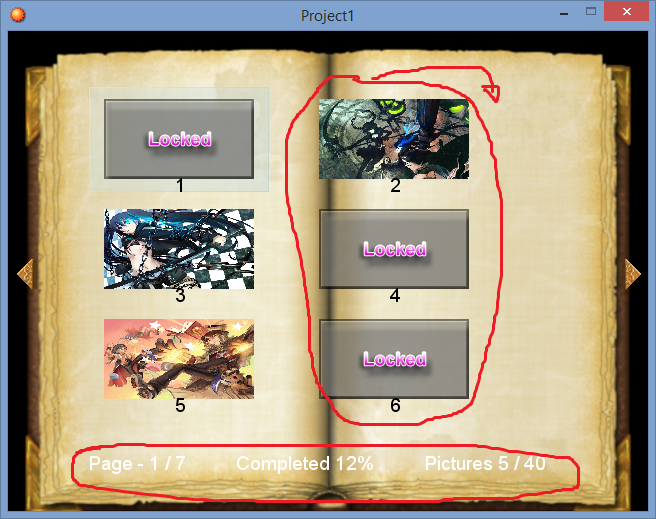

Hello, I've been messing around with Moghunter's Picture Gallery script, trying to edit it to fit my needs (with my limited RGSS knowledge). However there's a couple of things that I just can't seem to fix/find myself. 1. I want the columns centered on each page of the book. I've been able to move the columns and now the first one is in its right place. I can't find how to make the space between the two columns bigger though, so the second one isn't centered yet. 2. I want the text to be black. I've been able to set the numbers beneath the pictures to black, but the bottom row continues to confound me. EDIT: So I've been able to change it, by changing the line "@info = Window_Help.new" to a Window_Help2 class and changing the colour there. I can't help but think there's simpler solution, so if anyone knows it, I'd love to hear it still. I would appreciate any help you can give.

This should do the trick for you. Though you'll have to set the customization options yourself to get it how you like. Here's the script:

Spoiler

Code:

#===============================================================================
# MOG Gallery - Customize Layout
# Author: Mobius XVI
# Version: 1.0
# Date: 31 Aug 2018
#===============================================================================
#
# Introduction:
#
#   The purpose of this script is to allow you to modify the layout of MOG's
#   picture gallery script.
#
# Instructions:
#
#  - Place this script below the MOG Gallery script but above main
#
# Issues/Bugs/Possible Bugs:
#
#   - None yet.
#
#  Credits/Thanks:
#    - Mobius XVI, author
#    - MOG, author, original script:
#      https://atelierrgss.wordpress.com/scripts/rpg-maker-xp/
#
#  License
#
#    The MIT License (MIT)
#
#    Copyright (c) 2018 darmes
#
#     Permission is hereby granted, free of charge, to any person obtaining a copy
#     of this software and associated documentation files (the "Software"), to deal
#     in the Software without restriction, including without limitation the rights
#     to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
#     copies of the Software, and to permit persons to whom the Software is
#     furnished to do so, subject to the following conditions:
#
#     The above copyright notice and this permission notice shall be included in all
#     copies or substantial portions of the Software.
#
#     THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
#     IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
#     FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
#     AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
#     LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
#     OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
#     SOFTWARE.
#
#==============================================================================
# CUSTOMIZATION START
#==============================================================================
module MOG_PICTURE_GALLERY

  X_start = 15
  Y_start = 12
  Thumbnail_Width  = 150
  Thumbnail_Height = 80
  Number_Columns = 3
  Vertical_Spacing = 30
  Horizontal_Spacing = 65
  Cursor_Padding = 12
  Font_Name = "MS PGothic"
  Font_Color = Color.new(0,0,0)

end
#==============================================================================
# CUSTOMIZATION END -- DON'T EDIT BELOW THIS LINE!!!
#==============================================================================

#==============================================================================
# * Window_Base
#==============================================================================
class Window_Base < Window
  #--------------------------------------------------------------------------
  # Draw_Thumbnail
  #--------------------------------------------------------------------------
  def draw_thumbnail(x,y,id)
      image = RPG::Cache.gallery(id.to_s) rescue nil
      return if image == nil
      cw = image.width
      ch = image.height
      src_rect = Rect.new(0, 0, cw , ch)
      tw = MOG_PICTURE_GALLERY::Thumbnail_Width
      th = MOG_PICTURE_GALLERY::Thumbnail_Height
      src_rect2 = Rect.new(x, y, tw, th)
      self.contents.stretch_blt(src_rect2, image, src_rect)
  end
end

#==============================================================================
# * Window_Picture
#==============================================================================
class Window_Picture < Window_Selectable

 #------------------------------------------------------------------------------
 # * Initialize
 #------------------------------------------------------------------------------
  def initialize(page)
      super(0, 64, 640, 365)
      self.opacity = 0
      @column_max = MOG_PICTURE_GALLERY::Number_Columns
      @page = page
      @pic_max = MOG_PICTURE_GALLERY::MAX_PICTURES
      @pic_max = 1 if @pic_max <= 0
      @item_max = MOG_PICTURE_GALLERY::Number_Columns * page_row_max
      @pag_max = @pic_max / @item_max
      if @pag_max == page
         o = @pag_max * @item_max
         o2 =  @pic_max - o
         @item_max = o2
      end
      refresh(page)
      self.index = 0
  end
  #--------------------------------------------------------------------------
  # * Get Number of Rows Displayable on 1 Page
  #--------------------------------------------------------------------------
  def page_row_max
    # Subtract a frame height of 32 from the window height, and divide it by
    # 1 row height of 32
    return ((self.height - 32) + MOG_PICTURE_GALLERY::Vertical_Spacing) / \
            (80 + MOG_PICTURE_GALLERY::Vertical_Spacing)
  end
  #--------------------------------------------------------------------------
  # * Get horizontal spacing
  #--------------------------------------------------------------------------
  def horizontal_spacing
    MOG_PICTURE_GALLERY::Thumbnail_Width + MOG_PICTURE_GALLERY::Horizontal_Spacing
  end
  #--------------------------------------------------------------------------
  # * Get vertical spacing
  #--------------------------------------------------------------------------
  def vertical_spacing
    MOG_PICTURE_GALLERY::Thumbnail_Height + MOG_PICTURE_GALLERY::Vertical_Spacing
  end
  #------------------------------------------------------------------------------
  # * draw_item
  #------------------------------------------------------------------------------
  def draw_item(index,page)
      np = @item_max * page
      picture_number = index + 1 + np
      #x = 15 + index % 3 * 215
      x = MOG_PICTURE_GALLERY::X_start + \
          ((index % @column_max) * horizontal_spacing)
      #y = 12 + index / 3 *110
      y = MOG_PICTURE_GALLERY::Y_start + \
          ((index / @column_max) * vertical_spacing)
      s = picture_number
      s = 0 if $game_system.gallery[picture_number] == nil
      draw_thumbnail(x,y,s)
      self.contents.font.name  = MOG_PICTURE_GALLERY::Font_Name
      self.contents.font.color = MOG_PICTURE_GALLERY::Font_Color
      self.contents.draw_text(x + 45,y + 70, 64, 32, "N - " + picture_number.to_s,1)
      self.contents.font.name  = Font.default_name
      self.contents.font.color = normal_color
  end

 #------------------------------------------------------------------------------
 # * update_cursor_rect
 #------------------------------------------------------------------------------
  def update_cursor_rect
      if @index < 0
         self.cursor_rect.empty
         return
      end
      row = @index / @column_max
      if row < self.top_row
         self.top_row = row
      end
      if row > self.top_row + (self.page_row_max - 1)
         self.top_row = row - (self.page_row_max - 1)
      end
      cursor_width = MOG_PICTURE_GALLERY::Thumbnail_Width + \
                     (2 * MOG_PICTURE_GALLERY::Cursor_Padding)
      cursor_height = MOG_PICTURE_GALLERY::Thumbnail_Height + \
                     (2 * MOG_PICTURE_GALLERY::Cursor_Padding)
      #x = index % 3 * 215
      x = MOG_PICTURE_GALLERY::X_start - \
          MOG_PICTURE_GALLERY::Cursor_Padding + \
          (index % @column_max) * horizontal_spacing
      #y = index / 3 *110
      y = MOG_PICTURE_GALLERY::Y_start - \
          MOG_PICTURE_GALLERY::Cursor_Padding + \
          (index / @column_max) * vertical_spacing
      self.cursor_rect.set(x, y, cursor_width, cursor_height)
  end
end

#==============================================================================
# * Window_Picture_Help
#==============================================================================
class Window_Picture_Help < Window_Help
  #--------------------------------------------------------------------------
  # * Set Text
  #  text  : text string displayed in window
  #  align : alignment (0..flush left, 1..center, 2..flush right)
  #--------------------------------------------------------------------------
  def set_text(text, align = 0)
    # If at least one part of text and alignment differ from last time
    if text != @text or align != @align
      # Redraw text
      self.contents.clear
      self.contents.font.name  = MOG_PICTURE_GALLERY::Font_Name
      self.contents.font.color = MOG_PICTURE_GALLERY::Font_Color
      self.contents.draw_text(4, 0, self.width - 40, 32, text, align)
      @text = text
      @align = align
      @actor = nil
    end
    self.visible = true
  end
end

#==============================================================================
# * Scene_ArtPictures
#==============================================================================
class Scene_Picture_Gallery
 #------------------------------------------------------------------------------
 # * Create Window
 #------------------------------------------------------------------------------
 def create_window
     @info = Window_Picture_Help.new
     @info.y = 416
     @info.opacity = 0
     @wp_page = 0
     @wp_page_old = @wp_page
     @wp_index = 0
     @wp =[]
     for i in 0...@max_pages
         @wp[i] = Window_Picture.new(i)
         @wp[i].x = 32 * i
     end
     check_active_window(true)
     refresh_info_window(true)
 end

end

and here's the explanation of the various options.

Spoiler

I can give you the snippet below. It's a quick and dirty fix. It will let you use the mouse with the gallery but not the arrow keys. To make things *actually* compatible would take a more significant investment of time. As far as script order, I got this all to work in the gallery demo by placing the gallery script first, then my edits to the gallery script, then the mouse script, then my edits to the mouse script.

Spoiler

Code:

#==============================================================================
# * Window_Picture
#==============================================================================
class Window_Picture < Window_Selectable
  alias_method :seph_mouseselectable_wndslct_update, :update
  #--------------------------------------------------------------------------
    # * Frame Update
    #--------------------------------------------------------------------------
    def update
        # agf = hide mouse
        if $mouse_sprite.visible == true

        # If Mouse Selectable, Active, at Least 1 Item and Non-negitive index
        if self.mouse_selectable && self.active && @item_max > 0 && @index >= 0
            # Gets Mouse Position
            mouse_x, mouse_y = *Mouse.position

            # If Mouse Within Window
            if mouse_x.between? (self.x, self.x + self.width) &&
                mouse_y.between? (self.y, self.y + self.height)
                # Calculates Mouse X and Y Position Within Window
                mouse_x -= self.x; mouse_y -= self.y
                # Subtracts Window Padding
                mouse_x -= @window_padding; mouse_y -= @window_padding
                # Subtracts Mouse Oh
                mouse_y -= self.mouse_oh
                # Gets Cursor Width
                cursor_width = MOG_PICTURE_GALLERY::Thumbnail_Width + \
                     (2 * MOG_PICTURE_GALLERY::Cursor_Padding)
        cursor_height = MOG_PICTURE_GALLERY::Thumbnail_Height + \
                     (2 * MOG_PICTURE_GALLERY::Cursor_Padding)
                # Passes Through Item Max
                for i in 0...@item_max
                    # Calculates Index Position
                    x = MOG_PICTURE_GALLERY::X_start - \
              MOG_PICTURE_GALLERY::Cursor_Padding + \
              (i % @column_max) * horizontal_spacing
          y = MOG_PICTURE_GALLERY::Y_start - \
              MOG_PICTURE_GALLERY::Cursor_Padding + \
              (i / @column_max) * vertical_spacing
                    # If Mouse Between Rect
                    if mouse_x.between?(x, x + cursor_width) &&
                        mouse_y.between?(y, y + cursor_height)
                        # Set Index
                        prev_index = @index
                        @index = i
                        if prev_index != @index
                            $game_system.se_play($data_system.cursor_se)
                        end
                        break
                    end
                end
            end
        end

        end

        # Original Update
        #seph_mouseselectable_wndslct_update
    update_cursor_rect
    end
end
