Orange HUD

Introduction
This plugin will let you add a customizable HUD on your game.

HUD Params
DefaultFontFace
The font face that will be used by default on all lines

DefaultFontSize
The font size that will be used by default on all lines

DefaultFontColor
The font color that will be used by default on all lines

DefaultFontItalic
Should all lines be italic by default?

HudWidth
The total width of the HUD, set it to 0 to use the whole game screen

HudHeight
The total height of the HUD, set it to 0 to use the whole game screen

HudX
The X position of the HUD

HudY
The Y position of the HUD

HudOpacity
The opacity of the HUD

SwitchId
You can use this to configure a switch to control the HUD visibility

Line Params
FontFace
The font face that will be used on this line. Leave empty to use the HUD default.

FontSize
The font size that will be used on this line. Leave empty to use the HUD default.

FontColor
The font color that will be used on this line. Leave empty to use the HUD default.

FontItalic
Should this line be italic?

VariableId
The main variable of this line. Everytime the value of this variable changes, the HUD will be refreshed.

Patern
The line content. You can use %1 to display the main variable value, or text command like \v[0002], \i[10].

X
The X position of this line inside the HUD

Y
The Y position of this line inside the HUD

ScriptPattern
You can use this param to create a pattern with a script instead of a single string.

How to Use
Add the OrangeHud.js and the OrangeHudLine.js plugins on your project and configure the params the way you want them.
If you want to add more lines on the HUD, create a copy of the OrangeHudLine.js file, called OrangeHudLine2.js and add it on your project. You can add as many lines as you want, but the name of the plugin file must start with OrangeHudLine. You can use any other add-on instead of the line.

I also wrote a blog post explaining the plugin in more details.



Plugin
OrangeHud.js

Add-Ons:

• OrangeHudGroup.js - Used to create multiple HUDs.
• OrangeHudLine.js - To add a single variable to the hud.
• OrangeHudAlignedLine.js - Same features as the regular line, except for the text commands (\i, \v and so on). Includes alignment.
• OrangeHudVariablePicture.js - To add a variable picture to the hud.
• OrangeHudFixedPicture.js - To add a fixed picture to the hud.
• OrangeHudClock.js - To add a clock to the hud.
• OrangeHudDate.js - To add a date to the hud.
• OrangeHudLineGroup.js - To add several variables to the hud.
• OrangeHudGold.js - To add the gold amount to the hud.
• OrangeHudActorStatus.js - To add info about a party member to the hud.
• OrangeHudActorGauge.js - To add a gauge using data from a party member
• OrangeHudFacePicture.js - To add the face of a party member to the hud.
• OrangeHudVariableIcon.js - To add a variable icon to the hud.
• OrangeHudScriptIcon.js - To add an icon using a script.
• OrangeHudGauge.js - To add a gauge on the hud.

Dependencies
None.

License
Free for any game.

Switch ID setting is used to whole HUD ...but my question is: it is possible to set-up switch ID for each line of variables? I need different variables shown on different maps so it would be usefull in my project ;)

This is great!  Any chance you could you do a screenshot example for a simple hud test variable for us new to RM please?

I just updated it to add a SwitchId param on the line too :)

Yup, I'll update the main post with it.

This is great, is what i was looking for!!!
Thanks a lot!

Now it's the best! Thanks :D Now only I need AutoSave function plugin to finish my game :D

Updated the plugin with 3 new types of lines:

1. OrangeHudClock

2. OrangeHudFixedPicture

3. OrangeHudVariablePicture

With those, you can make your HUD even better :)

Make sure to always get all files on the same version (currently at 1.3)

Edit: And let me know if there's anything else you need for your HUD.

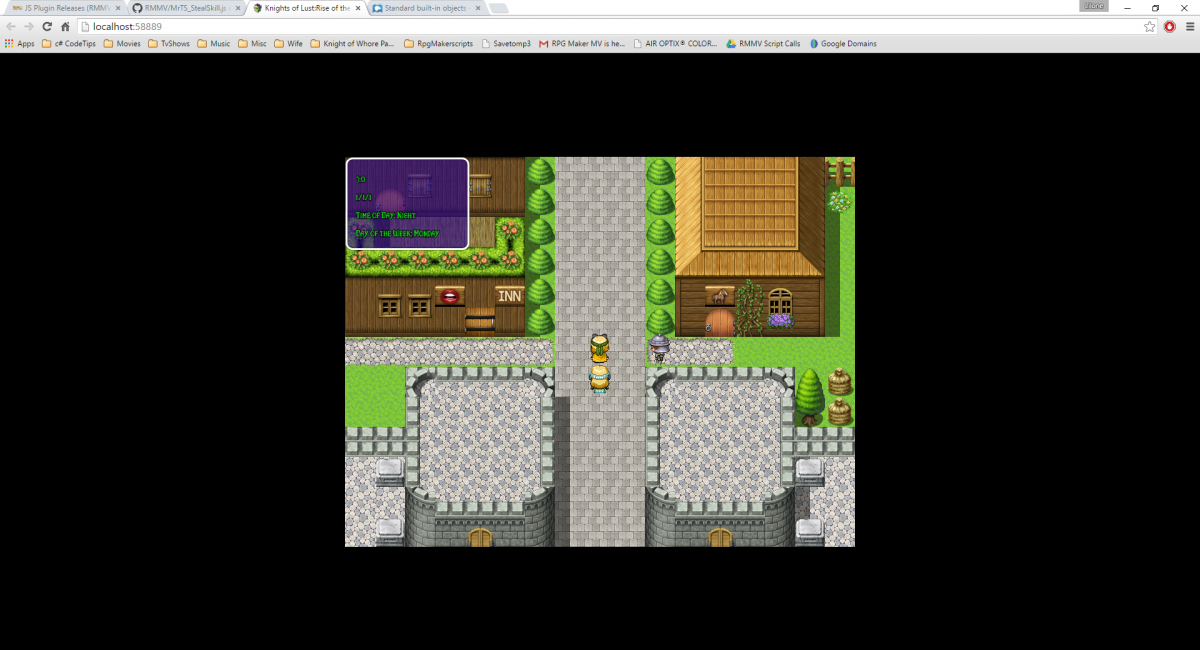

Although its using a modified version of hudclock i though i would post an image :)

Fantastic plugin!!!!!! This is what I was looking for!!!! Thanks a lot!!!! :) :) :)

One question:

On the OrangeHUDLine.js  is it possible to set the coordenates to a variable? that way I can set the position of the numbers through events and change them dinamically ingame without having to make tons of "OrangeHUDLines.js"'s

Yup, I'll add a new param for that.

Sorry to be dumb.

I can't figure out how to get an image displaying.  So for a file called, say "icon.png", I assume the image goes into /img/pictures?   I've then assumed I just enter "icon" as the filename?

Thanks

If you're using the FixedPicture add-on, that is correct.

Yes I was.  It didn't display anything though.  I'll keep trying things

Did you set a switchId to either the hud or the picture?

I'd left it set at the default 0 - should it always be linked to a control switch of 1 or above?    I got it working somehow using the variable method and then the fixed version also started working.  I've now gone back to the only the fixed hud version on, setup the control switch to an event and linked that control switch to the fixed image hud and it's working fine.

Thanks

If the switchId is 0, it should always display the picture. I'll check if there's any bug on my side.

OH MAN hahahahaha  :guffaw:   +1 just for this... but also because your scripts are awesome.

Great script!

Question/Request: Is there any way to have the option to leave the HUD up during battles?

I've added a new line type: OrangeHudDate.js

I don't know if this is an error on my end but whenever the screen fades to black, the HUD displays on top of the fade. Is there anyway to have it fade with everything else? (Sorry if this is something obvious that I've missed.)
