Is there a way to fix this?

TheoAllen · 2018-09-28T19:24:34+0900

I know pic may equal a thousand words, but it doesn't mean you post a pic and call it a day. Explain briefly how you ended up that way. How did you set the passage of your tile and how you map your map. Some impassable tiles could get passable just because you place an event with priority below character using tile graphics that is passable.

● ARCHIVED · READ-ONLY

Started by TheoAllen Sep 28, 2018, 10:24 AM 7 posts View original ↗

TheoAllen

#2 Sep 28, 2018, 10:24 AM Source

I know pic may equal a thousand words, but it doesn't mean you post a pic and call it a day.
Explain briefly how you ended up that way. How did you set the passage of your tile and how you map your map.
Some impassable tiles could get passable just because you place an event with priority below character using tile graphics that is passable.
Powell

#3 Sep 28, 2018, 10:49 AM Source

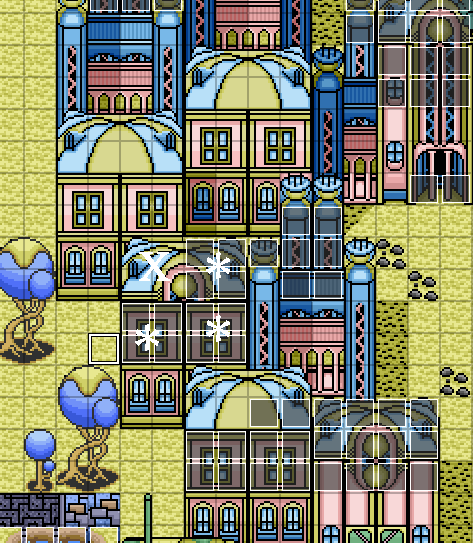

I am trying to figure out how to have X blocked tiles not show up under the player. Is there a simple fix for this?
Shaz

#4 Sep 28, 2018, 11:04 AM Source

A star passage setting will make the tiles appear on top of the player, as if the player is walking behind them.
It also tells the engine to get the actual passability from the tiles on the layer below.
So you'd need to draw the building at the back first, in full, and then the one at the front. It looks like this is what you've done, so just setting those tiles to star should do the trick.
Powell

#5 Sep 28, 2018, 11:18 AM Source

Ok so if I set it to Star how do I prevent movement through tiles I don't want the player to move through?

TheoAllen

#6 Sep 28, 2018, 11:29 AM Source

The star tile passability in tile B-E WILL check the tile under it. It's a part of bugfix on updated VXA. If you don't have one, put this.

Code:

#==============================================================================
# VXAce Star Passability Bug Fix
#   by NeonBlack
# -- Level: Easy, Normal
# -- Requires: n/a
# -- This simply checks if the tile is a star before checking passability.
# If the tile is a star and it is passable, it then checks the tile UNDER it.
# If not, it returns false as always. This prevents everything that is a star
# tile from being passable.
#
# -- Original Topic:
# http://forums.rpgmakerweb.com/index.php?/topic/7625-vxace-passabilities-bug/
#==============================================================================

class Game_Map

  def check_passage(x, y, bit)
        all_tiles(x, y).each do |tile_id|
          flag = tileset.flags[tile_id]
          if flag & 0x10 != 0                       # [☆]: No effect on passage
                next             if flag & bit == 0 # [○] : Passable but star
                return false if flag & bit == bit   # [×] : Impassable
          else
                return true  if flag & bit == 0  # [○] : Passable
                return false if flag & bit == bit   # [×] : Impassable
          end
        end
        return false                                              # Impassable
  end
end

Powell

#7 Sep 28, 2018, 11:45 AM Source

well that fixed the display issue (just needs some fine tuning...
Shaz

#8 Sep 28, 2018, 11:47 AM Source

A tile with a star passability says "use the passability of the tile on the layer below". So as long as the layer below has a tile that has an X, the player won't be able to walk through it.
