Dumb question about text formatting in scripts

● ARCHIVED · READ-ONLY
Started by Otto 8 posts View original ↗
  1. Otto
    #1 Source
    Hey, it's been a wile...
    there's this issue that has been bugging me for a couple of days; I have two scripts (well several actually, but I'll use these two as an example) for two different sub-menus in my game, one being a "option menu" and the other being a "gamepad config" menu inside the option menu;

    As with many script before them, there is some part within the script code where you write stuff, and that stuff is then written on your menu in-game.

    from this:


    to this:

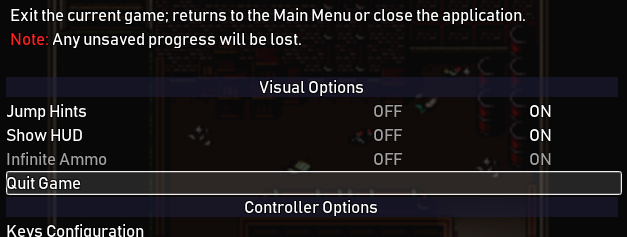

    and as you can see, text formating works ok; "Note:" appears in red exactly as I wanted to.

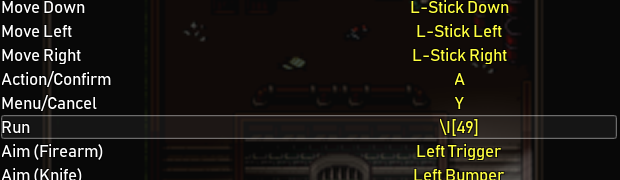

    Unfortunately the same can't be said about the second script:


    Even 'tho I use the same formatting and both scripts are actually by the same dude


    so the question is... why some scripts recognize text formatting and some don't?
  2. gstv87
    #2 Source

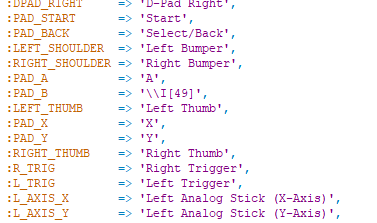

    I have the feeling that the 2nd menu is getting that \\I[49] as a result of a function, which is being returned as a string.
    so, it's passed down as a string.

    at some point in between the reading and the displaying, there should be a conversion to icon.
    the plugin data is not the problem.... the handling of that data is.
  3. Sixth
    #3 Source
    Only the draw_text_ex method can process these text codes, the simple draw_text method can't.

    From what I see, the second example text is centered, so my guess is that that one uses draw_text, while that help text uses draw_text_ex.
    There is no alignment option for draw_text_ex by default, that's why I assumed the above. Of course, it's possible to add that fairly easily for any experienced scripter, so this is still just a guess.

    Also, I don't remember which string format uses which text code "starter", but one of them uses a single \ while the other uses a double \ sign or a \e combined.
    It depends on the string format you used: "one format - quotes", 'other format - apostrophes' .

    Without seeing the scripts in question, that's about all anyone could tell you.
  4. Otto
    #4 Source
    here's the "option" script:

    https://forums.rpgmakerweb.com/index.php?threads/settings-menu.43612/

    and here is the one that has to do with controller setup (it's by the same guy but I can't seem to find it on this forum so I'll paste it from my game;

    Spoiler
    #===============================================================================
    # Personalizzazione controller di Holy87
    # Difficoltà utente: ★
    # Versione 1.0
    # Licenza: CC. Chiunque può scaricare, modificare, distribuire e utilizzare
    # lo script nei propri progetti, sia amatoriali che commerciali. Vietata
    # l'attribuzione impropria.
    #===============================================================================
    # Questo script vi permette di utilizzare aggiungere nelle opzioni di gioco due
    # nuovi comandi che permetteranno al giocatore di configurare a piacimento i
    # tasti del proprio controller e la potenza della vibrazione.
    #===============================================================================
    # Istruzioni: inserire lo script sotto Materials, prima del Main e sotto gli
    # script XInput e Opzioni di gioco. I due script sono necessari per il corretto
    # funzionamento, pena crash all'avvio.
    # Sotto è possibile configurare i testi per le voci e i comandi personalizzabili.
    #===============================================================================

    #===============================================================================
    # ** Impostazioni dello script
    #===============================================================================
    module ControllerSettings
    #--------------------------------------------------------------------------
    # * Testi per il menu Opzioni
    #--------------------------------------------------------------------------
    CONTROLLER_COMMAND = 'Keys Configuration'
    CONTROLLER_HELP = 'Set up your Controller''s Keys'
    VIBRATION_COMMAND = 'Vibration'
    VIBRATION_HELP = 'Set up Your controller''s Vibration Intensity'
    RESET_COMMAND = 'Restore Default'
    NO_KEY_SET = 'No Key Selected'
    HELP_INPUT = 'Press the desired key on your Gamepad'
    HELP_KEY = 'Controller Configuration:'
    #--------------------------------------------------------------------------
    # * Tasti configurabili nella schermata.
    #--------------------------------------------------------------------------
    INPUTS = [:UP, :DOWN, :LEFT, :RIGHT, :C, :B, :A, :X, :Z, :ATK, :Y, :R, :L, :FLT, :pAU, :oPT, :MAP, :DOC]
    #--------------------------------------------------------------------------
    # * Tasti da escludere nella selezione
    #--------------------------------------------------------------------------
    EXCLUDED = [:L_AXIS_X, :L_AXIS_Y, :R_AXIS_X, :R_AXIS_Y, :LEFT_THUMB, :RIGHT_THUMB]
    #--------------------------------------------------------------------------
    # * Descrizione dei comandi
    #--------------------------------------------------------------------------
    INPUT_DESCRIPTION = {
    :UP => 'Move Up',
    :DOWN => 'Move Down',
    :LEFT => 'Move Left',
    :RIGHT => 'Move Right',
    :C => 'Action/Confirm',
    :B => 'Menu/Cancel',
    :A => 'Run',
    :X => 'Aim (Firearm)',
    :Y => 'Reload',
    :Z => 'Aim (Knife)',
    :L => 'Previous Weapon',
    :R => 'Next Weapon',
    :ATK => 'Shoot/Attack',
    :FLT => 'Toggle Flashlight',
    :pAU => 'Pause',
    :MAP => 'Open Map',
    :oPT => 'Options',
    :DOC => 'Files',
    }
    end

    #===============================================================================
    # ** ATTENZIONE: NON MODIFICARE SOTTO QUESTO SCRIPT SE NON SAI COSA TOCCARE! **
    #===============================================================================



    $imported = {} if $imported == nil
    $imported['H87-PadSettings'] = 1.0

    #===============================================================================
    # ** ControllerSettings
    #-------------------------------------------------------------------------------
    # Some core methods
    #===============================================================================
    module ControllerSettings
    #--------------------------------------------------------------------------
    # * Key scene command creation
    #--------------------------------------------------------------------------
    def self.create_keys_command
    command = {:type => :advanced, :method => :call_keys,
    :text => CONTROLLER_COMMAND, :help => CONTROLLER_HELP,
    :condition => 'Input.controller_connected?'}
    command
    end
    #--------------------------------------------------------------------------
    # * Vibration command creation
    #--------------------------------------------------------------------------
    def self.create_vibration_command
    command = {:type => :bar, :method => :update_vibration,
    :text => VIBRATION_COMMAND, :help => VIBRATION_HELP,
    :condition => 'Input.controller_connected?',
    :var => 0, :max => 100, :val_mt => :get_vibration,
    :distance => 10, :default => 100}
    command
    end
    #--------------------------------------------------------------------------
    # * Excluded keys from the configuration
    #--------------------------------------------------------------------------
    def self.excluded_commands; EXCLUDED; end
    end

    #--------------------------------------------------------------------------
    # * Insert to Options list
    #--------------------------------------------------------------------------
    H87Options.push_keys_option(ControllerSettings.create_keys_command)
    H87Options.push_keys_option(ControllerSettings.create_vibration_command)

    #===============================================================================
    # ** Vocab
    #-------------------------------------------------------------------------------
    # Scome vocabs
    #===============================================================================
    module Vocab
    #--------------------------------------------------------------------------
    # * Command Input friendly name
    #--------------------------------------------------------------------------
    def self.command_name(input)
    ControllerSettings::INPUT_DESCRIPTION[input]
    end
    #--------------------------------------------------------------------------
    # * Help text to input
    #--------------------------------------------------------------------------
    def self.input_window_text
    ControllerSettings::HELP_INPUT
    end
    #--------------------------------------------------------------------------
    # * Help text to key config
    #--------------------------------------------------------------------------
    def self.key_config_help
    ControllerSettings::HELP_KEY
    end
    end

    #===============================================================================
    # ** Option
    #-------------------------------------------------------------------------------
    # Custom game pad methods
    #===============================================================================
    class Option
    #--------------------------------------------------------------------------
    # * Calls the key configuration scene
    #--------------------------------------------------------------------------
    def call_keys
    Sound.play_ok
    SceneManager.call(Scene_KeyConfig)
    end
    #--------------------------------------------------------------------------
    # * Updates the user vibration (and vibrate)
    #--------------------------------------------------------------------------
    def update_vibration(value)
    $game_system.set_vibration_rate(value)
    Input.vibrate(100, 100, 20) if SceneManager.scene_is?(Scene_Options)
    end
    #--------------------------------------------------------------------------
    # * Gets the user configured vibration
    #--------------------------------------------------------------------------
    def get_vibration
    $game_system.vibration_rate
    end
    end

    #===============================================================================
    # ** Scene_Options
    #-------------------------------------------------------------------------------
    # Controller check process
    #===============================================================================
    class Scene_Options < Scene_MenuBase
    alias h87contr_settings_update update unless $@
    alias h87contr_settings_start start unless $@
    #--------------------------------------------------------------------------
    # * Start
    #--------------------------------------------------------------------------
    def start
    h87contr_settings_start
    @connected = Input.controller_connected?
    end
    #--------------------------------------------------------------------------
    # * Update process
    #--------------------------------------------------------------------------
    def update
    h87contr_settings_update
    update_controller_connection
    end
    #--------------------------------------------------------------------------
    # * Checks if the controller is connected/disconnected during this
    # scene, and refresh the window
    #--------------------------------------------------------------------------
    def update_controller_connection
    if @connected != Input.controller_connected?
    @connected = Input.controller_connected?
    @option_window.refresh
    end
    end
    end

    #===============================================================================
    # ** Scene_KeyConfig
    #-------------------------------------------------------------------------------
    # Keys configuration scene
    #===============================================================================
    class Scene_KeyConfig < Scene_MenuBase
    #--------------------------------------------------------------------------
    # * Start
    #--------------------------------------------------------------------------
    def start
    super
    create_help_window
    create_keys_window
    create_input_window
    end
    #--------------------------------------------------------------------------
    # * Help window creation
    #--------------------------------------------------------------------------
    def create_help_window
    super
    @help_window.set_text(Vocab.key_config_help)
    end
    #--------------------------------------------------------------------------
    # * Keys list window creation
    #--------------------------------------------------------------------------
    def create_keys_window
    y = @help_window.height
    @keys_window = Window_PadKeys.new(0, y, Graphics.width, Graphics.height - y)
    @keys_window.set_handler:)ok, method:)check_command))
    @keys_window.set_handler:)cancel, method:)return_scene))
    @keys_window.set_handler:)reset, method:)reset_keys))
    @keys_window.activate
    @keys_window.index = 0
    end
    #--------------------------------------------------------------------------
    # * Input window creation
    #--------------------------------------------------------------------------
    def create_input_window
    @input_window = Window_Input_Key.new(method:)check_selected_key))
    end
    #--------------------------------------------------------------------------
    # * Checks the selected command
    #--------------------------------------------------------------------------
    def check_command
    if @keys_window.item == :reset
    reset_keys
    else
    open_input_window
    end
    end
    #--------------------------------------------------------------------------
    # * Reset all custom keymap
    #--------------------------------------------------------------------------
    def reset_keys
    $game_system.create_default_key_set
    @keys_window.refresh
    @keys_window.activate
    end
    #--------------------------------------------------------------------------
    # * Opens the key input window
    #--------------------------------------------------------------------------
    def open_input_window
    @input_window.open
    end
    #--------------------------------------------------------------------------
    # * Checks what the user chosen. If the controller is accidentally
    # disconnected, returns to the previous scene.
    #--------------------------------------------------------------------------
    def check_selected_key
    key = @input_window.selected_key
    if key == 0
    return_scene
    else
    $game_system.xinput_key_set[@keys_window.item] = key
    @keys_window.refresh
    @keys_window.activate
    end
    end
    end

    #===============================================================================
    # ** Window_PadKeys
    #-------------------------------------------------------------------------------
    # This window contains the editable commands
    #===============================================================================
    class Window_PadKeys < Window_Selectable
    #--------------------------------------------------------------------------
    # * Object initialization
    #--------------------------------------------------------------------------
    def initialize(x, y, width, height)
    super
    @data = ControllerSettings::INPUTS + [:reset]
    refresh
    end
    #--------------------------------------------------------------------------
    # * Item max
    #--------------------------------------------------------------------------
    def item_max; @data ? @data.size : 0; end
    #--------------------------------------------------------------------------
    # * Item (as Symbol)
    #--------------------------------------------------------------------------
    def item; @data[index]; end
    #--------------------------------------------------------------------------
    # * Draw item
    #--------------------------------------------------------------------------
    def draw_item(index)
    key = @data[index]
    if key
    if key != :reset
    draw_key_command(key, index)
    else
    draw_reset_command(index)
    end
    end
    end
    #--------------------------------------------------------------------------
    # * Draws a command with friendly name and controller input
    #--------------------------------------------------------------------------
    def draw_key_command(key, index)
    rect = item_rect(index)
    rect.width -= 4
    change_color(normal_color)
    draw_text(rect.x, rect.y, rect.width/2, line_height, Vocab.command_name(key))
    if $game_system.xinput_key_set[key]
    change_color(crisis_color)
    draw_text(rect.width/2, rect.y, rect.width/2, line_height, Vocab.gamepad_key($game_system.xinput_key_set[key]), 1)
    else
    change_color(knockout_color)
    draw_text(rect.width/2, rect.y, rect.width/2, line_height, ControllerSettings::NO_KEY_SET, 1)
    end
    end
    #--------------------------------------------------------------------------
    # * Draws the reset command
    #--------------------------------------------------------------------------
    def draw_reset_command(index)
    rect = item_rect(index)
    rect.width -= 4
    change_color(normal_color)
    draw_text(rect, ControllerSettings::RESET_COMMAND, 1)
    end
    #--------------------------------------------------------------------------
    # * Handling Processing for OK and Cancel Etc.
    #--------------------------------------------------------------------------
    def process_handling
    return unless open? && active
    process_reset if handle?:)reset) && Input.trigger?:)CTRL)
    super
    end
    #--------------------------------------------------------------------------
    # * CTRL key called
    #--------------------------------------------------------------------------
    def process_reset
    call_reset_handler
    end
    #--------------------------------------------------------------------------
    # * Calls the reset process
    #--------------------------------------------------------------------------
    def call_reset_handler
    call_handler:)reset)
    end
    end

    #===============================================================================
    # ** Window_Input_Key
    #-------------------------------------------------------------------------------
    # This window awaits the user input with the game pad
    #===============================================================================
    class Window_Input_Key < Window_Base
    attr_reader :selected_key
    #--------------------------------------------------------------------------
    # * Object initialization
    # @param [Method] method
    #--------------------------------------------------------------------------
    def initialize(method)
    width = calc_width
    height = fitting_height(2)
    @closing_method = method
    @selected_key = nil
    super(0, 0, width, height)
    center_window
    self.openness = 0
    self.back_opacity = 255
    refresh
    end
    #--------------------------------------------------------------------------
    # * Refreshj
    #--------------------------------------------------------------------------
    def refresh
    contents.clear
    draw_text(0, 0, contents_width, contents_height, Vocab.input_window_text, 1)
    end
    #--------------------------------------------------------------------------
    # * Window opening with input check
    #--------------------------------------------------------------------------
    def open
    @old_packet = XInput.get_state.packet_number
    super
    end
    #--------------------------------------------------------------------------
    # * Update process with key scanning
    #--------------------------------------------------------------------------
    def update
    super
    update_key_scan
    end
    #--------------------------------------------------------------------------
    # * Detects the first user input. If the controller is disconnected,
    # closes the window.
    #--------------------------------------------------------------------------
    def update_key_scan
    return unless open?
    keymap = XInput.get_key_state.keys - ControllerSettings.excluded_commands
    unless Input.controller_connected?
    @selected_key = 0
    close
    return
    end
    if keymap.any? && XInput.get_state.packet_number != @old_packet
    @selected_key = keymap.first
    close
    end
    end
    #--------------------------------------------------------------------------
    # * Centra la finestra nel campo
    #--------------------------------------------------------------------------
    def center_window
    self.x = (Graphics.width - self.width)/2
    self.y = (Graphics.height - self.height)/2
    end
    #--------------------------------------------------------------------------
    # * Closes the window calling the refresh method
    #--------------------------------------------------------------------------
    def close
    super
    @closing_method.call
    end
    #--------------------------------------------------------------------------
    # * Gets the window width
    #--------------------------------------------------------------------------
    def calc_width; Graphics.width; end
    end

    There is another script that actually allows controller to work. It's probably not related to the issue because it's just a text formatting problem, the gamepad itself actually works; I wanted to post it but it's too long and the forum won't let me, so maybe I'll post it separately if it's needed.
  5. Sixth
    #5 Source
    Yeah, just like I suspected:
    Code:
    draw_text(rect.width/2, rect.y, rect.width/2, line_height, Vocab.gamepad_key($game_system.xinput_key_set[key]), 1)
    As you can see, the key names are drawn by draw_text, and not draw_text_ex, hence you can't use message codes in their name settings.
    Rewriting it to use draw_text_ex instead will allow you to use message codes, but you will lose the centered text alignment, it will be left aligned instead, unless someone adds an alignment option for this drawing method too.
    If you are fine with that, you can replace that line with this one:
    Code:
    draw_text_ex(rect.width/2, rect.y, Vocab.gamepad_key($game_system.xinput_key_set[key]))

    But for future reference, please use the CODE tag for block of codes in your posts, otherwise it will end up just like the one you posted now, full with smileys and without proper formatting. The CODE tag is right under the SPOILER tag in the post editor, so it should be easy enough to find.
  6. Otto
    #6 Source
    Sixth said:
    But for future reference, please use the CODE tag for block of codes in your posts, otherwise it will end up just like the one you posted now, full with smileys and without proper formatting. The CODE tag is right under the SPOILER tag in the post editor, so it should be easy enough to find.

    aw jeeze, I knew I forgot something along the way lol
    My bad, I haven't posted in a wile and for some reason I completely forgot about the CODE tag :(

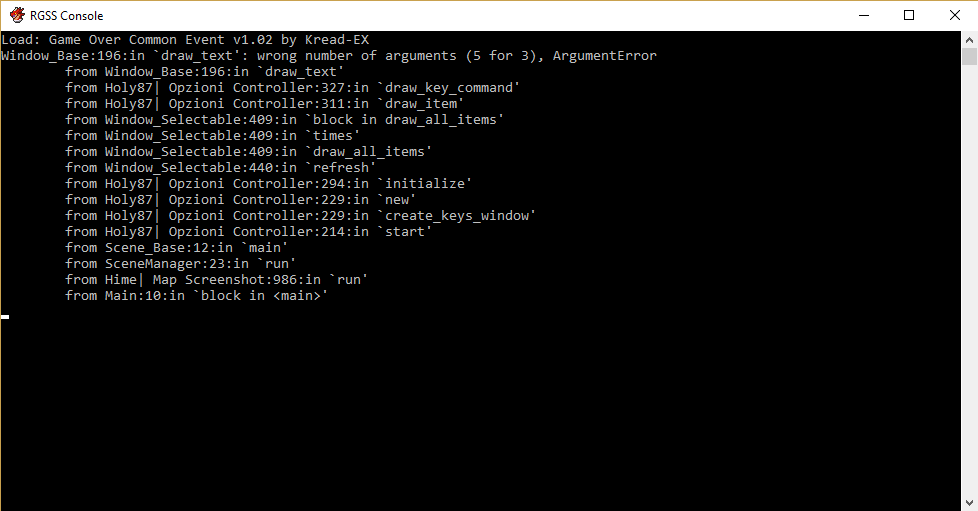

    Anyway, I did as you said and now I'm getting this error wherever I open up the menu:

  7. Sixth
    #7 Source
    That's because I forgot to replace the method name to draw_text_ex, sorry. >.>
    I edited my previous reply, fixed the code to be used, try it with that.
  8. Otto
    #8 Source
    Sixth said:
    That's because I forgot to replace the method name to draw_text_ex, sorry. >.>

    lol that happens :p

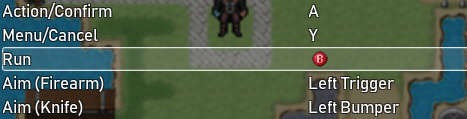

    Anyway, It worked!


    It's also aligned fairly decently, so I may leave it like that when I'll put other icons in
