Warning: This plugin takes an unconventional approach to adding filtering effects to the entire screen. It may cause lag on a slow device.
Introduction
This is not a "full" plugin. Just a simple plugin I wrote a while back for my game, but I ended up not using it because it doesn't fit the type of the game.
Just in case somebody needs it, I decided to share it here.

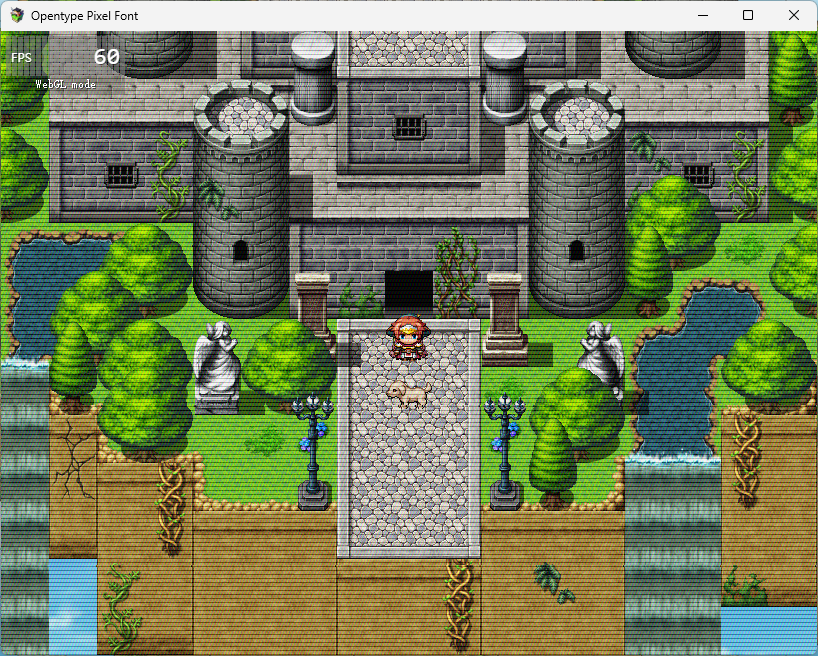

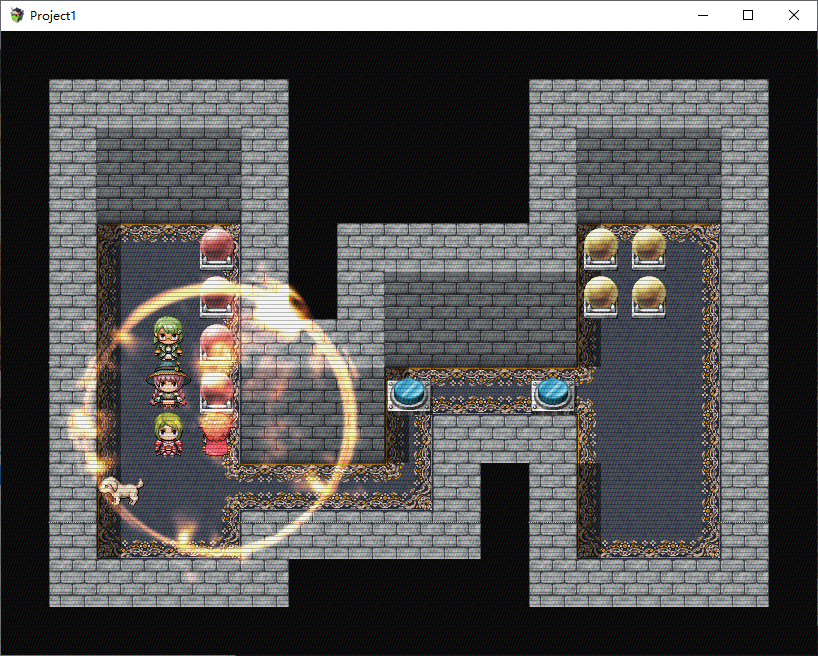

It adds a crt monitor effect to the WHOLE screen, including the video layer and loading text.
Terms
You can use it in any project, credit is not required but appreciated.
How to Use
Save the code as a js file and put it in plugins directory. There are no parameters for this plugin, just turn it on in the editor.
It adds a Graphics. _crtFilter property. When it's true, the filter effect is on. The property is true by default. You can edit it or change it in game if you want.
JavaScript:
/*
Create a filter canvas above upper canvas (the canvas
that displays the loading screen), the filter canvas
is used to copy contents from the game canvas, the video,
and the upper canvas, so you can change the pixels later.
*/
Graphics._createUpperCanvas = function () {
this._upperCanvas = document.createElement('canvas');
this._upperCanvas.id = 'UpperCanvas';
this._filterCanvas = document.createElement('canvas');
this._filterCanvas.id = 'FilterCanvas';
this._updateUpperCanvas();
document.body.appendChild(this._upperCanvas);
document.body.appendChild(this._filterCanvas);
this._crtFilter = true;
};
Graphics._updateUpperCanvas = function () {
this._upperCanvas.width = this._filterCanvas.width = this._width;
this._upperCanvas.height = this._filterCanvas.height = this._height;
this._upperCanvas.style.zIndex = 3;
this._filterCanvas.style.zIndex = 4;
this._centerElement(this._upperCanvas);
this._centerElement(this._filterCanvas);
};
/*
crt monitor effect
*/
var rgbData = null;
function crt(gfx, ctx) {
var shift = gfx.frameCount;
var canvas = ctx.canvas;
var imageData = ctx.getImageData(0, 0, canvas.width, canvas.height);
var data = imageData.data;
var lw = canvas.width * 4;
var s = Math.round(shift / 20);
var sl = false;
if (!rgbData) {
rgbData = new ImageData(canvas.width, canvas.height).data;
for (let i = 0; i < rgbData.length; i += 4) {
var y = Math.floor(i / lw);
var x = Math.floor((i % lw) / 4);
var r = 128;
var g = 128;
var b = 128;
x = (x + Math.floor(y / 3)) % 3;
if (x == 0) { r += 32; g -= 16; b -= 16; }
else if (x == 1) { g += 32; r -= 16; b -= 16; }
else if (x == 2) { b += 32; r -= 16; g -= 16; }
rgbData[i] = r;
rgbData[i + 1] = g;
rgbData[i + 2] = b;
}
}
var cw = canvas.width, ch = canvas.height, i = 0, dl = data.length;
for (var y = 0; y < ch; y++) {
var ds = 0;
var ss = (y + shift) % 160;
if (ss == 0) ds = lw * 2 + 4;
else if (ss == 1) ds = lw + 4;
var ys = ((y + s) % 4) ? 0 : 64;
for (var x = 0; x < cw; x++, i += 4) {
var is = (i + ds) % dl;
data[i] = data[is] + rgbData[i] - 128 - ys;
data[i + 1] = data[is + 1] + rgbData[i + 1] - 128 - ys;
data[i + 2] = data[is + 2] + rgbData[i + 2] - 128 - ys;
}
}
ctx.putImageData(imageData, 0, 0);
}
/*
Draw everythign on this canvas and change pixels
*/
Graphics.renderFilterCanvas = function () {
this._filterCanvas.style.opacity = 1;
var ctx = this._filterCanvas.getContext('2d');
ctx.save();
ctx.globalAlpha = 1;
ctx.drawImage(this._canvas, 0, 0, this.width, this.height);
if (this.isVideoPlaying()) {
ctx.drawImage(this._video, 0, 0, this.width, this.height);
}
if (this._upperCanvas.style.opacity > 0) {
ctx.drawImage(this._upperCanvas, 0, 0, this.width, this.height);
}
ctx.restore();
crt(this, ctx);
}
const g_paintUpperCanvas = Graphics._paintUpperCanvas;
Graphics._paintUpperCanvas = function () {
g_paintUpperCanvas.call(this);
//Just in case you need to display the loading text
if (this._crtFilter) {
this.renderFilterCanvas();
} else {
this._filterCanvas.style.opacity = 0;
}
};
const g_render = Graphics.render;
Graphics.render = function (stage) {
g_render.call(this, stage);
if (this._crtFilter) {
if (this._rendered) {
this.renderFilterCanvas();
}
} else {
this._filterCanvas.style.opacity = 0;
}
};
